Recliner Cover Replacement

  1. Remove the cover (A).

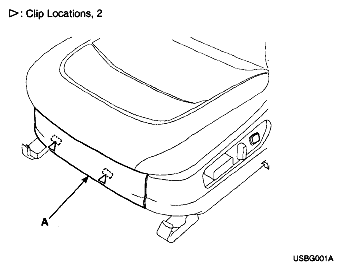

    Fig 1: Identifying Cover
    G04881218Courtesy of HYUNDAI MOTOR CO.
  2. Loosen the recliner mounting screw and clip, then remove the recliner cover (A).

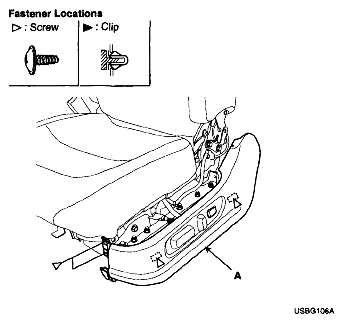

    Fig 2: Identifying Recliner Cover
    G04881219Courtesy of HYUNDAI MOTOR CO.
  3. Remove the front seat buckle.
  4. Loosen the mounting screw, then remove the cover (A).

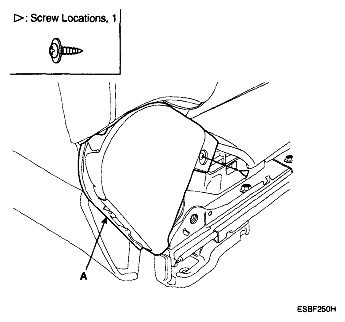

    Fig 3: Identifying Cover
    G04881220Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
