Out Side Handle Base Replacement

Remove the following parts.
- Rear door trim (See REPLACEMENT ).
- Glass (See GLASS REPLACEMENT ).
- Out side handle (See POWER WINDOW MOTOR REPLACEMENT ).
Remove the pad (A).

Fig 1: Identifying Pad
Courtesy of HYUNDAI MOTOR CO.
Loosen the rear channel bolt and nut.

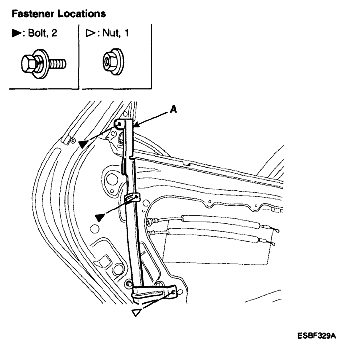

Remove the channel (A).

Fig 2: Identifying Channel
Courtesy of HYUNDAI MOTOR CO.
Remove the module assembly (See MODULE ASSEMBLY REPLACEMENT ).
Remove the latch assembly (See LATCH ASSEMBLY REPLACEMENT ).
Remove the support bracket (A).

Fig 3: Identifying Support Bracket
Courtesy of HYUNDAI MOTOR CO.
After disconnecting the cable (A), remove the outside handle base (B).

Fig 4: Identifying Cable And Outside Handle Base
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
