Glass Replacement

NOTE:

Remove the rear door trim (See REPLACEMENT ).
Loosen the screws, then remove the delta molding (A).

Fig 1: Identifying Delta Molding
Courtesy of HYUNDAI MOTOR CO.
Release the rear channel mounting bolt and nut.

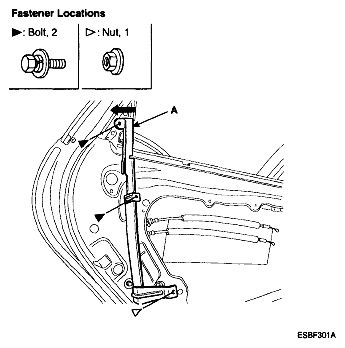

Fig 2: Identifying Rear Channel Mounting Bolt And Nut
Courtesy of HYUNDAI MOTOR CO.
CAUTION:
- Take care not to drop to glass and scratch the glass surface.
Carefully move the glass (A) until you can see the bolts, then loosen them. Separate the glass from the glass run and carefully pull the glass out through the window slot.

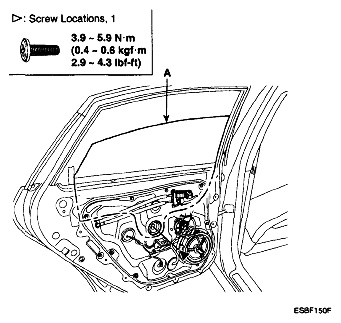

Fig 3: Moving Glass
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Roll the glass up down to see if it move freely without binding.
- Adjust the position of the glass as necessary
