Power Window Motor Replacement

Remove the following items.
- Door trim(See REAR DOOR TRIM REPLACEMENT ).
- Door trim seal.
- Glass(See GLASS REPLACEMENT ).
- Door regulator(See DOOR REGULATOR REPLACEMENT ).
After loosening the power window motor mounting nuts, remove the power window motor (A).

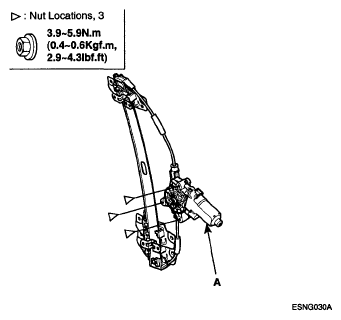

Fig 1: Power Window Motor With Torque Specification
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Roll the glass up down to see if it move freely without binding.
- If the door trim seal is damaged, it must be replaced.
