Glass Replacement
- Remove the rear door trim(See REAR DOOR TRIM REPLACEMENT
).
- Remove the door trim seal.

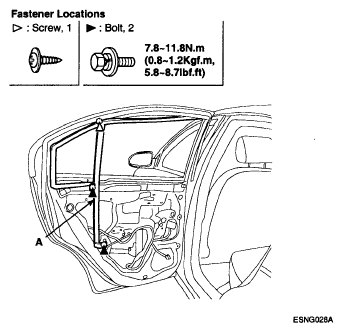

- After loosening the fixed glass mounting screw and bolts, remove the glass(A).
Courtesy of HYUNDAI MOTOR CO.

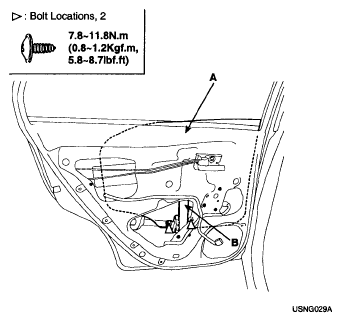

- Carefully move the glass (A) until you can see the bolts, then loosen them. Separate the glass from the glass run and carefully pull the glass out through the window slot (B).
Courtesy of HYUNDAI MOTOR CO.
- Installation is the reverse of removal.
CAUTION:
- Take care not to drop to glass and scratch the Glass surface.
NOTE:
- If the door trim seal is damaged, it must be replaced.
