Hood Latch Release Cable Replacement

Remove the following items.
- Hood latch(See HOOD LATCH REPLACEMENT ).
- Hood latch release handle(See HOOD RELEASE HANDLE REPLACEMENT ).
- Wheel guard (See FRONT MUD GUARD AND WHEEL GUARD ).
Remove the clip, latch cable(A) and then remove the release cable(B).
NOTE:
- Make sure the hood latch cable is connected.

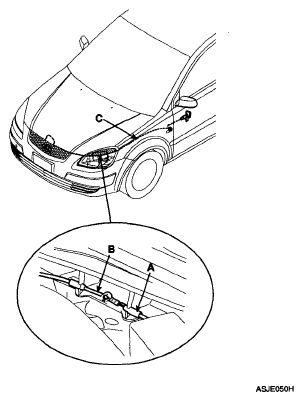

  Fig 1: Identifying Latch Cable & Cable
  Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the hood latch cable is connected properly.
- Replace any damaged clips.
