Hood Latch Replacement

  1. Remove the battery and battery tray.
  2. Pull the arrow direction after loosen the radiator mounting bolts then remove the hood latch (A).

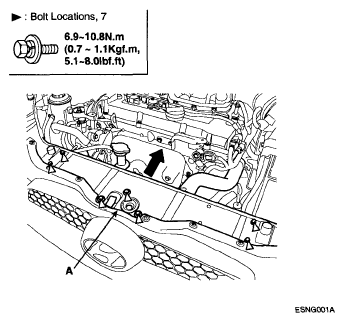

    Fig 1: Hood Latch With Torque Specifications
    G04802672Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
    NOTE:
    • Make sure the hood latch cable is connected properly.
    • Make sure the hood locks securely.
