Circuit Diagram
Circuit Diagram

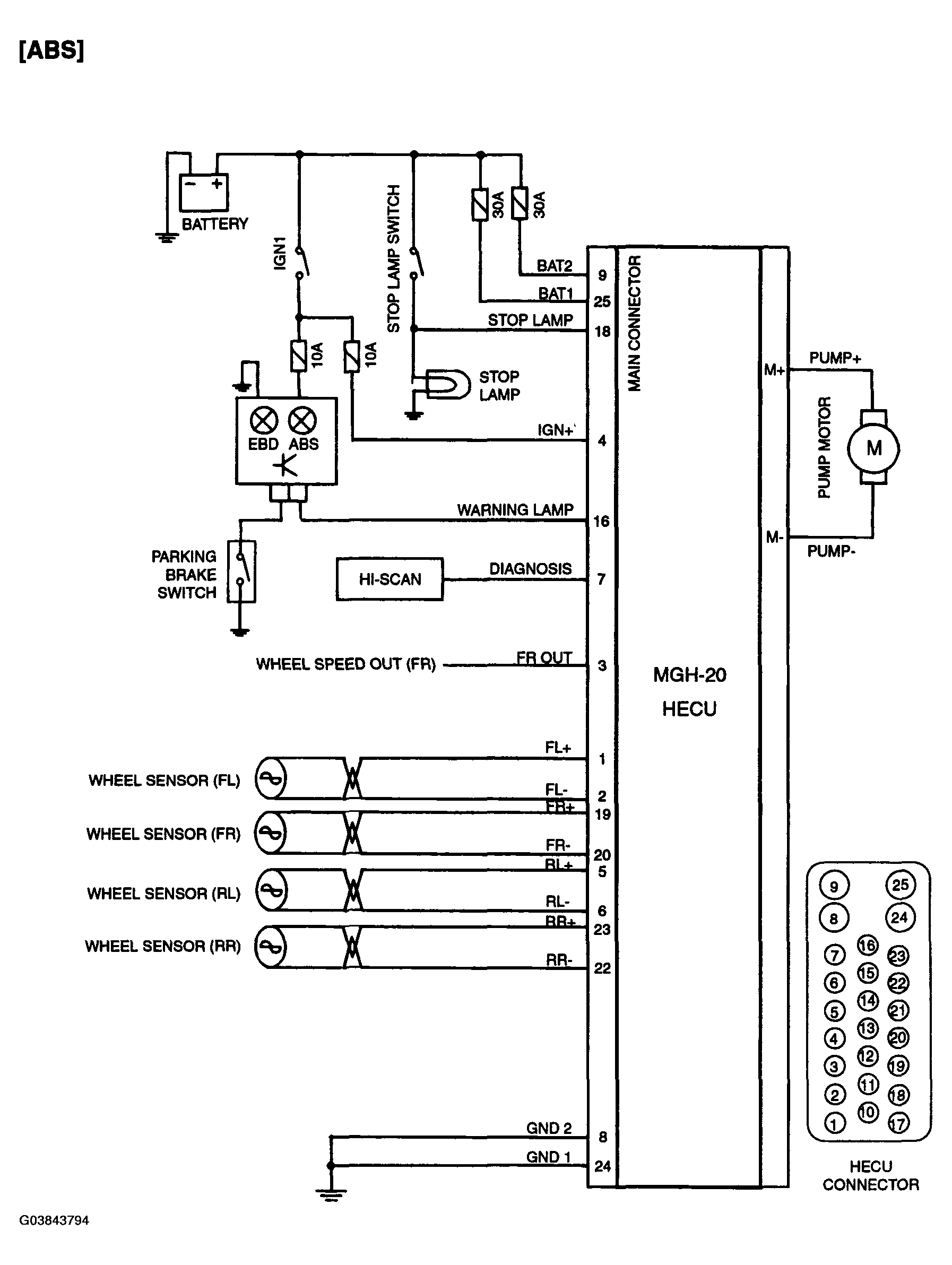

Fig 1: Circuit Diagram - ABS
Courtesy of HYUNDAI MOTOR CO.

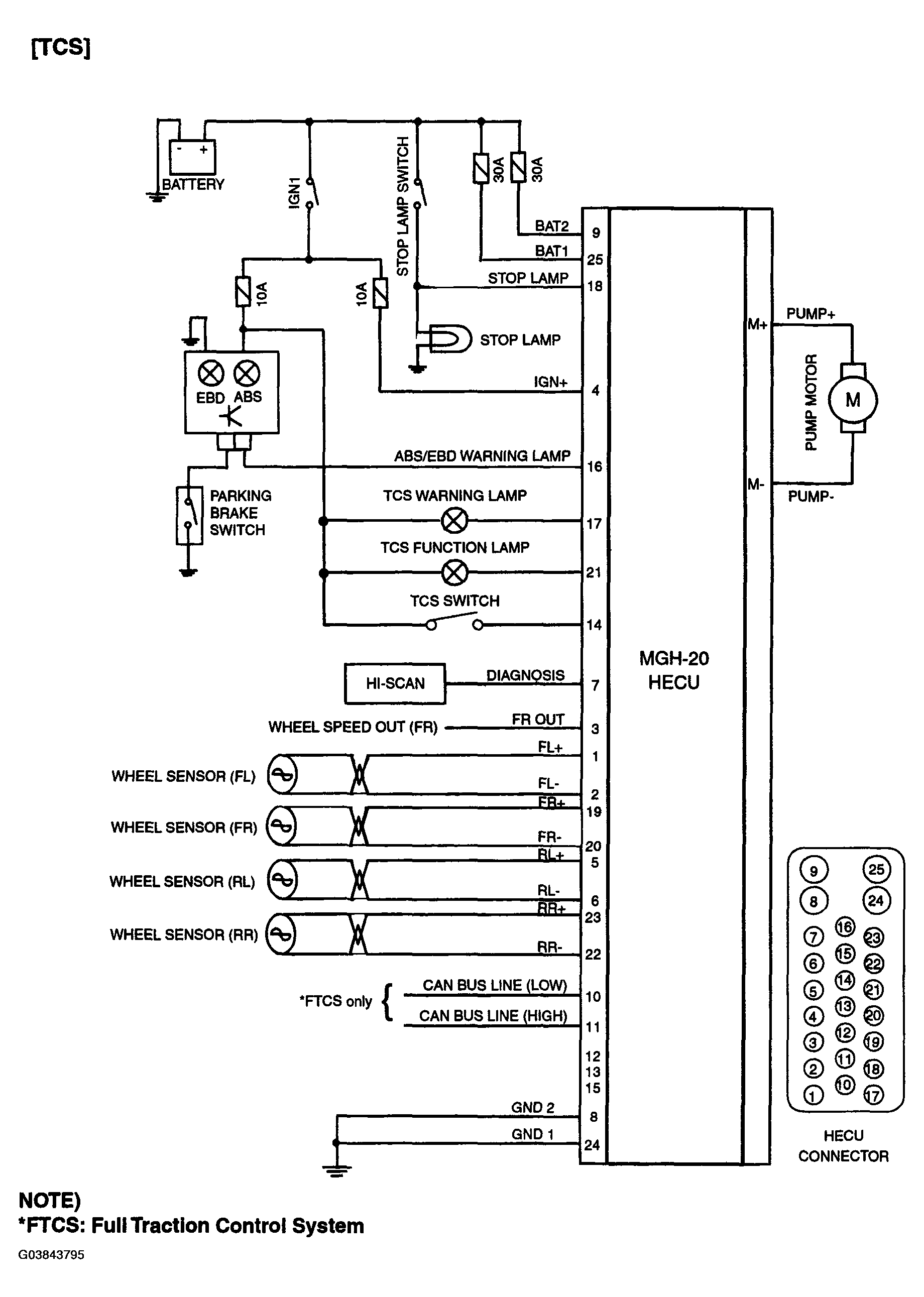

Fig 2: Circuit Diagram - TCS
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
