Signal Circuit Inspection

Ignition "ON" & Engine "OFF".
Disconnect the "INPUT SPEED SENSOR" connector.
Measure voltage between terminal "2" of the INPUT SPEED SENSOR harness connector and chassis ground.
Specification: Approx. 5V

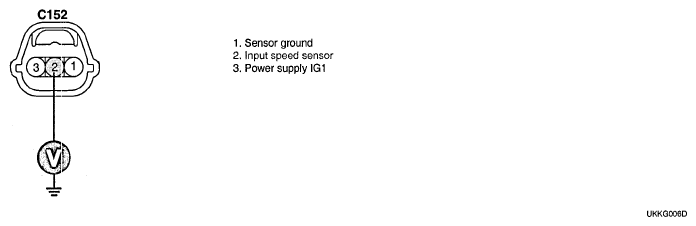

Fig 1: Measuring Voltage Between Terminal 2 Of Input Speed Sensor Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is voltage within specifications?
Yes:
- Go to "POWER CIRCUIT INSPECTION " procedure.
No:
- Check for open or short in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- If signal circuit in harness is OK, Go to Step 2.
