Front Side Door Window Channel Replacement

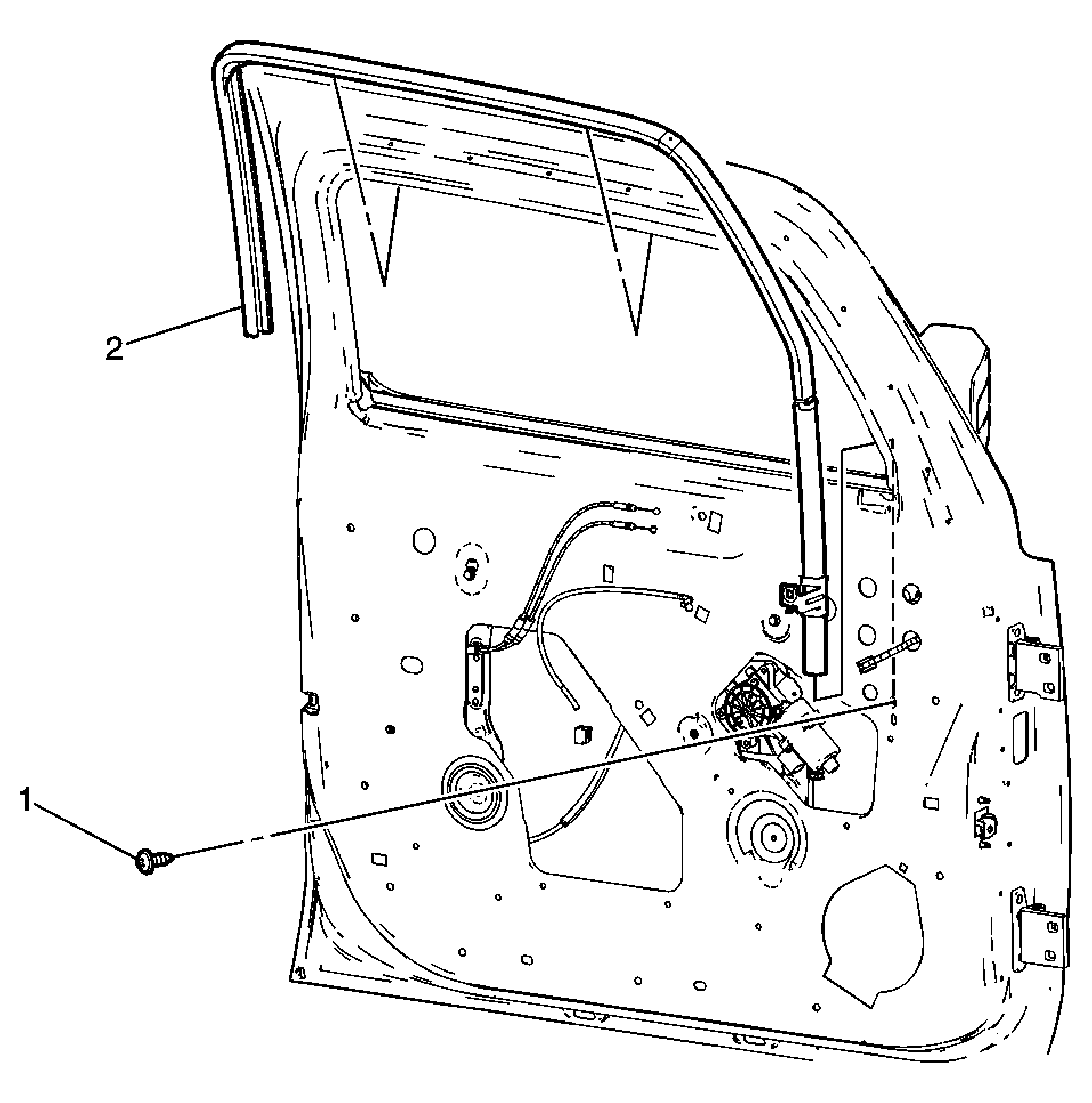

Fig 1: Window Weatherstrip Run Channel Assembly Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement . Remove the front side door window. Refer to Front Side Door Window Replacement .
1	Front Side Door Window Weatherstrip Run Channel Bolt CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Front Door Window Weatherstrip Run Channel Tip: Pull the weatherstrip run channel down from the window frame then up to remove it from the door.

Callout

Component Name

Preliminary Procedures

Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
Remove the front side door window. Refer to Front Side Door Window Replacement .

Front Side Door Window Weatherstrip Run Channel Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Front Door Window Weatherstrip Run Channel
Tip: Pull the weatherstrip run channel down from the window frame then up to remove it from the door.
