Front Side Door Window Replacement

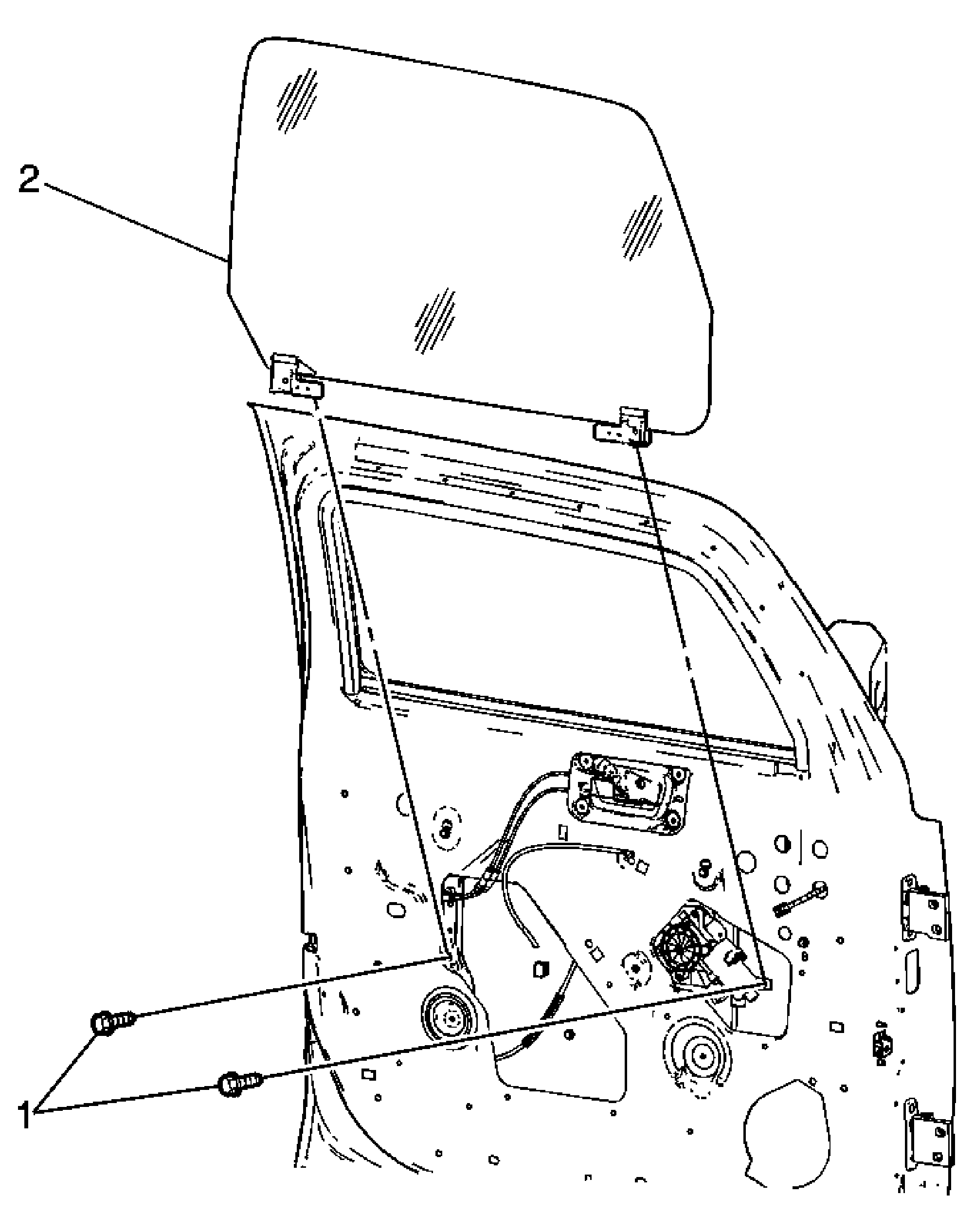

Fig 1: Window Replacement - Front Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Position the window about half way down in the door. Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement . Remove the side door window outer sealing strip. Refer to Front Side Door Window Outer Sealing Strip Replacement
1	Front Side Door Window to Regulator Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tip: Tilt the window inward and remove through the outside of the side door window opening. Tighten: 10 N.m (89 lb in)
2	Front Door Body Side Window

Callout

Component Name

Preliminary Procedures

Position the window about half way down in the door.
Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
Remove the side door window outer sealing strip. Refer to Front Side Door Window Outer Sealing Strip Replacement

Front Side Door Window to Regulator Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tip: Tilt the window inward and remove through the outside of the side door window opening.

Tighten: 10 N.m (89 lb in)

Front Door Body Side Window
