Windshield Washer Hose Replacement

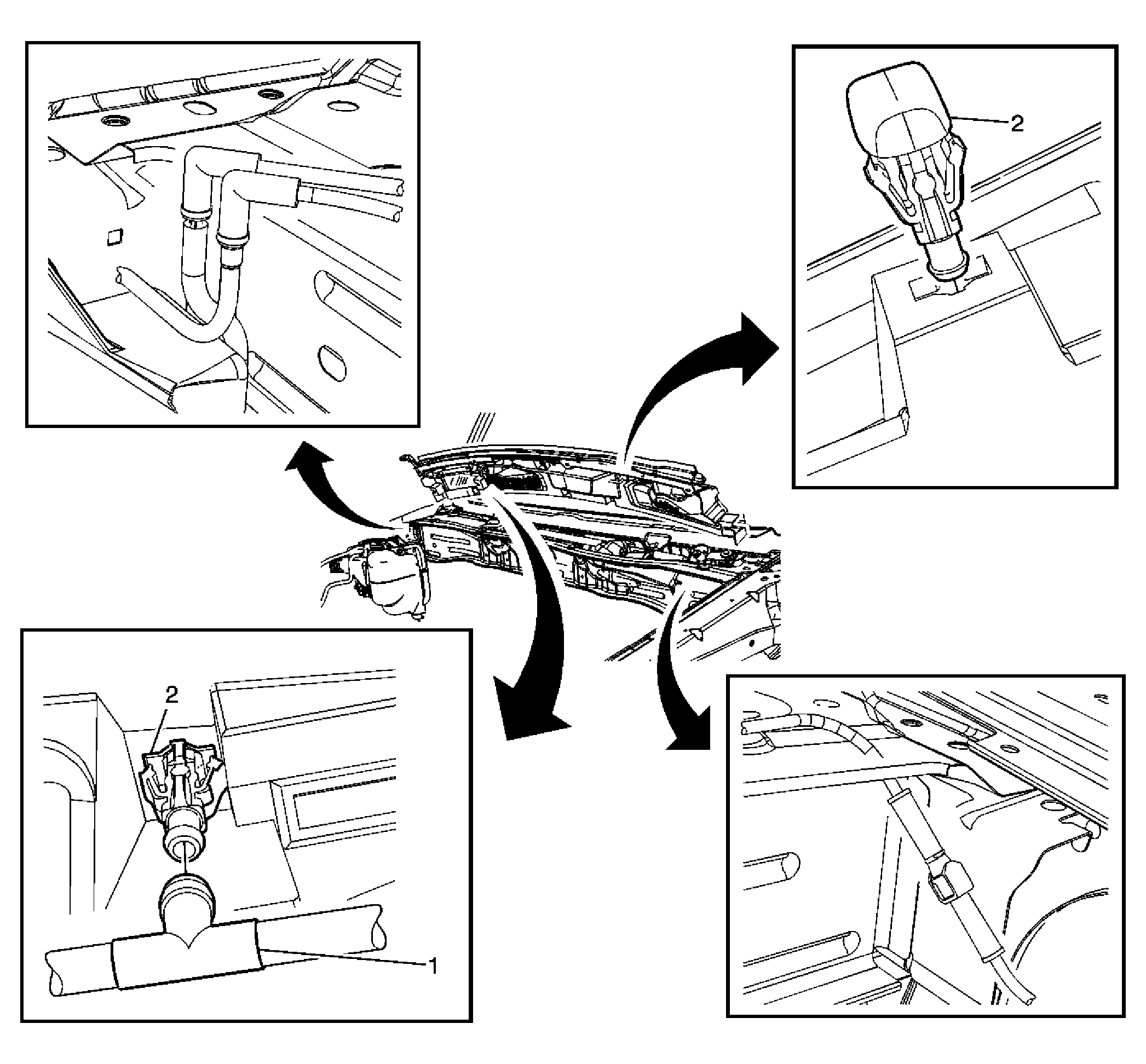

Fig 1: Windshield Washer Hose Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the front wiper arms. Refer to Windshield Wiper Arm Replacement . Remove the lower air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Lower) or Air Inlet Grille Panel Replacement (Upper) .
1	Hose, Windshield Washer (Qty: 1) Tip: Remove the hose T-connection and elbow from the washer nozzles. Remove the hose from the lower air inlet grille panel retainers.
2	Nozzle, Windshield Washer (Qty: 2) Tip: Squeeze the washer nozzle tabs and push the nozzle outward from the lower air inlet grille panel.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Hose, Windshield Washer (Qty: 1)
Tip:

Nozzle, Windshield Washer (Qty: 2)
Tip: Squeeze the washer nozzle tabs and push the nozzle outward from the lower air inlet grille panel.
