Windshield Wiper Arm Replacement

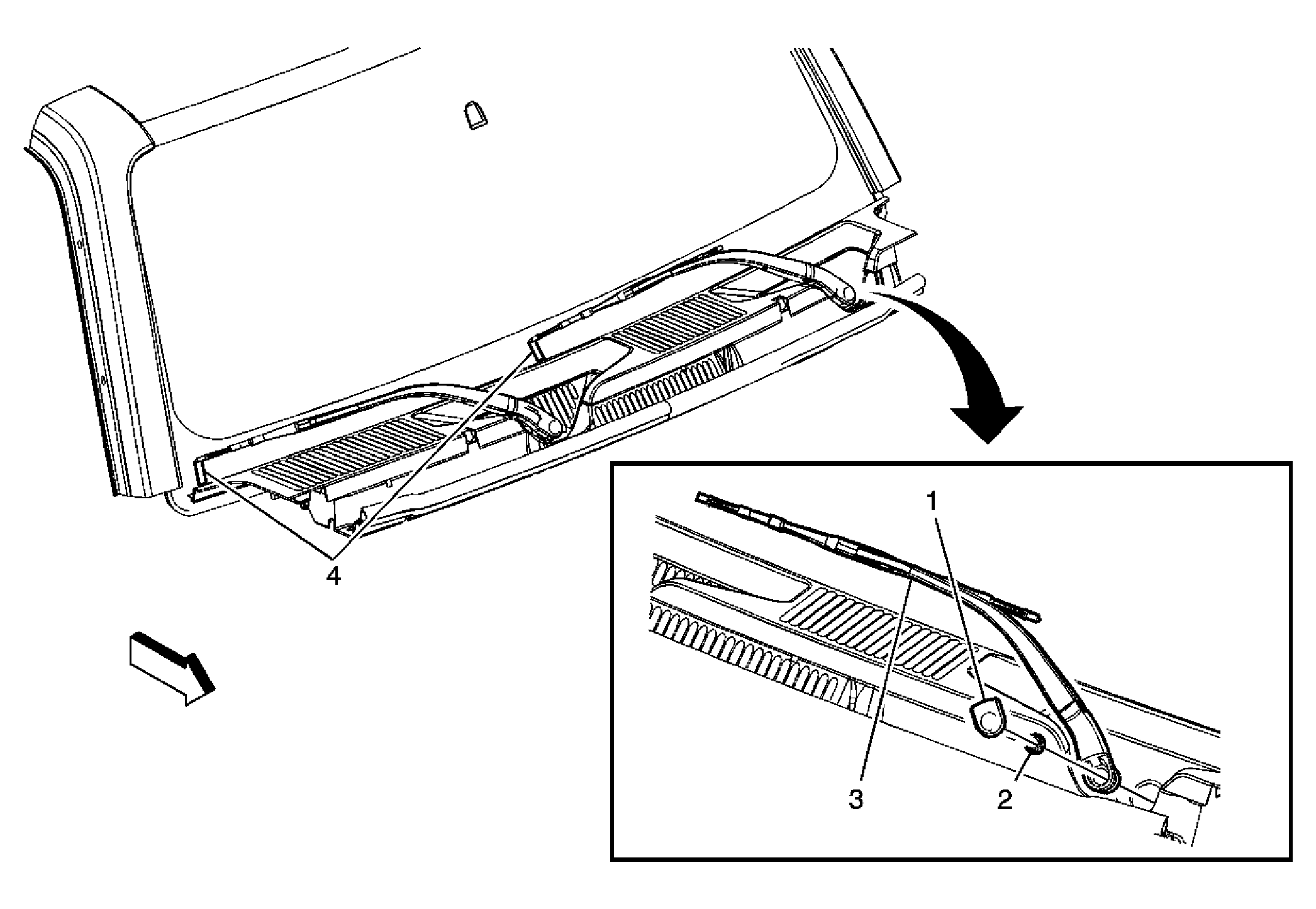

Fig 1: Wiper Arm Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Arm Cap
2	Windshield Wiper Arm Shaft Nut NOTE: Refer to Fastener Notice . Tighten: 21 N.m (15 lb ft)
3	Driver Side Windshield Washer Arm Tip: Passenger side wiper arm similar.
4	Windshield Target Mark Procedure: Hold wiper arm blade tip in position to rectangular target boxes in windshield blackout area while tightening windshield wiper arm nut.
