Water Deflector Replacement - Rear Door
Water Deflector Replacement - Rear Door
| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the interior trim panel. Refer to Trim Panel Replacement - Side Rear Door . |
|

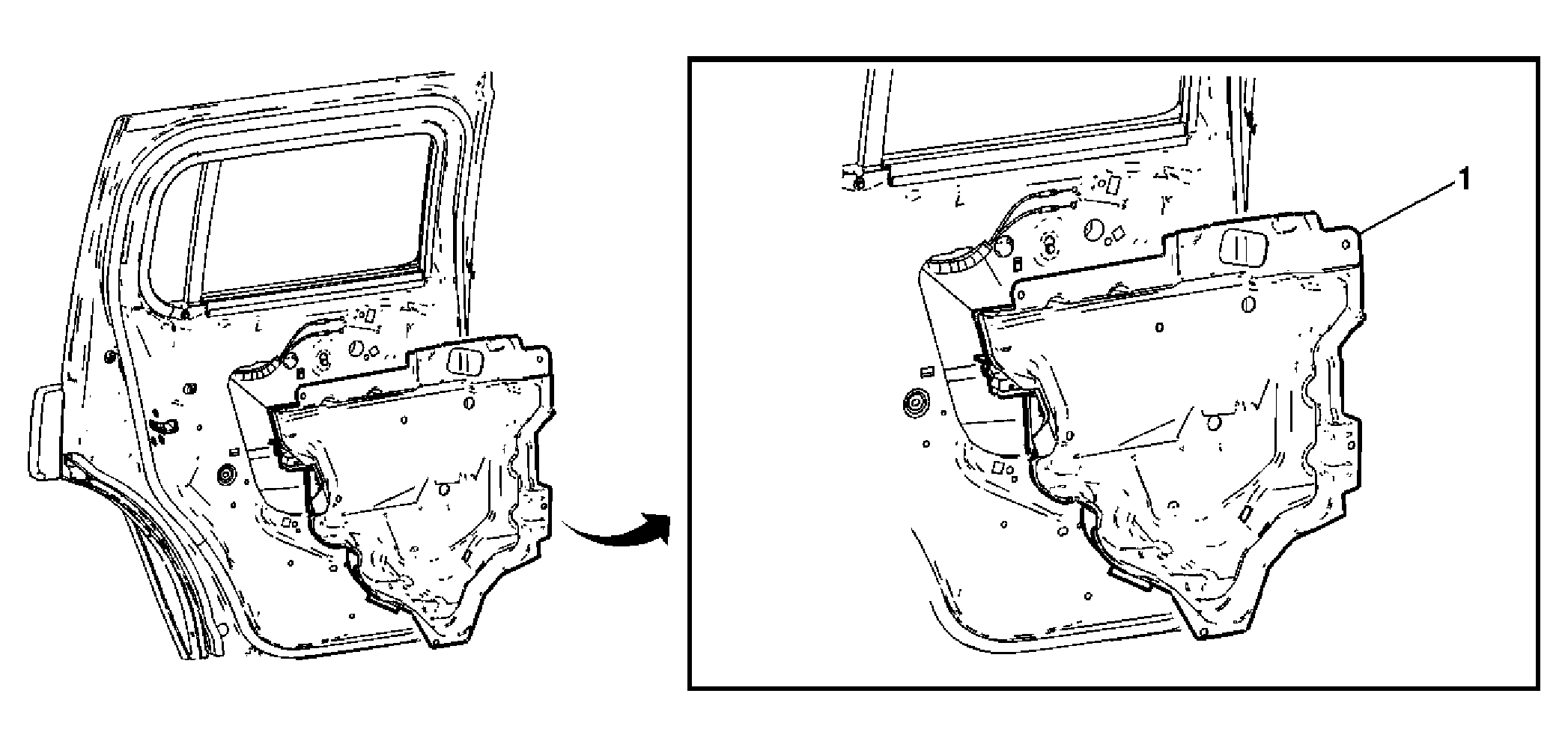

| 1 | Deflector Assembly, Rear Side Door Water Tip: Carefully pull the water deflector away from the door while routing any wiring or connectors through the water deflector. |
