Trim Panel Replacement - Side Rear Door
Trim Panel Replacement - Side Rear Door

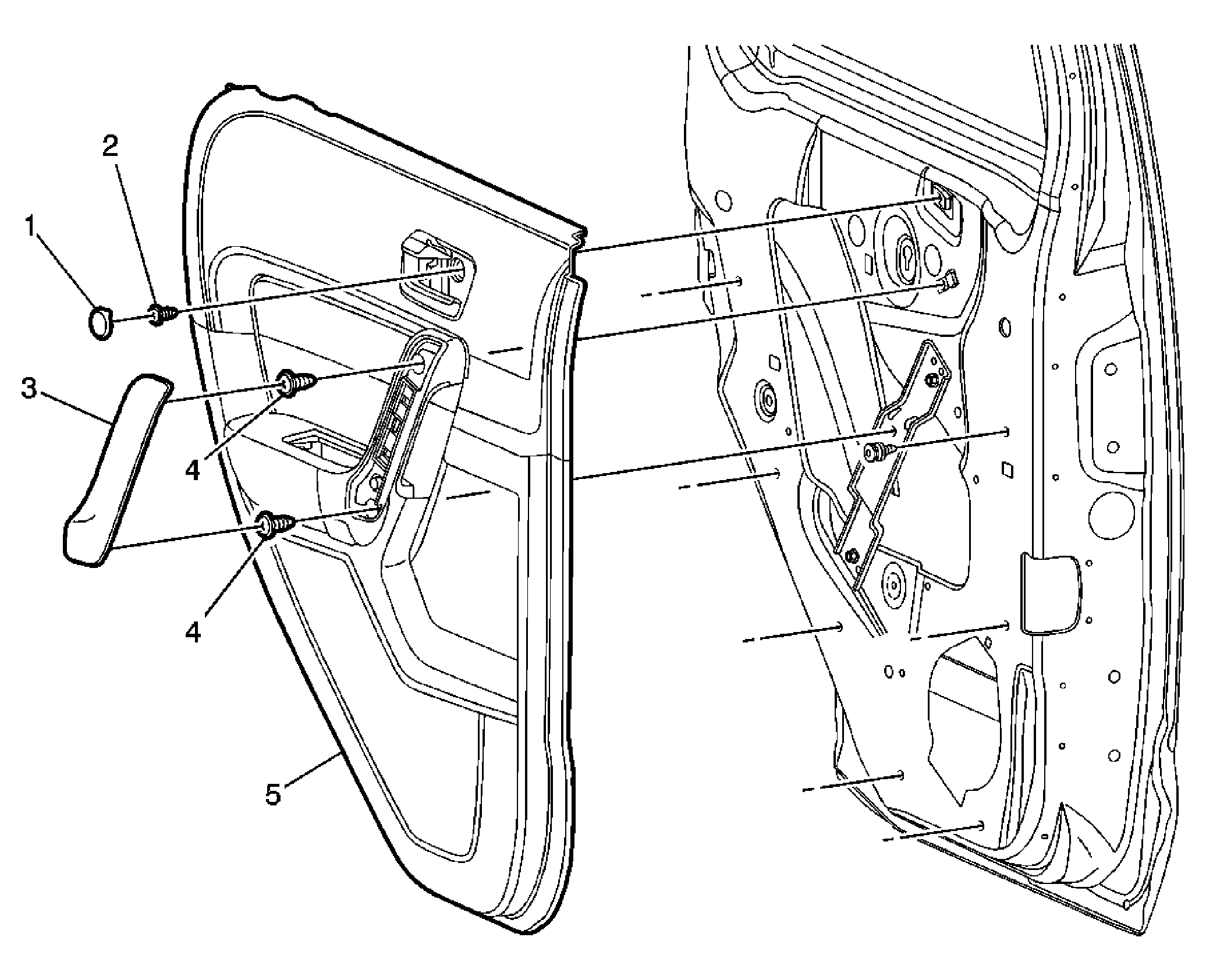

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the door window switches. Refer to Power Window Switch Replacement - Rear Door . |
|
| 1 | Cover, Trim Bolt Accessory Hole |
| 2 | Screw, Door Trim Panel Tighten: 2 N.m (18 lb in) |
| 3 | Bolt, Door Trim Panel Tighten: 9 N.m (80 lb in) |
| 4 | Panel Assembly, Side Door Trim Tip: Release the inside door handle cables. Refer to Door Handle Replacement - Front Inside . |
| 5 | Retainer, Side Door Trim Panel |
