Door Handle Replacement - Front Inside

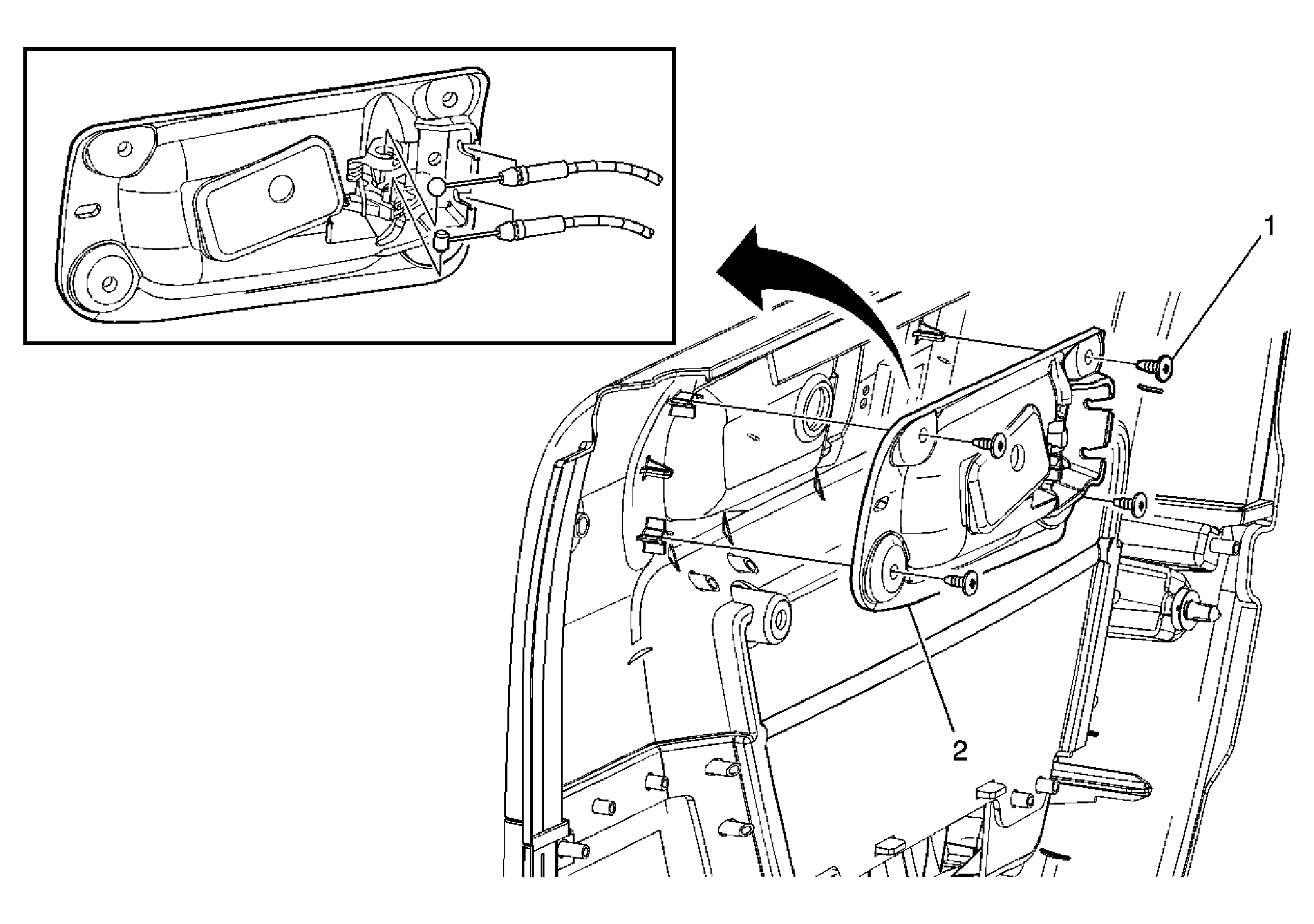

Fig 1: Door Handle Replacement - Front Inside
GM1558198Courtesy of GENERAL MOTORS CORP.
Door Handle Replacement - Front Inside

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Screw, Inside Door Handle

Tighten:  2 N.m (18 lb in)

2 Handle Assembly, Inside Door
