Seat Back Frame Replacement - Front

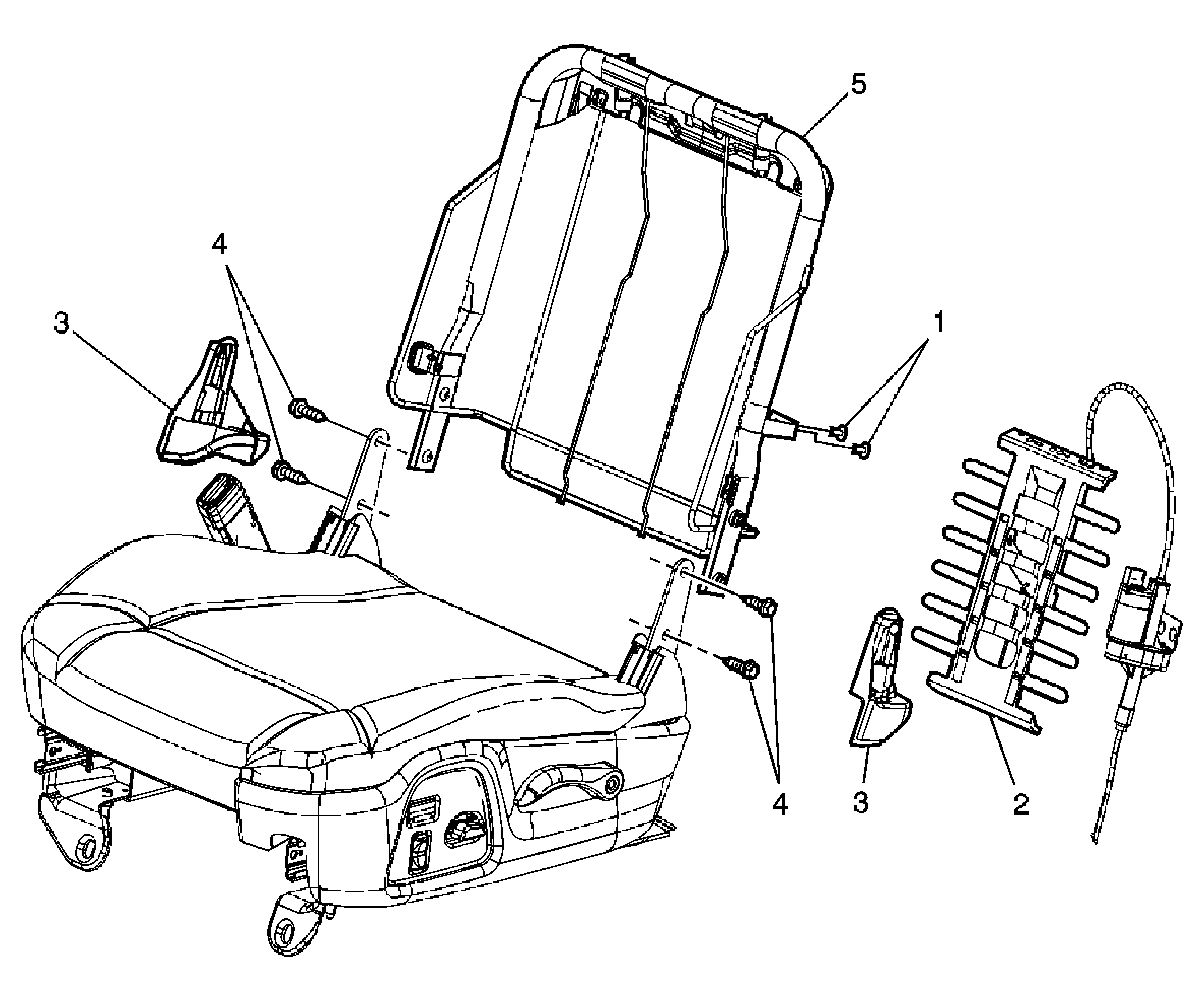

Fig 1: Seat Back Frame Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the front bucket seat. Refer to Seat Replacement - Front Bucket . Remove the seat back panel. Refer to Seat Back Panel Replacement - Front . Remove the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .
1	Rivet, Seat Lumbar Support Tip: Drill out the rivet to remove the lumbar actuator and install new rivets to replace.
2	Support Assembly, Seat Lumbar Tip: Disconnect the electrical connector. Detach the seat back frame wire from the top of the lumbar. Detach the seat back frame wire from the bottom of the lumbar.
3	Cover, Seat Back Recliner (Qty: 2)
4	Bolt, Seat Back Frame (Qty: 4) Tighten: 25 N.m (18 lb ft)
5	Frame Assembly, Seat Back Cushion
