Seat Back Panel Replacement - Front

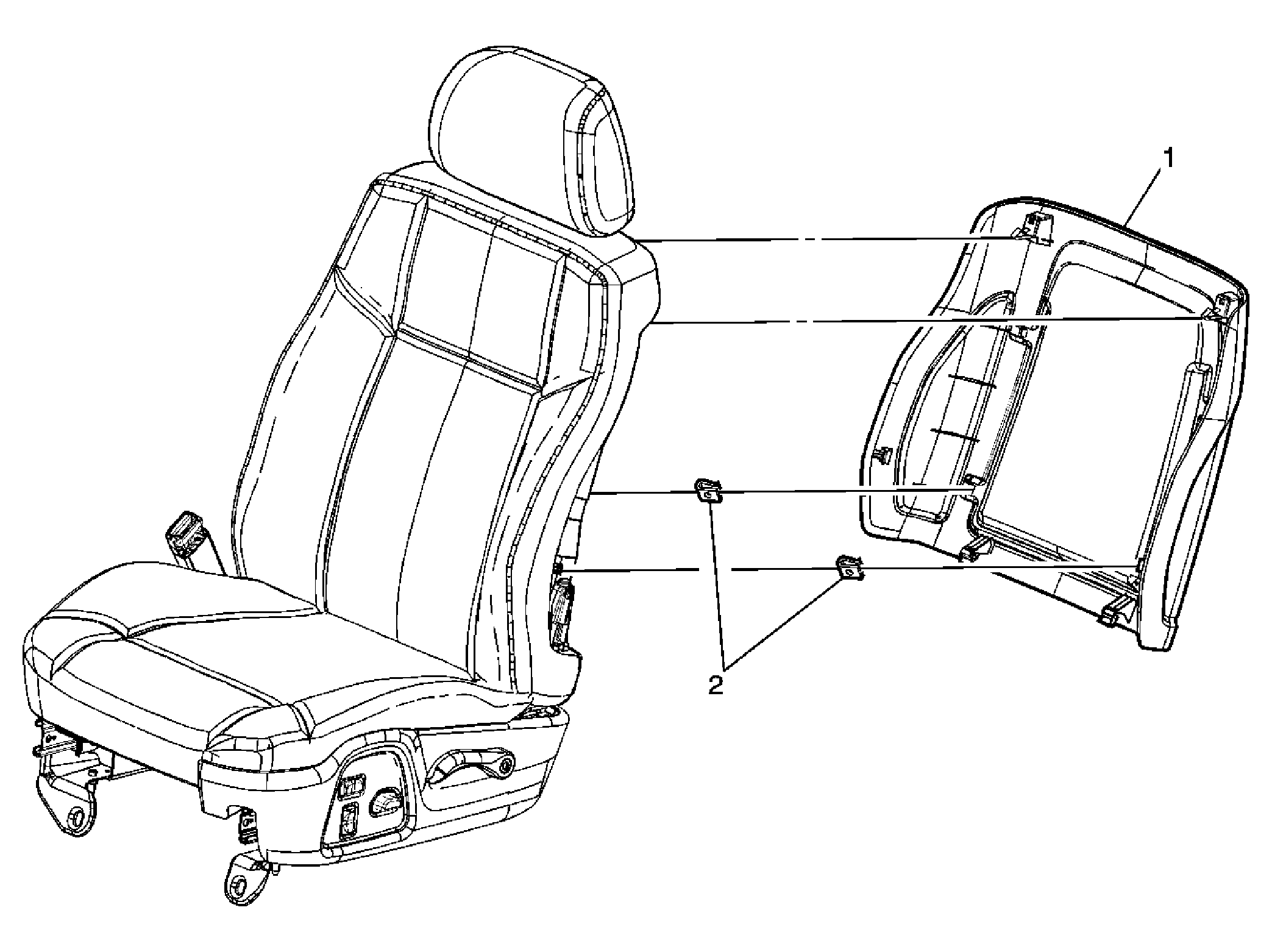

Fig 1: Seat Back Panel Replacement - Front
GM1552303Courtesy of GENERAL MOTORS CORP.
Seat Back Panel Replacement - Front

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Panel, Seat Back Cushion
Tip:  Pull rearward to disengage the retainers, then pull upward to disengage the seat back panel from the seat back frame.
2 Retainer, Seat Back Panel (Qty: 2)
