Windshield Washer Solvent Container Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

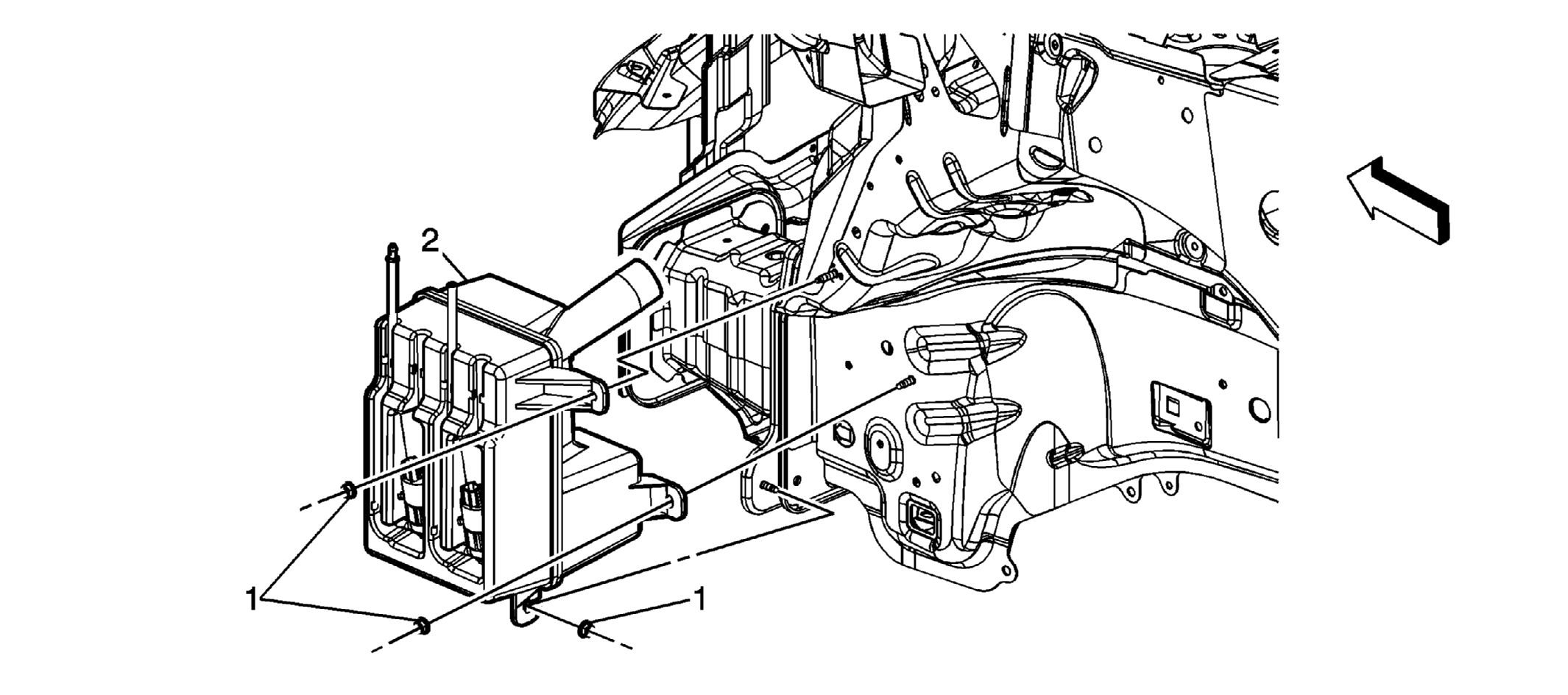

Fig 1: Windshield Washer Solvent Container

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Base) or Front Bumper Fascia Replacement (Red Line) . Remove the washer container filler neck. Refer to Windshield Washer Solvent Container Filler Tube Replacement Drain the windshield washer solvent into a suitable clean container. Disengage the washer pump hoses from the washer container. Remove the washer pump hoses from both washer pumps. Disconnect the level sensor electrical connector. Disconnect both front and rear washer pump electrical connectors.
1	Windshield Washer Container Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m(89 lb in)
2	Windshield Washer Solvent Container Procedure Remove the washer container from the supporting studs. Remove and transfer the windshield washer solvent container level sensor. Refer to Windshield Washer Solvent Level Switch Replacement . Remove the windshield washer pump. Refer to Windshield Washer Pump Replacement . Remove the rear window washer pump. Refer to Rear Window Washer Pump Replacement .

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Base) or Front Bumper Fascia Replacement (Red Line) .
Remove the washer container filler neck. Refer to Windshield Washer Solvent Container Filler Tube Replacement
Drain the windshield washer solvent into a suitable clean container.
Disengage the washer pump hoses from the washer container.
Remove the washer pump hoses from both washer pumps.
Disconnect the level sensor electrical connector.
Disconnect both front and rear washer pump electrical connectors.

Windshield Washer Container Nut (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m(89 lb in)

Windshield Washer Solvent Container

Procedure

Remove the washer container from the supporting studs.
Remove and transfer the windshield washer solvent container level sensor. Refer to Windshield Washer Solvent Level Switch Replacement .
Remove the windshield washer pump. Refer to Windshield Washer Pump Replacement .
Remove the rear window washer pump. Refer to Rear Window Washer Pump Replacement .
