Windshield Washer Pump Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

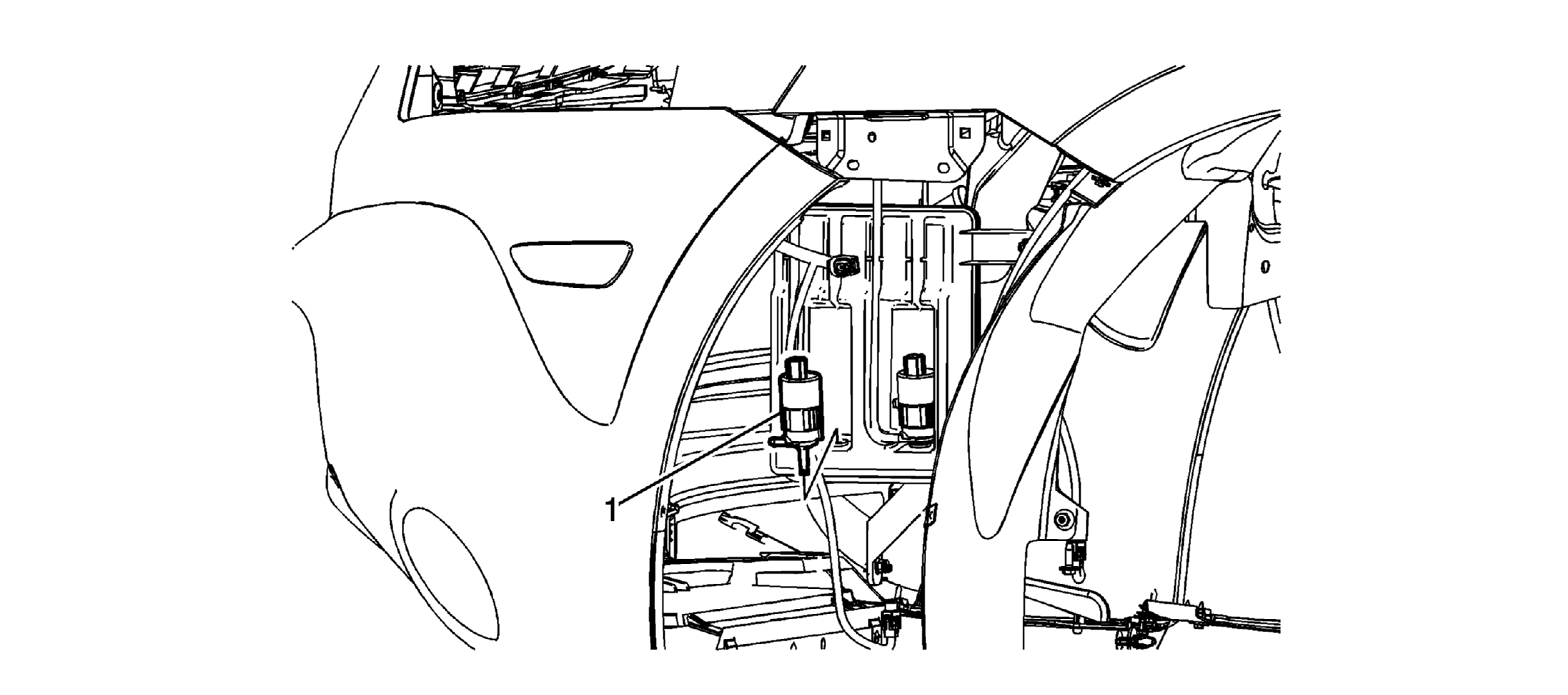

Fig 1: Windshield Washer Pump

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Windshield Washer Pump Front Procedure Drain the windshield washer solvent into a suitable clean container. Disconnect the electrical connector to the front washer pump. Disconnect the washer pump hose at the pump. Using 2 flat-bladed tools under the base of the washer pump, pry upward in order to release the pump from the washer pump grommet. Discard the washer pump and grommet. Tip: Use full strength washer solvent on the new grommet in order to aid in the installation of the new front windshield washer container pump.

Callout

Component Name

Preliminary Procedure:
Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .

Windshield Washer Pump Front

Procedure

Drain the windshield washer solvent into a suitable clean container.
Disconnect the electrical connector to the front washer pump.
Disconnect the washer pump hose at the pump.
Using 2 flat-bladed tools under the base of the washer pump, pry upward in order to release the pump from the washer pump grommet.
Discard the washer pump and grommet.

Tip:

Use full strength washer solvent on the new grommet in order to aid in the installation of the new front windshield washer container pump.
