Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the reader/exciter module to the ignition lock cylinder. Refer to THEFT DETERRENT EXCITER MODULE REPLACEMENT in Theft Deterrent.
  2. If ignition lock cylinder was previously seized proceed with steps  A through  D , if not go to step  3.
    1. Turn the new ignition lock cylinder to the run position.
    2. Turn the ignition switch to the run position.
    3. Slowly push the ignition lock cylinder into the ignition switch until fully seated. It may be necessary to slightly depress the release button as it passes by the 1/4 inch hole previously drill in the ignition switch housing.
    4. Reinstall the ignition switch. Refer to IGNITION SWITCH REPLACEMENT  .
    5. Go to step  5.

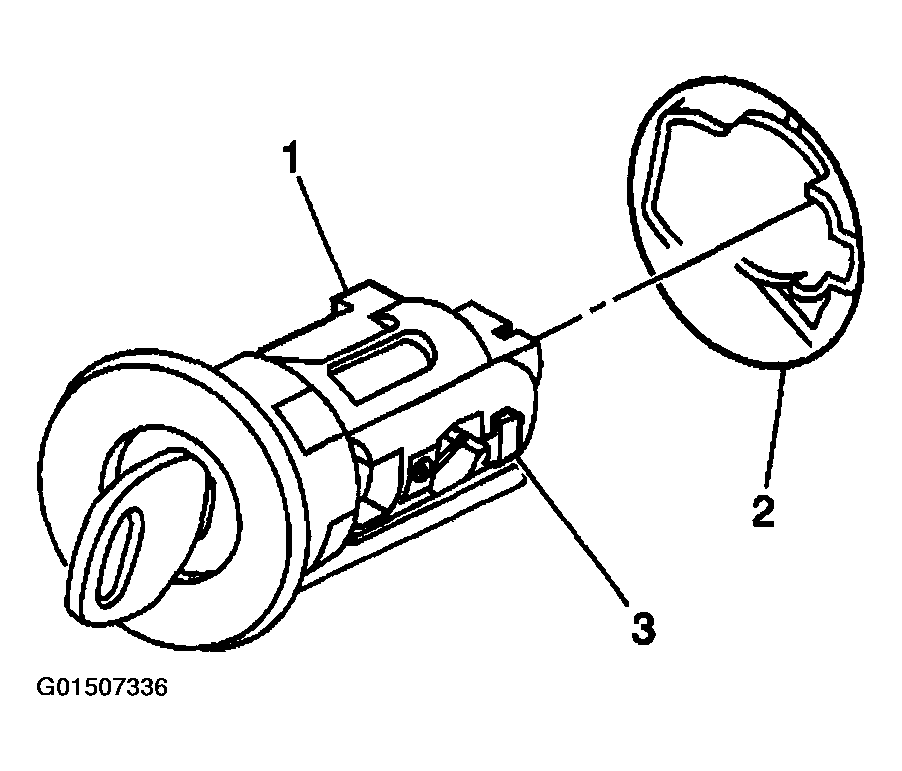

    3. Fig 1: Inserting Ignition Lock Cylinder Into Ignition Switch
    G01507336Courtesy of GENERAL MOTORS CORP.
  3. Position the ignition lock cylinder (1) with the key installed into the opening in the ignition switch (2).
  4. Press the ignition lock cylinder into place. The lock cylinder retaining tab will produce an audible click when fully seated.
  5. Using light force, pull on the lock cylinder in order to ensure the lock cylinder is engaged and secured in place.
  6. Install the HVAC control module assembly. Refer to HVAC CONTROL MODULE REPLACEMENT in HVAC Systems Automatic.
  7. Install the radio. Refer to RADIO REPLACEMENT (W/O UM8) or RADIO REPLACEMENT (W UM8) in Entertainment.
  8. Install the I/P cluster trim plate bezel. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  9. Install the I/P center trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER  .
  10. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  11. Inspect the ignition switch for proper operation in all positions.
  12. Release the parking brake.
  13. Enable the SIR system. Refer to ZONE 3 in SIR.
