Zone 3

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn steering wheel to place vehicle wheels in straight-ahead position. Turn ignition off and remove key.

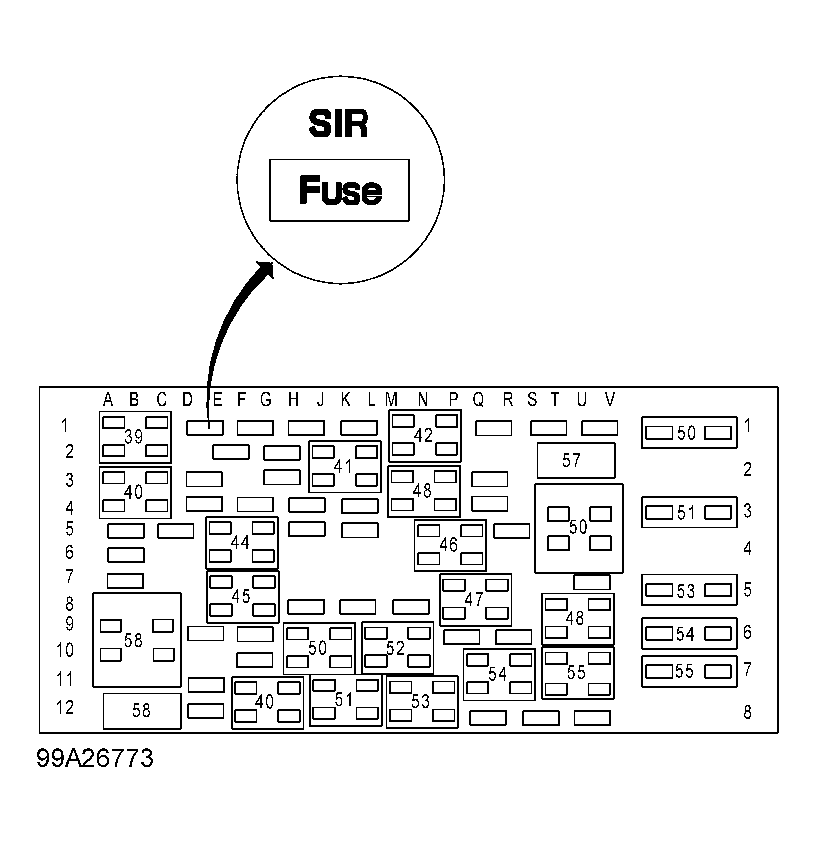

  2. Remove SIR fuse from rear junction block, located under rear seat. See Figure. Remove driver-side knee bolster. Remove Connector Position Assurance (CPA) clip from driver-side air bag module connector. See Fig 1. Disconnect driver-side air bag module connector.
Fig 1: Identifying Driver-side Air Bag Module Connector
G99A00299Courtesy of GENERAL MOTORS CORP.
