DTC P15AB: Inspection

IG1_ACG, PGND Circuit Inspection

Test Procedure

• Preparation
  • Rear engine mount actuator connector (2P): disconnected
  • Engine mount control unit connector (16P): disconnected
• Procedure
  • Perform the inspection according to the following chart.

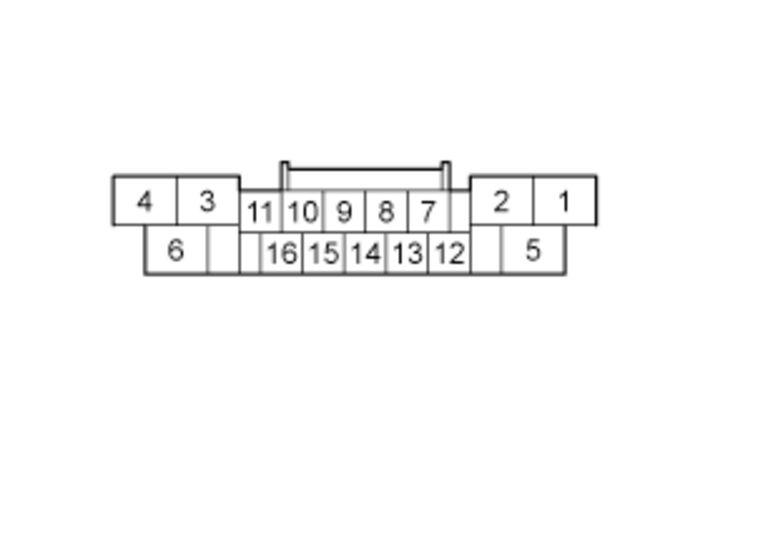

			(Disconnected) Engine mount control unit connector (16P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	IG1_ACG circuit inspection	ON		12 V battery voltage [circuit type 3]
	PGND open wire inspection	OFF		There is less than 1 ohms

Results

• If it is abnormal, there is a problem in the circuit.

  If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.

Engine Mount Control Unit Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining engine mount control unit is the cause.

Results

• There is a problem with the engine mount control unit.
