Engine Mount Control Unit Connector for Inputs and Outputs

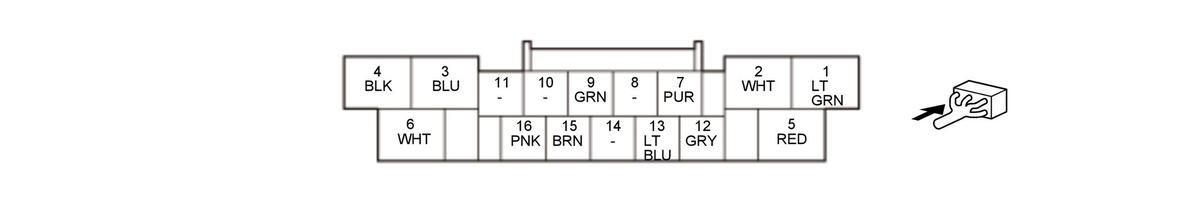

Engine Mount Control Unit 16P Connector (female terminals)
| Cavity | Terminal Name | Connects to |
|---|---|---|
| 1 | RR_ACM_SOL- | Rear engine mount actuator |
| 2 | RR_ACM_SOL+ | Rear engine mount actuator |
| 3 | FR_ACM_SOL+ | Front engine mount actuator |
| 4 | PGND | Body ground to G209 |
| 5 | FR_ACM_SOL- | Front engine mount actuator |
| 6 | ACM_RLY_OUT | Active control engine mount (ACM) control relay |
| 7 | TDC_OUT | PCM (TDC_OUT) |
| 8 | Not used | |
| 9 | IG1_ACG | DC-DC converter IG1 relay 2 |
| 10 | Not used | |
| 11 | Not used | |
| 12 | CRK_OUT | PCM (CRK_OUT) |
| 13 | P_FCAN1-H | PCM (P_FCAN1-H) |
| 14 | Not used | |
| 15 | P_FCAN1-L | PCM (P_FCAN1-L) |
| 16 | ACM_SOL_RLY | Active control engine mount (ACM) control relay |
