Cannot select ON mode with keyless access, but can select ON mode with the keyless remote touching the engine start/stop switch
- Keyless access system check 1
-1. Push the LOCK and the UNLOCK buttons of the keyless remote, and check if the LED on the keyless remote comes on.
Does the LED come on?
YES
Go to step 2.
NO
Replace the keyless remote battery and recheck the system. If the symptom does not go away, replace the keyless remote.
- Keyless access system check 2
-1. Touch the engine start/stop switch with the keyless remote. The buttons on the keyless remote should be facing you.
-2. Turn the vehicle to the ON mode.
-3. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter SELF CHECK.
One-Push - KEYLESS ACCESS CONTROL UNIT- SELF CHECK
Does the system communicate with the HDS?
YES
Go to step 3.
NO
Do the keyless access/TPMS control unit input test.
- PCU DTC check
-1. Check for PCU DTCs with the HDS.
DTC Description DTC Are any DTCs indicated?
YES
Troubleshoot the PCU DTCs.
NO
Go to step 4.
- Keyless access DTC check
-1. Check for keyless access/TPMS control unit DTCs with the HDS.
DTC Description DTC Are any DTCs indicated?
YES
Troubleshoot the keyless access/TPMS control unit DTCs.
NO
Go to step 5.
- Backup DTC check
-1. Check for backup control unit DTCs with the HDS.
DTC Description DTC Are any DTCs indicated?
YES
Troubleshoot the backup control unit DTCs.
NO
Go to step 6.
- Keyless access system check 3
-1. Select HISTORY DATA from the KEYLESS ACCESS CONTROL UNIT mode menu with the HDS.
One-Push - KEYLESS ACCESS CONTROL UNIT- HISTORY DATA
Select HISTORY CLEAR, and back to TEST MODE MENU.
-3. Turn the vehicle to the OFF (LOCK) mode.
-4. Touch the engine start/stop switch with the keyless remote. The buttons on the keyless remote should be facing you.
-5. Turn the vehicle to the ON mode.
-6. Select HISTORY DATA from the KEYLESS ACCESS CONTROL UNIT mode menu with the HDS.
One-Push - KEYLESS ACCESS CONTROL UNIT- HISTORY DATA
History Data
ENGINE START/STOP SWITCH 1 (+) ON ENGINE START/STOP SWITCH 2 (-) ON Is all the information ON?
YES
Go to step 8.
NO
Go to step 7.
- Open wire check (SS1+, SS2- lines)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connectors.

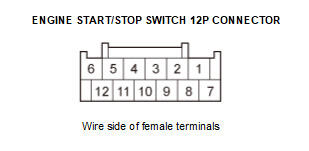

Engine start/stop switch 12P connectorKeyless access/TPMS control unit connector B (36P) -3. Check for continuity between test points 1 and 2 respectively.
Test condition Vehicle OFF (LOCK) mode Engine start/stop switch 12P connector: disconnectedKeyless access/TPMS control unit connector B (36P): disconnected Test point 1 Keyless access/TPMS control unit connector B (36P) No. 10 - Refer to: Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2022 2023) or Keyless Access/TPMS Control Unit Connector for Inputs and Outputs Test point 2 Engine start/stop switch 12P connector No. 7 Test point 1 Keyless access/TPMS control unit connector B (36P) No. 11 - Refer to: Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2022 2023) or Keyless Access/TPMS Control Unit Connector for Inputs and Outputs Test point 2 Engine start/stop switch 12P connector No. 6 Is there continuity?
YES
The SS1+ and SS2- wires are OK. Replace the keyless access/TPMS control unit .
NO
Repair an open or high resistance in the wire.
- Keyless access system check 4
-1. Select KEYLESS TRANSMITTER from the BODY ELECTRICAL SYSTEM SELECT menu, then select INSPECTION, then KEYLESS CHECK.
Inspection - Keyless Check
Do the KEYLESS CHECK with the HDS using the all keyless remotes.
Is DIFFERENT KEYLESS ENTRY TRANSMITTER CODE IS RECEIVED indicated?
YES
Go to step 10.
NO
Go to step 9.
- Keyless remote check (substitution)
-1. Substitute a known-good keyless remote, then recheck the system.
Does the system change to ON mode?
YES
Register the keyless remote , and recheck. If the symptom does not go away, replace the keyless remote.
NO
- Keyless remote check (substitution)
-1. Substitute a known-good keyless remote, then recheck the system.
Does the system change to ON mode?
YES
Register the keyless remote - Refer to: Keyless Access System Registration (2019) or Keyless Access System Registration , and recheck. If the symptom does not go away, replace the keyless remote.
NO
