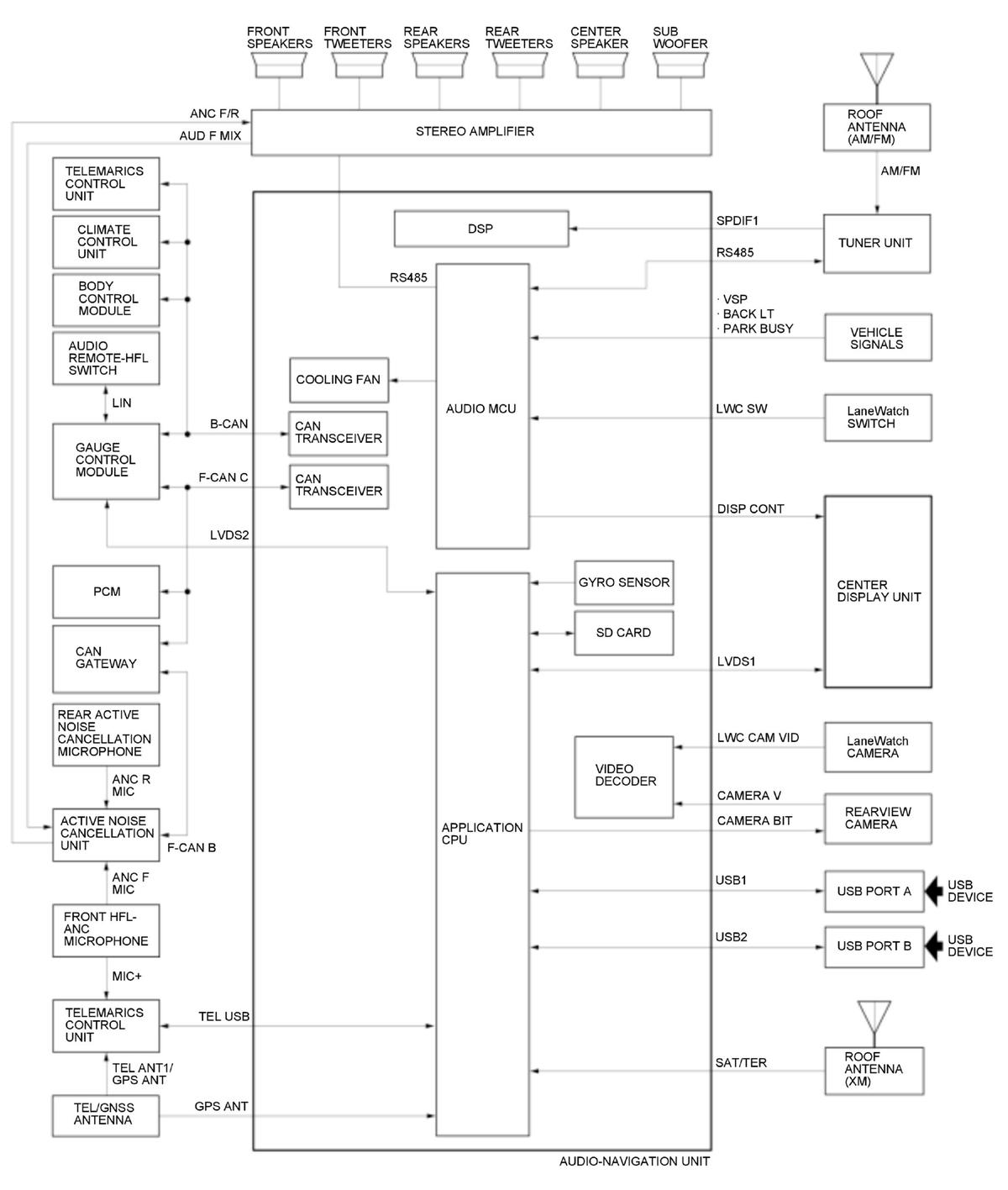

Navigation - System Diagram

For locations of each component on vehicle, refer to Component Location Index.

• Navigation system components
• Gauge control module, Body control module
• Climate control unit
• PCM, CAN gateway
• LaneWatch components
• Telematics system components

Courtesy of HONDA, U.S.A., INC.

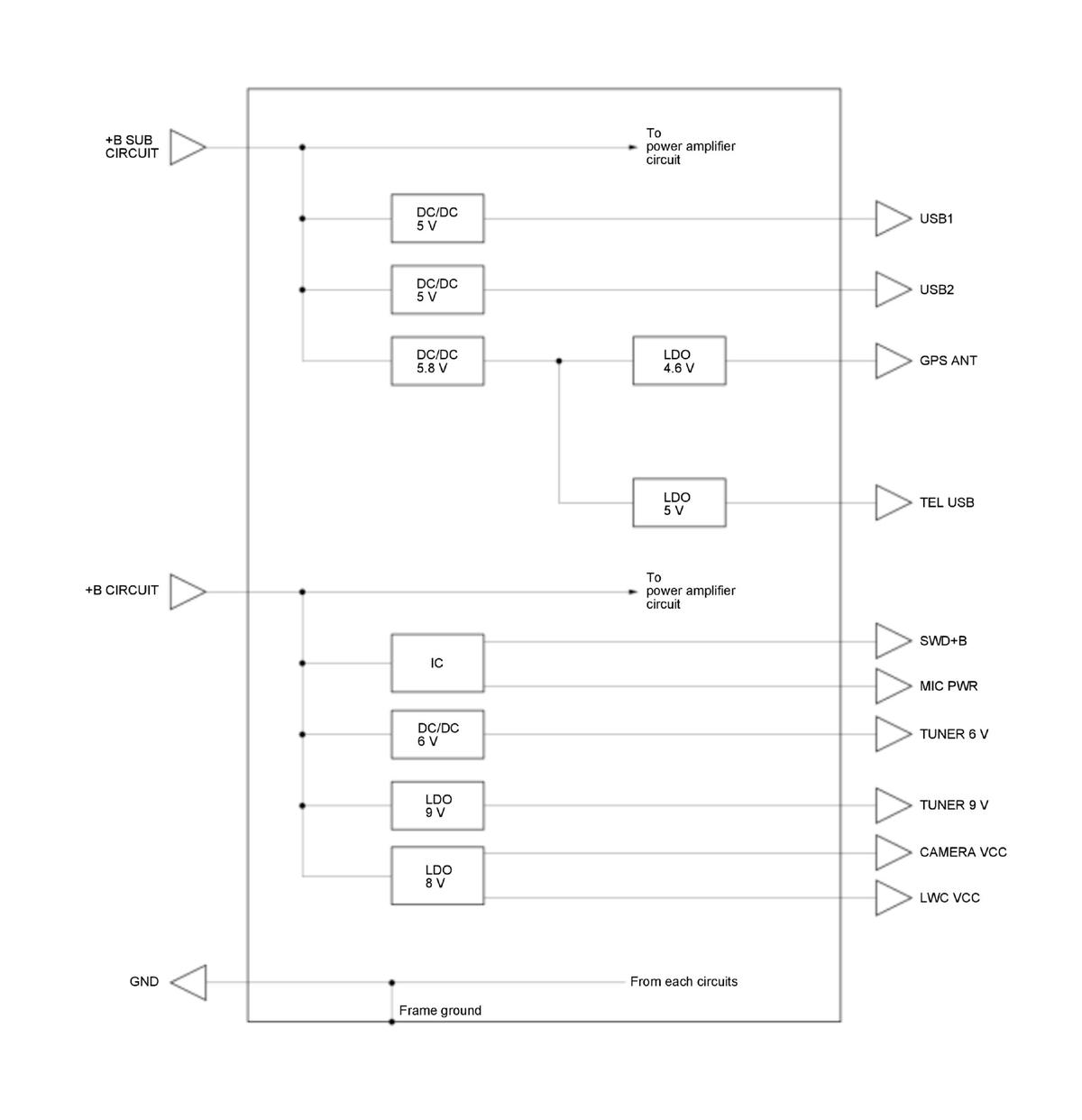

Power Supply Diagram

Courtesy of HONDA, U.S.A., INC.
