Climate Control System Component Location Index

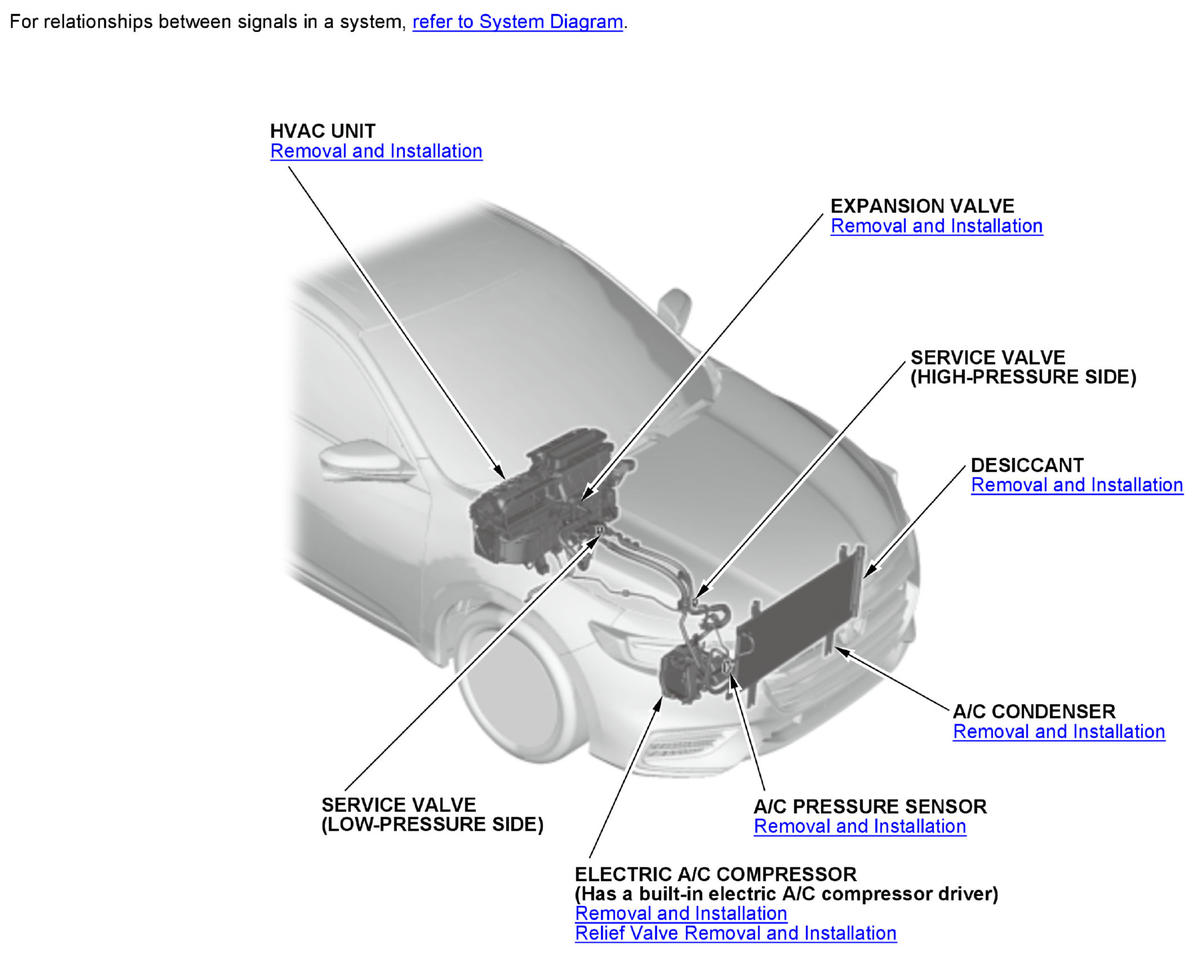

GHH386608

Courtesy of HONDA, U.S.A., INC.

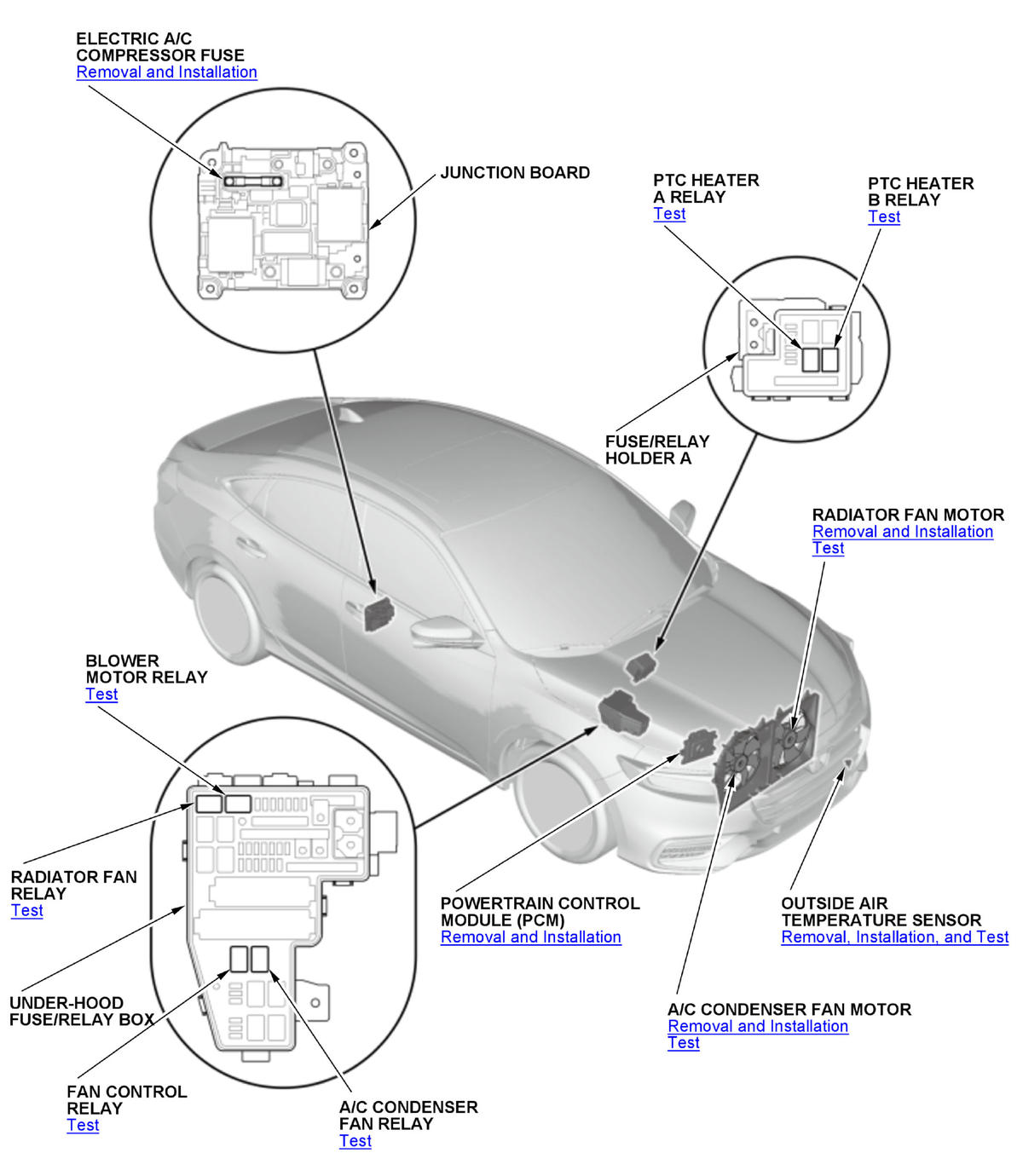

GHH386609

Courtesy of HONDA, U.S.A., INC.

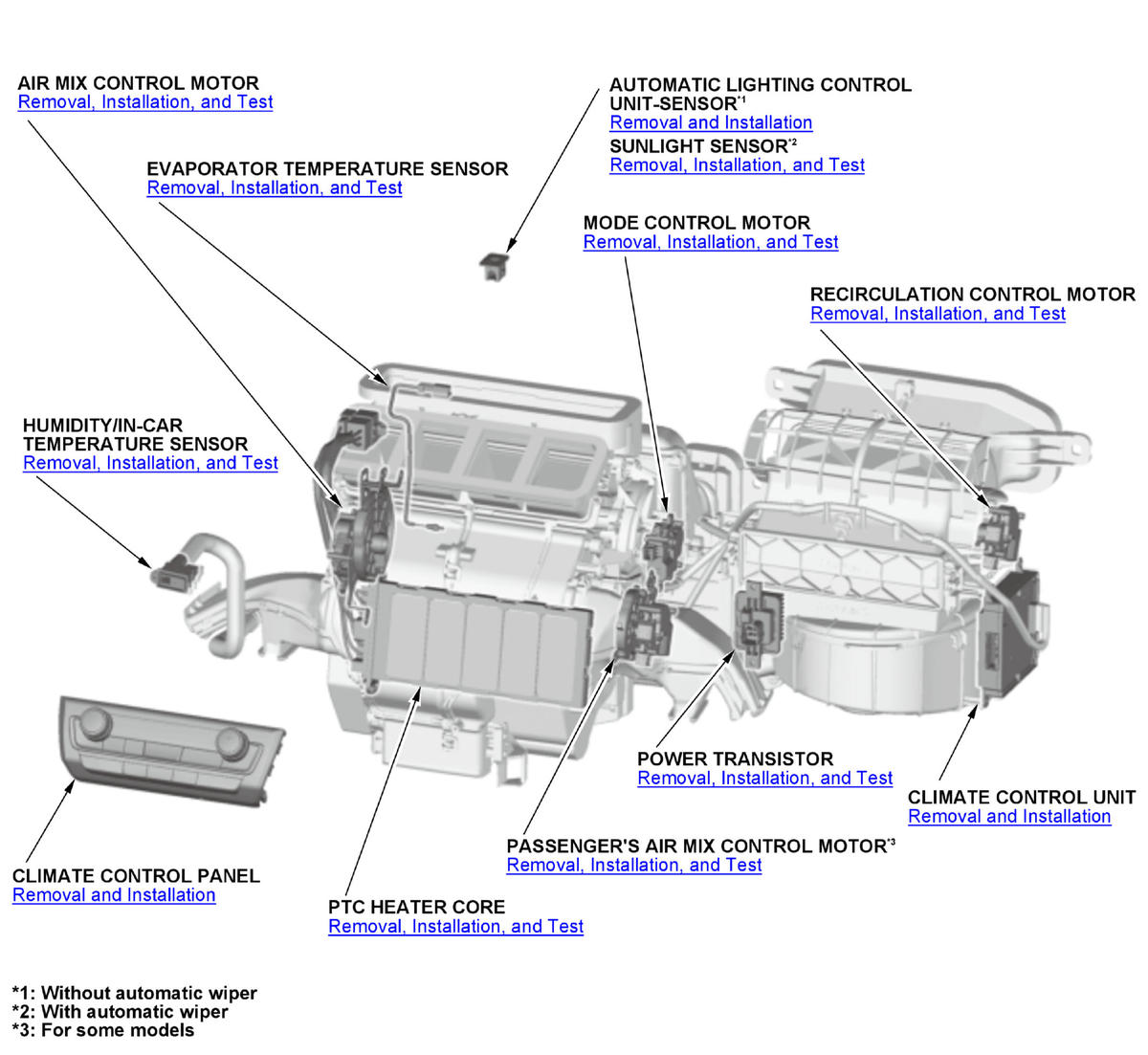

GHH386610

Courtesy of HONDA, U.S.A., INC.

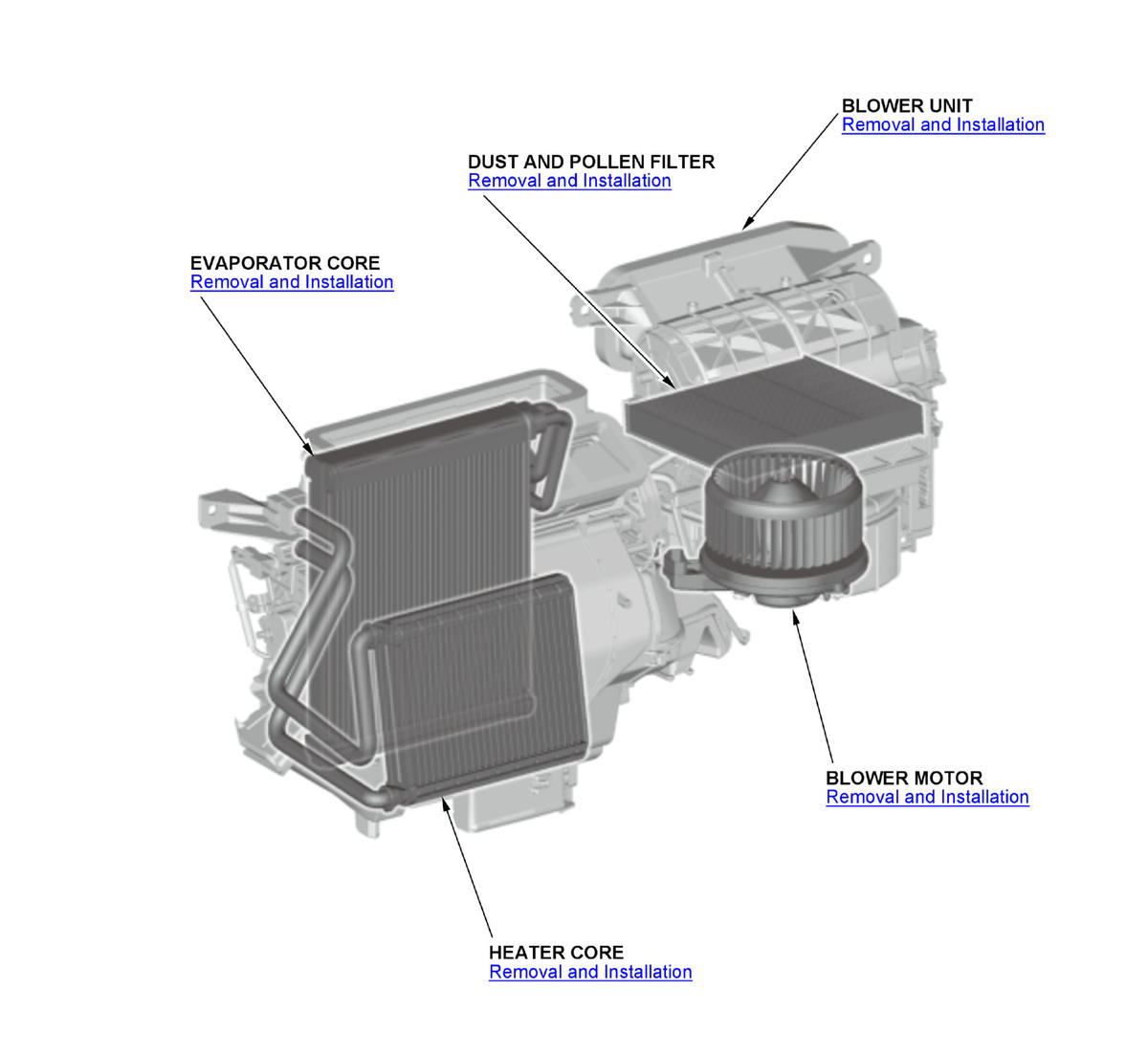

GHH386611

Courtesy of HONDA, U.S.A., INC.
