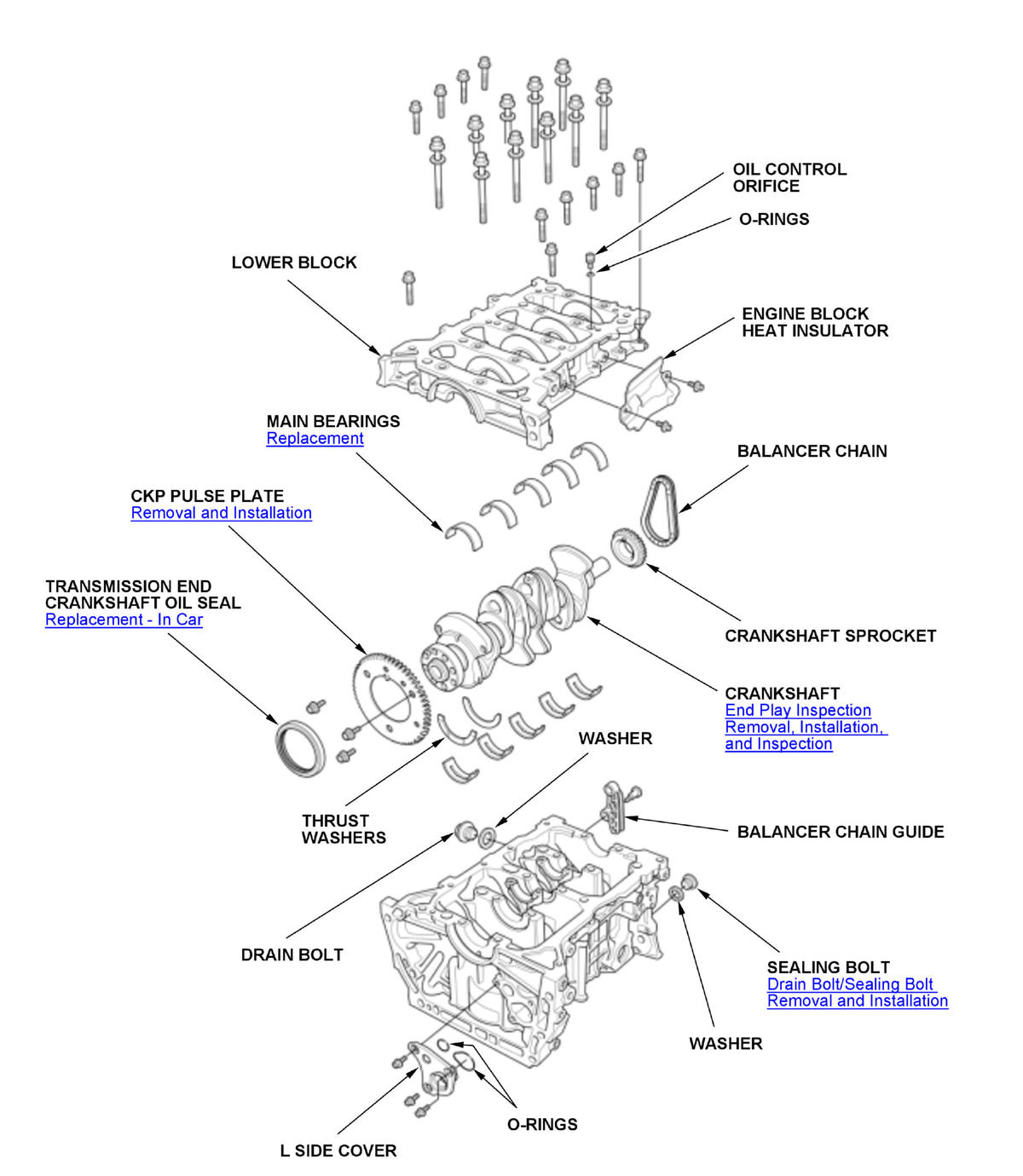

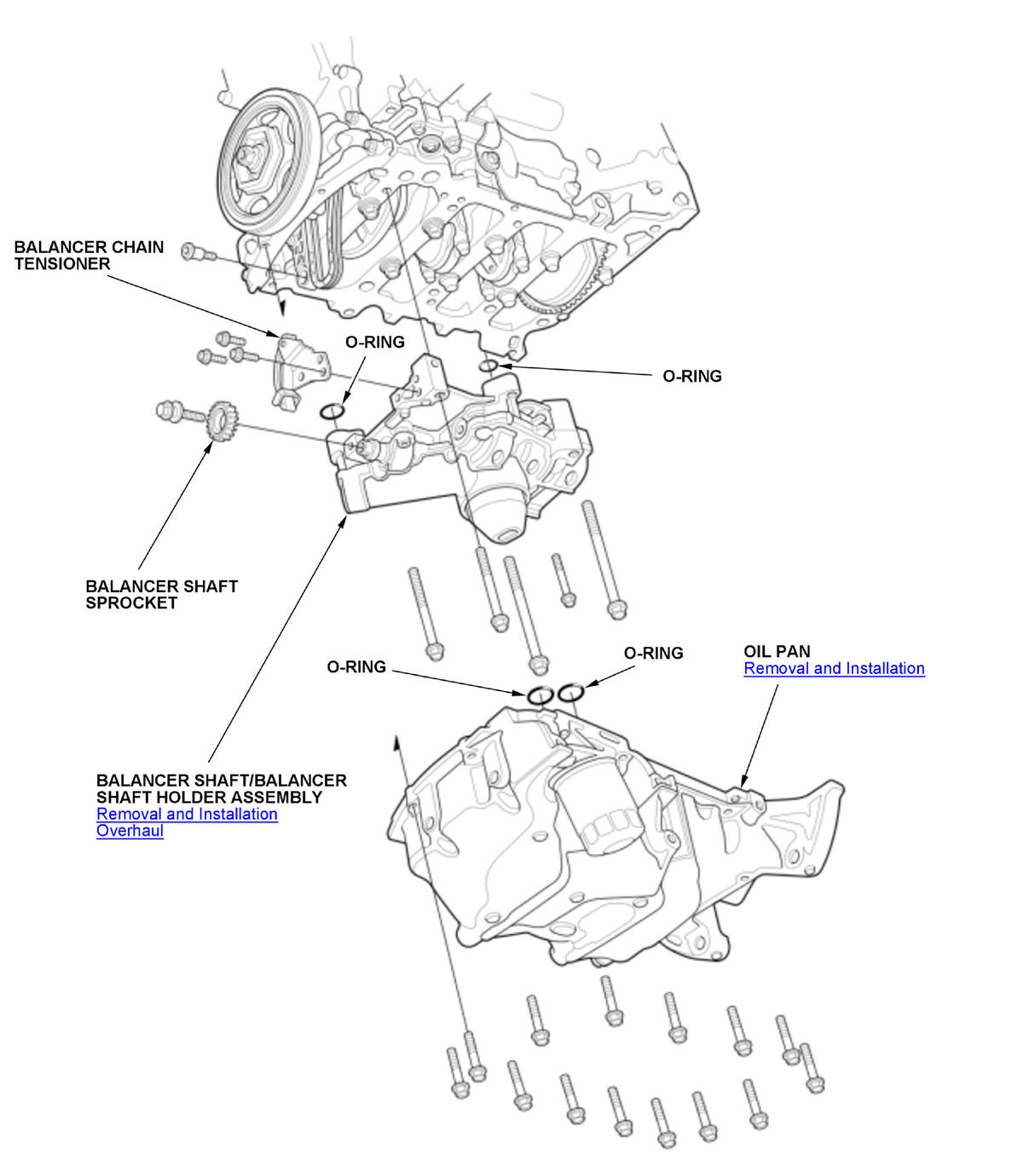

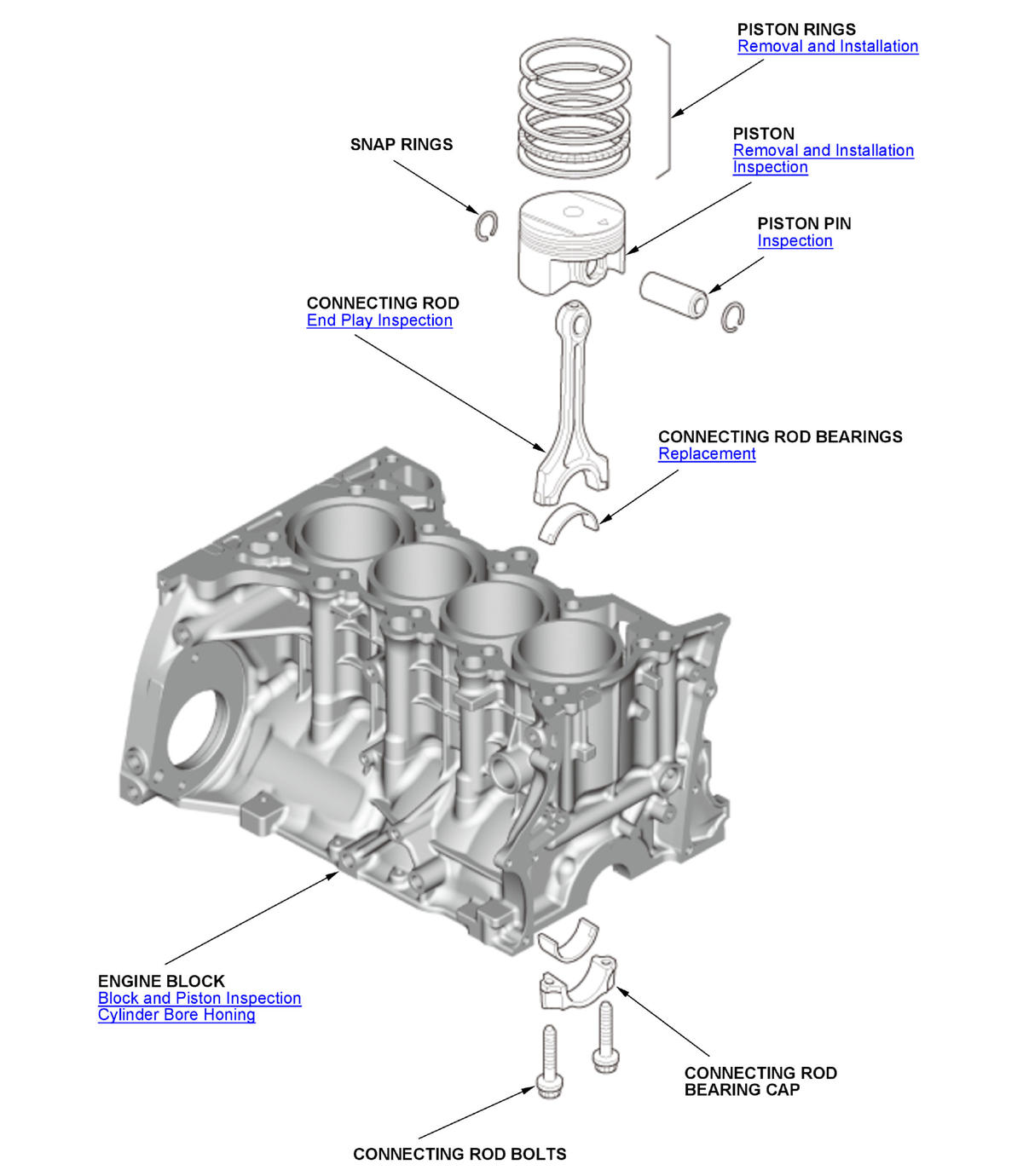

Engine Block Assembly Component Location Index

GHH378332

Courtesy of HONDA, U.S.A., INC.

GHH378333

Courtesy of HONDA, U.S.A., INC.

GHH378334

Courtesy of HONDA, U.S.A., INC.
