Section 50 (Security System / Keyless Entry System - Testing & Troubleshooting (Hybrid))
>>
Description & Operation
>>

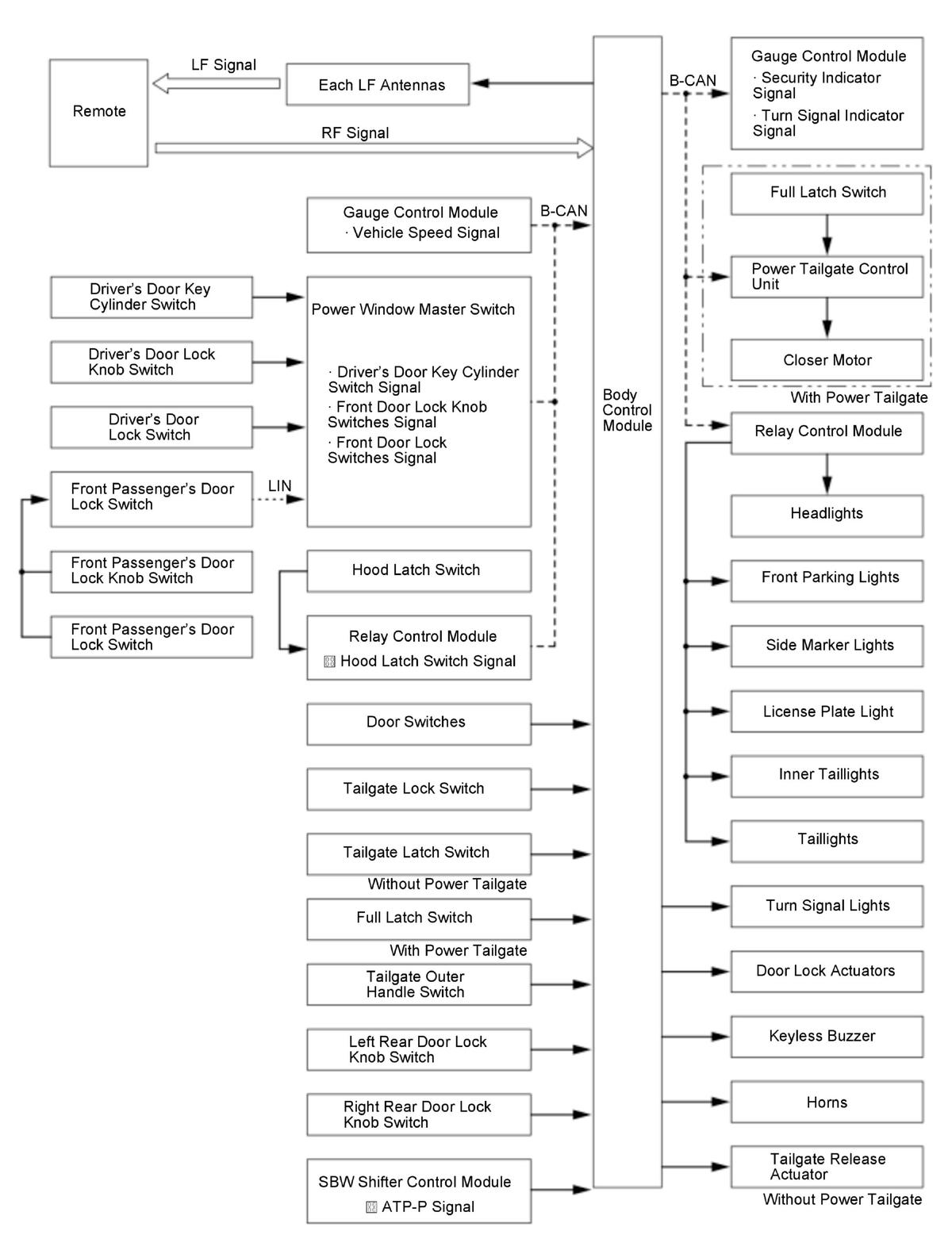

Keyless/Power Door Locks/Security System Description - System Diagram
Keyless/Power Door Locks/Security System Description - System Diagram
WARNING:
This page is about a different variant/trim than selected.
For locations of each component on the vehicle, refer to Component Location Index
Courtesy of HONDA, U.S.A., INC.
