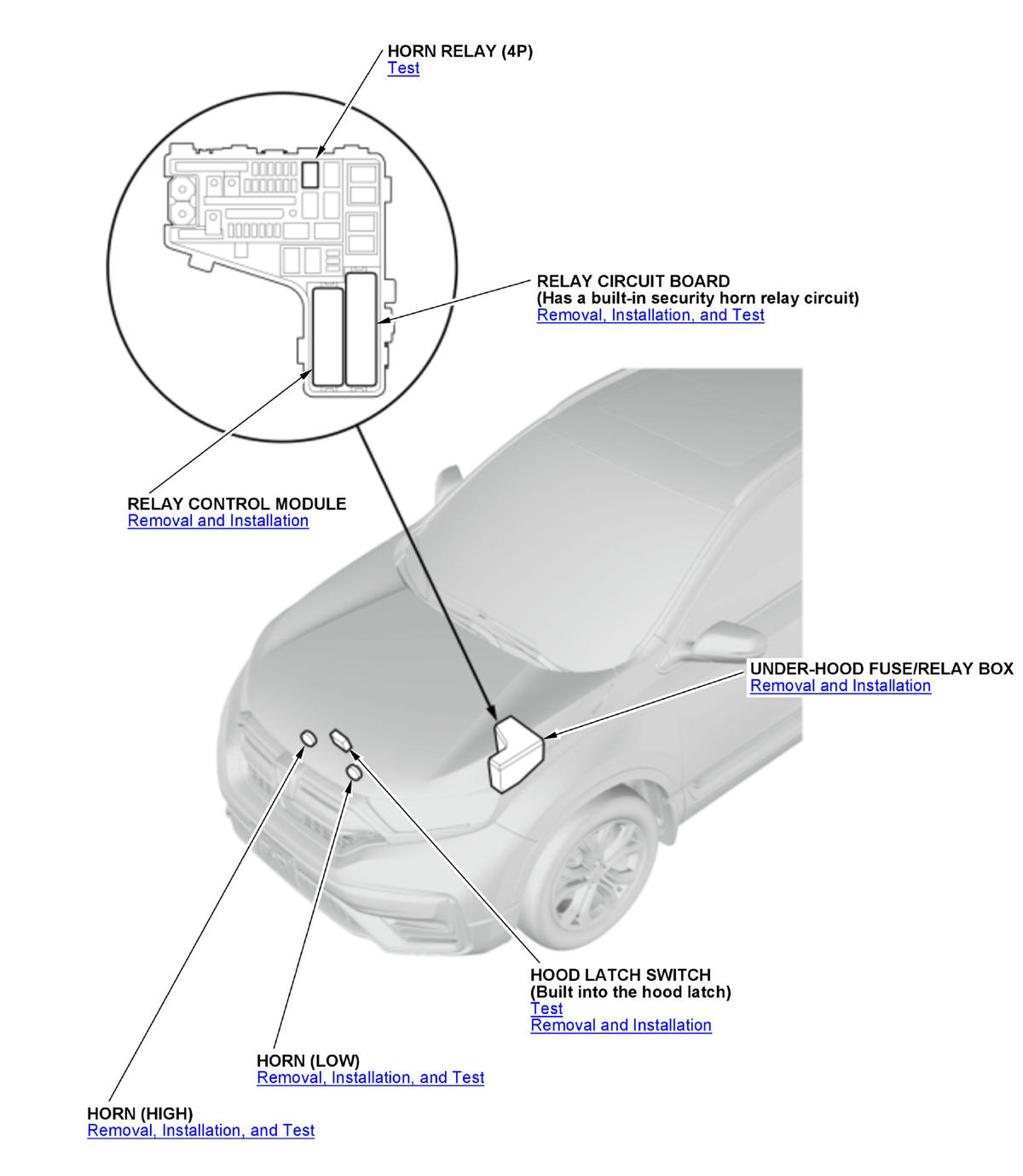

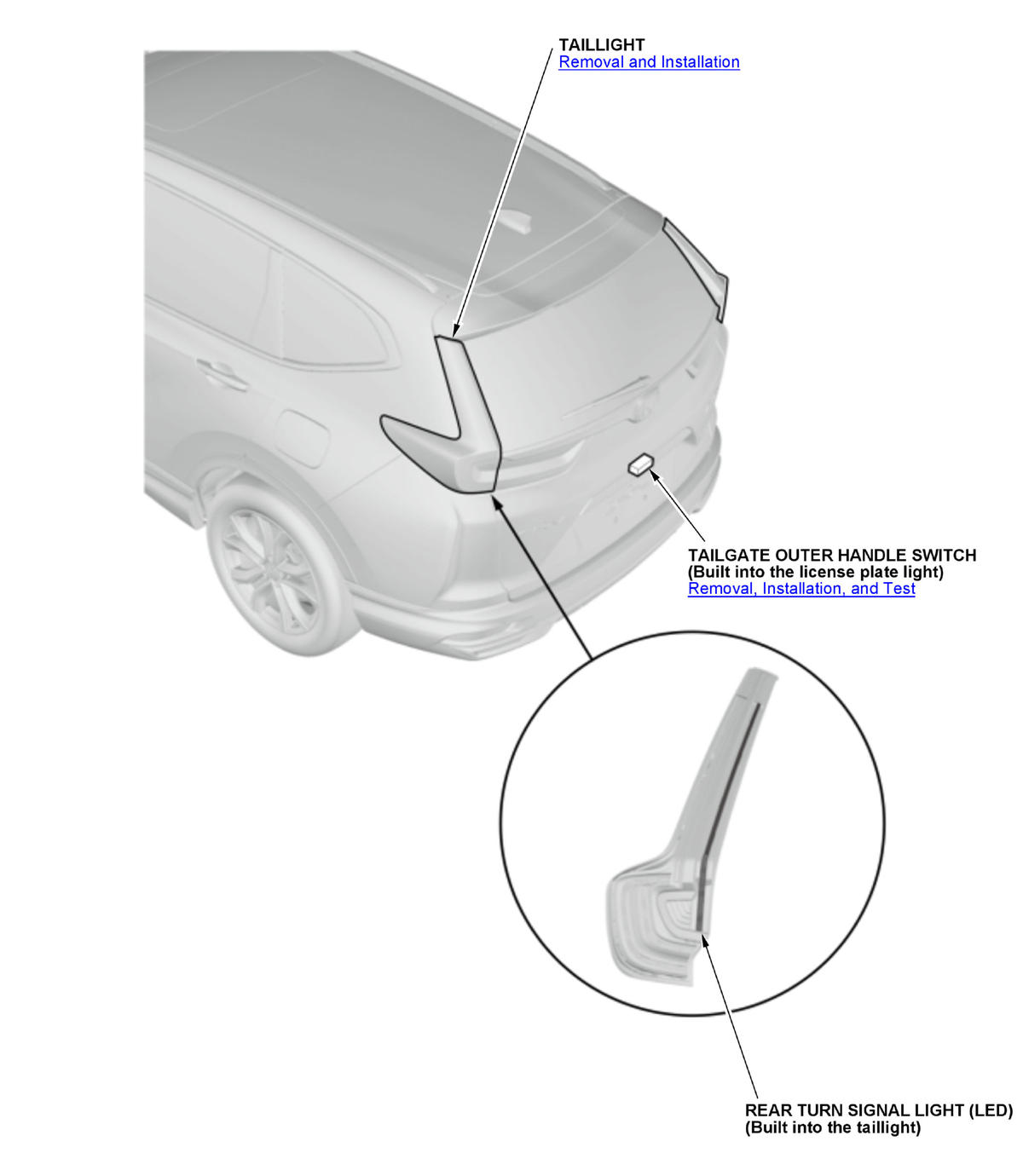

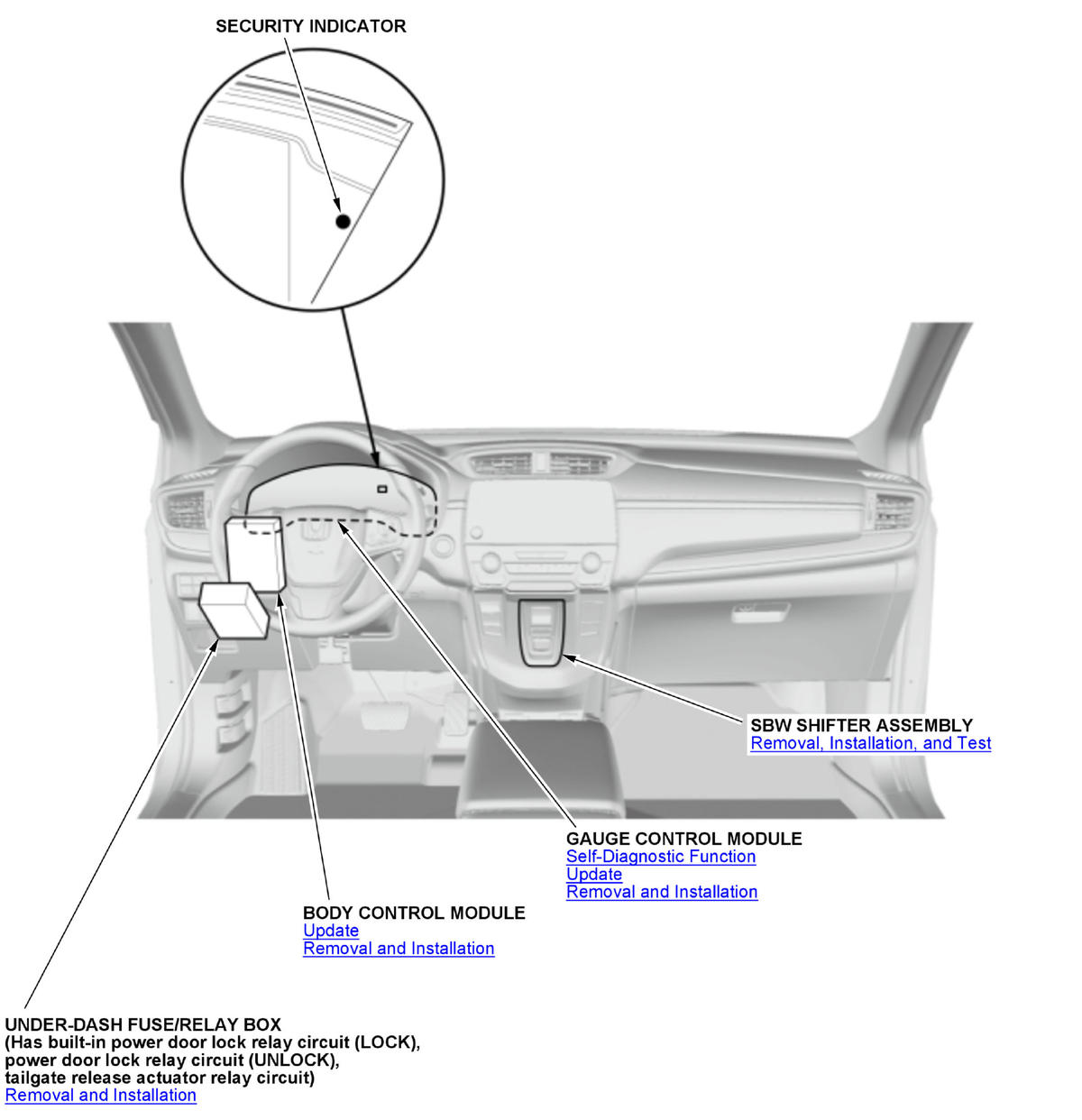

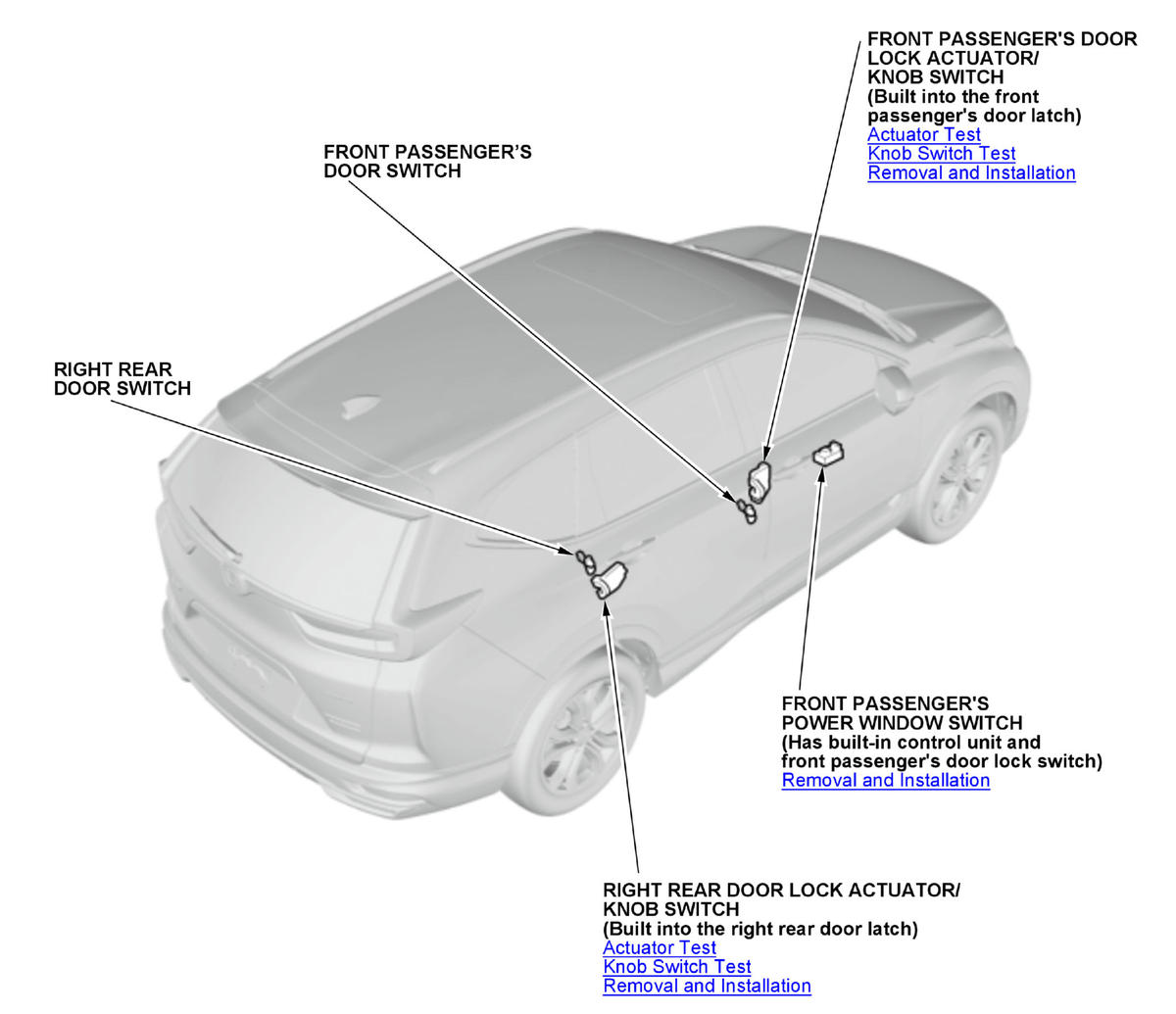

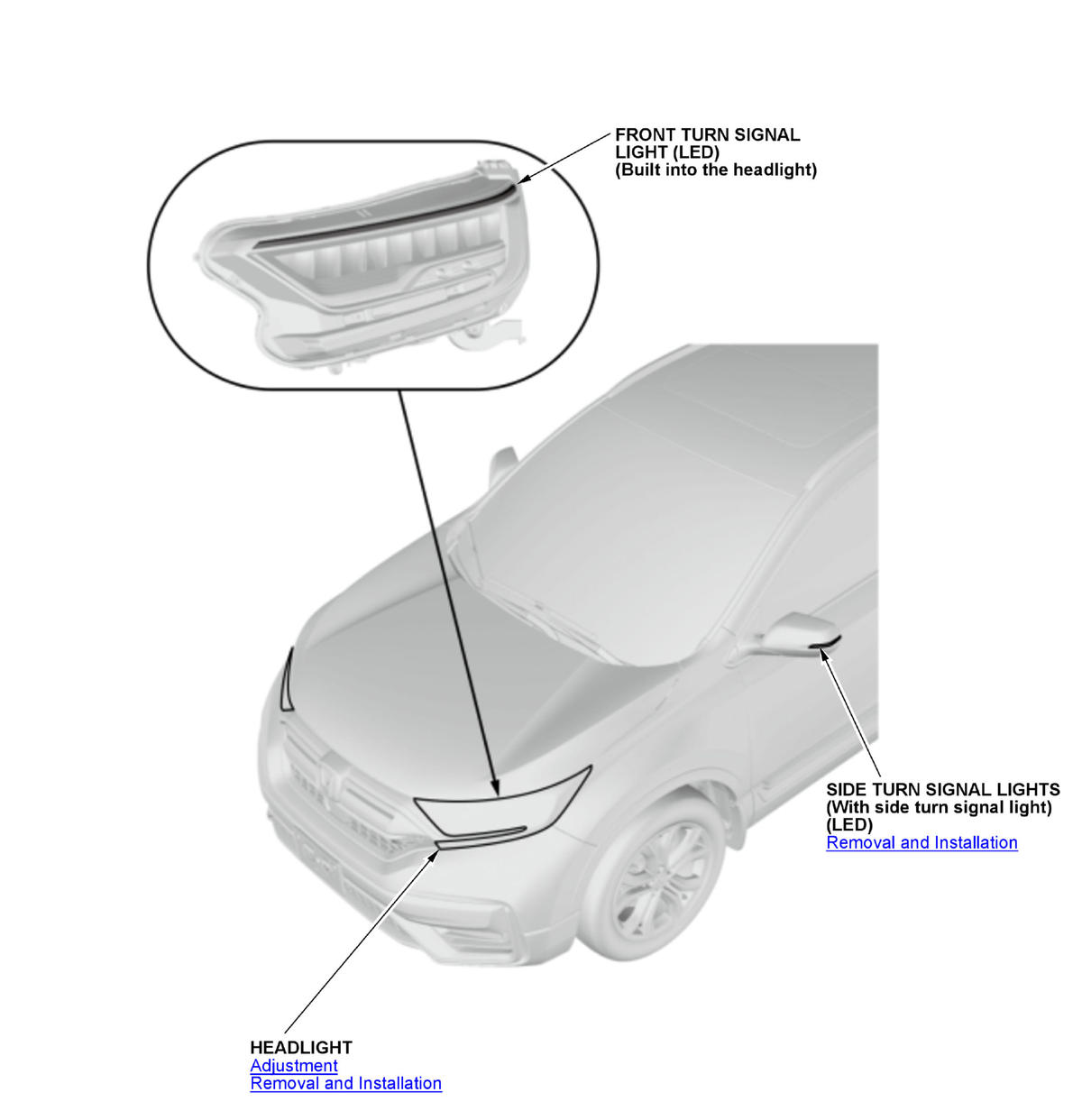

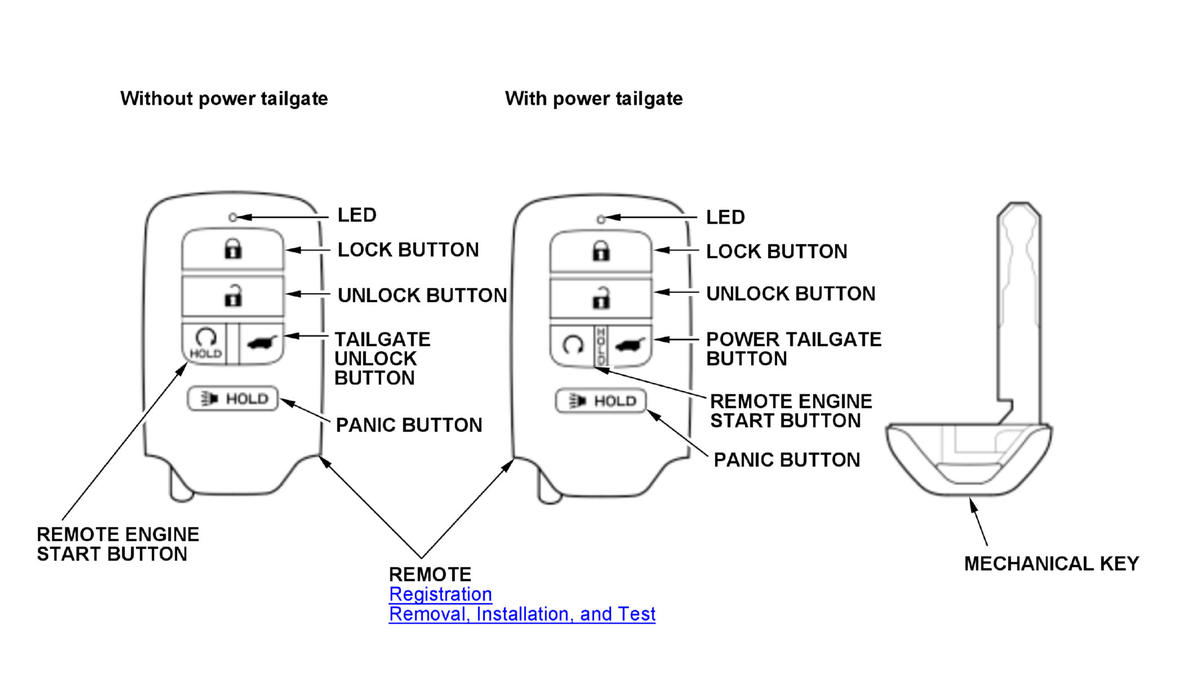

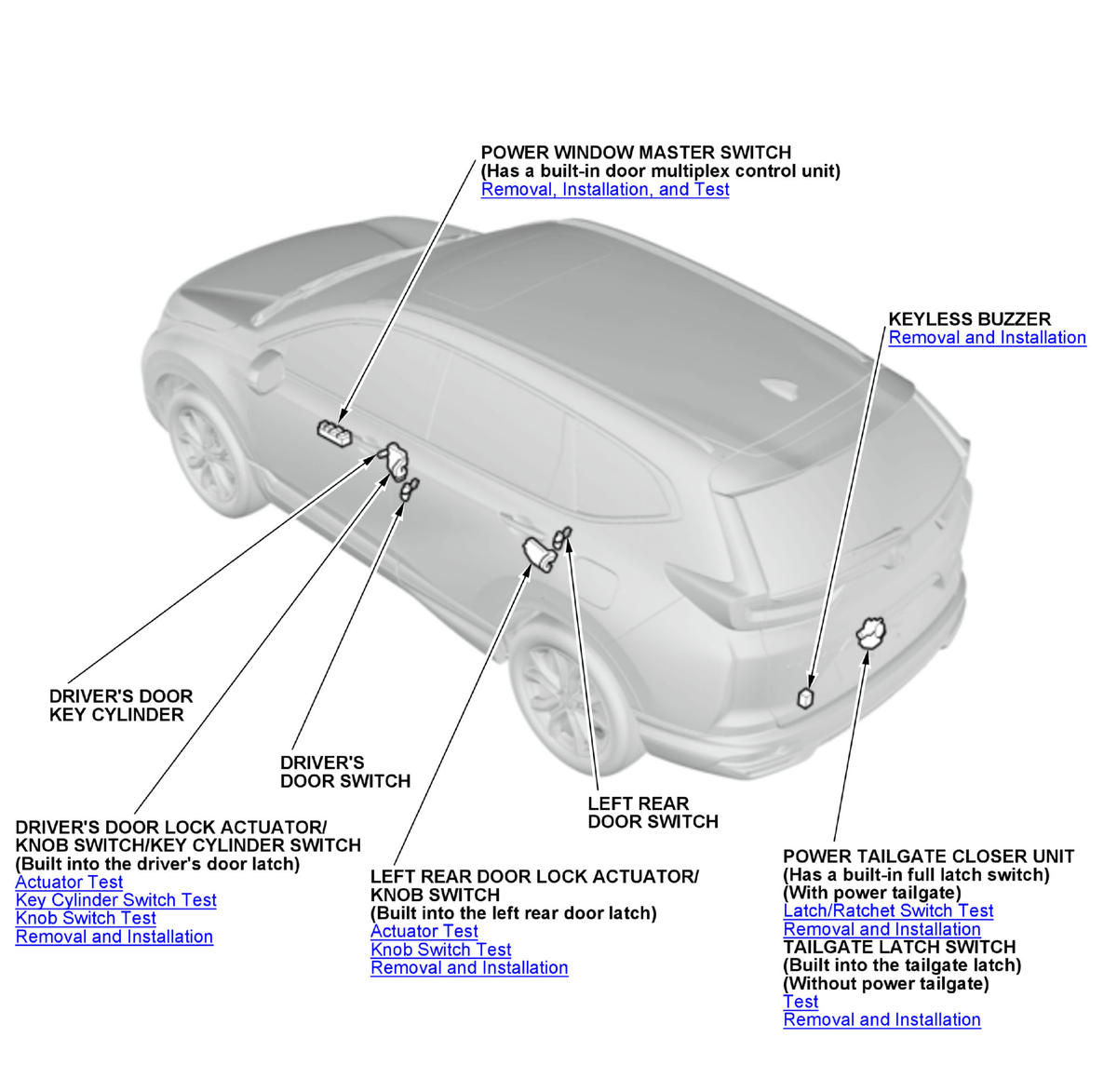

Keyless/Power Door Locks/Security System Component Location Index
WARNING: This page is about a different variant/trim than selected.
For relationships between signals in a system,
refer to System Diagram .
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
