Keyless Access System Symptom Troubleshooting - Cannot select ON mode with keyless access and with the keyless remote touching the engine start/stop switch(With Electric Steering Lock)

ElectronicCircuitSchematics-buttonSystemDescription-buttonKeyless Access System Description - Overview - Refer to: Keyless Access System Description - Components  or Keyless Access System Description - Control/Function  or Keyless Access System Description - System Diagram  or Keyless Access System Description - Overview  or Keyless Access System Description - Failsafe Function  Keyless Access System Description - System Diagram - Refer to: Keyless Access System Description - Components  or Keyless Access System Description - Control/Function  or Keyless Access System Description - System Diagram  or Keyless Access System Description - Overview  or Keyless Access System Description - Failsafe Function  Keyless Access System Description - Control/Function - Refer to: Keyless Access System Description - Components  or Keyless Access System Description - Control/Function  or Keyless Access System Description - System Diagram  or Keyless Access System Description - Overview  or Keyless Access System Description - Failsafe Function  Keyless Access System Description - Components - Refer to: Keyless Access System Description - Components  or Keyless Access System Description - Control/Function  or Keyless Access System Description - System Diagram  or Keyless Access System Description - Overview  or Keyless Access System Description - Failsafe Function  Keyless Access System Description - Failsafe Function - Refer to: Keyless Access System Description - Components  or Keyless Access System Description - Control/Function  or Keyless Access System Description - System Diagram  or Keyless Access System Description - Overview  or Keyless Access System Description - Failsafe Function

Cannot select ON mode with keyless access and with the keyless remote touching the engine start/stop switch

1. Keyless access system check 1

   -1. Do this procedure 10 times: Turn the vehicle to the ON mode while turning the steering wheel to the left and to the right.

   Does the system change to ON mode?

   YES

   Intermittent failure, the system is OK at this time. Check for loose or poor connection.

   NO

   Go to step 2.

2. Keyless access system check 2

   -1. Touch the engine start/stop switch with the keyless remote. The buttons on the keyless remote should be facing you.

   -2. Turn the vehicle to the ON mode while turning the steering wheel to the left and to the right.

   Does the system change to ON mode?

   YES

   Keyless Access System Symptom Troubleshooting - Cannot select ON mode with keyless access, but can select ON mode with the keyless remote touching the engine start/stop switch

   NO

   Go to step 3.

3. Keyless access system check 3

   -1. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter SELF CHECK.

   One-Push - KEYLESS ACCESS CONTROL UNIT - SELF CHECK

   Does the system communicate with the HDS?

   YES

   Go to step 4.

   NO

   Go to step 11.

4. Keyless access system check 4

   -1. Reboot the HDS.

   -2. Select model on the HDS screen.

   -3. When prompted by the HDS, select YES when asked if the vehicle has keyless access system, then press and hold the engine start/stop button for at least 2 minutes. This selects the forced ON mode.

   Does the system change to forced ON mode?

   YES

   Go to step 5.

   NO

   Go to step 16.

5. PCU DTC check

   -1. Check for PCU DTCs with the HDS.

   DTC Description	DTC

   Are any DTCs indicated?

   YES

   Troubleshoot the PCU DTCs.

   NO

   Go to step 6.

6. Keyless access DTC check

   -1. Check for keyless access/TPMS control unit DTCs with the HDS.

   DTC Description	DTC

   Are any DTCs indicated?

   YES

   Troubleshoot the keyless access/TPMS control unit DTCs.

   NO

   Go to step 7.

7. Backup DTC check

   -1. Check for backup control unit DTCs with the HDS.

   DTC Description	DTC

   Are any DTCs indicated?

   YES

   Troubleshoot the backup control unit DTCs.

   NO

   Go to step 8.

8. Keyless access system check 5

   -1. Select KEYLESS TRANSMITTER from the BODY ELECTRICAL system select menu with the HDS, then select INSPECTION, then KEYLESS CHECK.

   -2. Do the KEYLESS CHECK with the HDS using the all keyless remotes.

   Is KEYLESS ENTRY TRANSMITTER CODE IS RECEIVED indicated?

   YES

   Go to step 9.

   NO

   Do the keyless access remote registration - Refer to: Keyless Access System Registration (2019)  or Keyless Access System Registration , and recheck.

9. Keyless access system check 6

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Remove all the keyless remotes from inside the vehicle. Place the keyless remotes more than 1.5 m (5.0 ft) away from the vehicle.

   -3. Disconnect the electric steering lock 12P connector.

   -4. Reboot the HDS without pressing the engine start/stop button.

   -5. Do the registration of the keyless access/TPMS control unit according to the instructions on the HDS screen.

   -6. Select REGISTRATION from the ONE-PUSH START system select menu with the HDS, then select REPLACE PCU/BACKUP CONTROL/KEYLESS ACCESS CONTROL UNIT.

   -7. Reconnect the electric steering lock 12P connector.

   -8. Take the keyless remote into the vehicle, and clear the PCU DTCs with the HDS.

   -9. Do this procedure 10 times: Turn the vehicle to the ON mode while turning the steering wheel to the left and to the right.

   Does the system change to ON mode?

   YES

   Intermittent failure, the system is OK at this time. Check for loose or poor connection.

   NO

   Go to step 10.

10. Keyless access/TPMS control unit check (substitution)

    -1. Substitute a known-good keyless access/TPMS control unit.

    -2. Do the registration of the keyless access/TPMS control unit according to the instructions on the HDS screen.

    -3. Select REGISTRATION from the ONE-PUSH START system select menu with the HDS, then select REPLACE PCU/BACKUP CONTROL/KEYLESS ACCESS CONTROL UNIT.

    -4. Recheck the system.

    Is the system normal?

    YES

    Replace the original keyless access/TPMS control unit .

    NO

    Replace the steering lock .

11. L-line check

    -1. Do the DLC circuit troubleshooting .

    Is L-line OK?

    YES

    Go to step 12.

    NO

    Repair an L-line wire circuit.

12. Engine start/stop switch operation check

    -1. Do the engine start/stop switch test .

    Is the engine start/stop switch OK?

    YES

    Go to step 13.

    NO

    Replace the engine start/stop switch .

13. Open wire check (SS1+, SS2- lines)

    -1. Disconnect the following connectors.

    Engine start/stop switch 12P connector

    Keyless access/TPMS control unit connector B (36P)

    -2. Check for continuity between test points 1 and 2 respectively.

    Test condition

    Vehicle OFF (LOCK) modeEngine start/stop switch 12P connector: disconnectedKeyless access/TPMS control unit connector B (36P): disconnected

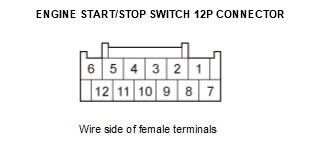

    Test point 1	Engine start/stop switch 12P connector No. 7
    Test point 2	Keyless access/TPMS control unit connector B (36P) No. 10 - Refer to: Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2022 2023)  or Keyless Access/TPMS Control Unit Connector for Inputs and Outputs

    Test point 1	Engine start/stop switch 12P connector No. 6
    Test point 2	Keyless access/TPMS control unit connector B (36P) No. 11 - Refer to: Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2022 2023)  or Keyless Access/TPMS Control Unit Connector for Inputs and Outputs

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The SS1+ and SS2- wires are OK. Go to step 14.

    NO

    Repair an open or high resistance in the wire.

14. Open wire check (+B SMART line) 1

    -1. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) modeEngine start/stop switch 12P connector: disconnectedKeyless access/TPMS control unit connector B (36P): disconnected

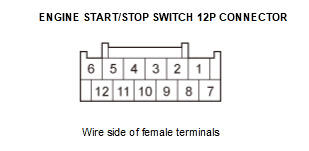

    Test point 1	Engine start/stop switch 12P connector No. 12
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    The +B SMART wire is OK. Go to step 15.

    NO

    Repair an open or high resistance in the wire. If wire is OK, check the under-dash fuse/relay box No. C3 (7.5 A) fuse circuit.

15. Open wire check (SSB GND line)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) modeEngine start/stop switch 12P connector: disconnectedKeyless access/TPMS control unit connector B (36P): disconnected

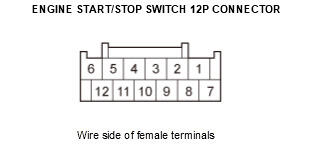

    Test point 1	Engine start/stop switch 12P connector No. 1
    Test point 2	Keyless access/TPMS control unit connector B (36P) No. 25 - Refer to: Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2022 2023)  or Keyless Access/TPMS Control Unit Connector for Inputs and Outputs

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The SSB GND wire is OK. Go to step 17.

    NO

    Repair an open or high resistance in the wire.

16. PCU DTC check

    -1. Check for PCU DTCs with the HDS.

    DTC Description	DTC

    Are any DTCs indicated?

    YES

    Troubleshoot the PCU DTCs.

    NO

    Go to step 17.

17. Open wire check (IG1 VSA, +B BACKUP, +B SMART lines)

    -1. Disconnect the following connector.

    Keyless access/TPMS control unit connector A (32P)

    -2. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) modeEngine start/stop switch 12P connector: disconnectedKeyless access/TPMS control unit connector A (32P): disconnectedKeyless access/TPMS control unit connector B (36P): disconnected
    Test point 1	Keyless access/TPMS control unit connector B (36P) No. 34 - Refer to: Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2022 2023)  or Keyless Access/TPMS Control Unit Connector for Inputs and Outputs
    Test point 2	Body ground

    Test point 1	Keyless access/TPMS control unit connector B (36P) No. 18 - Refer to: Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2022 2023)  or Keyless Access/TPMS Control Unit Connector for Inputs and Outputs
    Test point 2	Body ground

    Test point 1	Keyless access/TPMS control unit connector A (32P) No. 1 - Refer to: Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2022 2023)  or Keyless Access/TPMS Control Unit Connector for Inputs and Outputs
    Test point 2	Body ground

    Is there battery voltage?

    YES

    The IG1 VSA, +B BACKUP, and +B SMART wires are OK. Go to step 18.

    NO

    Repair an open or high resistance in the wire.

18. Open wire check (SGND line)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) modeEngine start/stop switch 12P connector: disconnectedKeyless access/TPMS control unit connector A (32P): disconnectedKeyless access/TPMS control unit connector B (36P): disconnected
    Test point 1	Keyless access/TPMS control unit connector A (32P) No. 17 - Refer to: Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2022 2023)  or Keyless Access/TPMS Control Unit Connector for Inputs and Outputs
    Test point 2	Body ground

    Test point 1	Keyless access/TPMS control unit connector B (36P) No. 36 - Refer to: Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2022 2023)  or Keyless Access/TPMS Control Unit Connector for Inputs and Outputs
    Test point 2	Body ground

    Is there continuity?

    YES

    The SGND wires are OK. Go to step 19.

    NO

    Repair an open or high resistance in the ground wire or poor ground (G405).

19. Open wire check (between keyless access/TPMS control unit and electric steering lock lines)

    -1. Disconnect the following connectors.

    Keyless access/TPMS control unit connector C (20P)

    Electric steering lock 12P connector

    -2. Check for continuity between test points 1 and 2 as shown.

    Test condition

    Vehicle OFF (LOCK) modeEngine start/stop switch 12P connector: disconnectedKeyless access/TPMS control unit connector A (32P): disconnectedKeyless access/TPMS control unit connector B (36P): disconnectedKeyless access/TPMS control unit connector C (20P): disconnectedElectric steering lock 12P connector: disconnected

    Test circuit	Test point 1: Keyless access/TPMS control unit connector B (36P) and C (20P) - Refer to: Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2022 2023)  or Keyless Access/TPMS Control Unit Connector for Inputs and Outputs	Test point 2: Electric steering lock 12P connector
    MTR CUT1	B5	2
    MTR CUT2	B6	4
    ESL PWR	B33	5
    IGN TRX	C3	6
    ESL SW C	B4	9
    ESL SW D	B2	10

    Is there continuity?

    YES

    The wires between the keyless access/TPMS control unit and electric steering lock are not open. Go to step 20.

    NO

    Repair an open or high resistance in the wire.

20. Shorted wire check (between electric steering lock and body ground)

    -1. Check for continuity between the following test points and body ground individually.

    Test condition

    Vehicle OFF (LOCK) modeEngine start/stop switch 12P connector: disconnectedKeyless access/TPMS control unit connector A (32P): disconnectedKeyless access/TPMS control unit connector B (36P): disconnectedKeyless access/TPMS control unit connector C (20P): disconnectedElectric steering lock 12P connector: disconnected

    Connector	Test circuit	Terminal
    Electric steering lock 12P connector	MTR CUT1	2
    	MTR CUT2	4
    	ESL PWR	5
    	IGN TRX	6
    	ESL SW C	9
    	ESL SW D	10

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The wires between the electric steering lock and body ground are OK. Go to step 21.

21. Open wire check (+B SMART line) 2

    -1. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) modeEngine start/stop switch 12P connector: disconnectedKeyless access/TPMS control unit connector A (32P): disconnectedKeyless access/TPMS control unit connector B (36P): disconnectedKeyless access/TPMS control unit connector C (20P): disconnectedElectric steering lock 12P connector: disconnected
    Test point 1	Electric steering lock 12P connector No. 3
    Test point 2	Body ground

    Is there battery voltage?

    YES

    The +B SMART wire is OK. Go to step 22.

    NO

    Repair an open or high resistance in the wire.

22. Open wire check (PGND line)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) modeEngine start/stop switch 12P connector: disconnectedKeyless access/TPMS control unit connector A (32P): disconnectedKeyless access/TPMS control unit connector B (36P): disconnectedKeyless access/TPMS control unit connector C (20P): disconnectedElectric steering lock 12P connector: disconnected
    Test point 1	Electric steering lock 12P connector No. 7
    Test point 2	Body ground

    Is there continuity?

    YES

    The PGND wire is OK. Go to step 23.

    NO

    Repair an open or high resistance in the ground wire or poor ground (G401).

23. keyless access/TPMS control unit check (substitution)

    -1. Substitute a known-good keyless access/TPMS control unit.

    -2. Reconnect these items:

    Keyless access/TPMS control unit connector A (32P)

    Keyless access/TPMS control unit connector B (36P)

    Keyless access/TPMS control unit connector C (20P)

    Electric steering lock 12P connector

    Engine start/stop switch 12P connector

    -3. Do the registration of the keyless access/TPMS control unit according to the instructions on the HDS screen.

    -4. Select REGISTRATION from the ONE-PUSH START system select menu with the HDS, then select REPLACE PCU/BACKUP CONTROL/KEYLESS ACCESS CONTROL UNIT.

    -5. Turn the vehicle to the ON mode while turning the steering wheel to the left and to the right.

    Does the system change to ON mode?

    YES

    Replace the original keyless access/TPMS control unit .

    NO

    Replace the steering lock .
