Keyless Access System Description - Overview

Keyless Access System

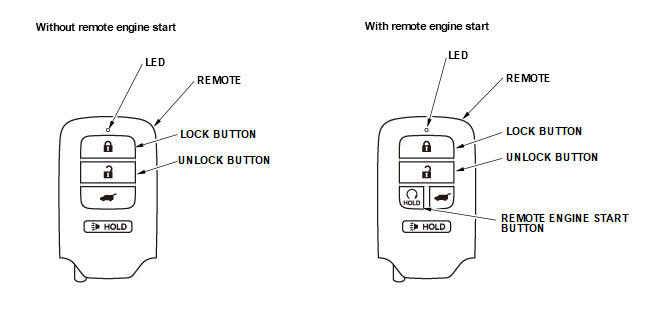

The keyless access system enables you to lock/unlock the doors and the tailgate remotely. The keyless access system uses the LF-RF communication system. It sends the LF signal via the LF antenna, and the keyless access/TPMS control unit receives the RF signal from the remote.Some models come equipped with the remote engine start system.
