Keyless Access System Touch Sensor Circuit Troubleshooting

-1. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter HISTORY DATA.

One-Push - KEYLESS ACCESS CONTROL UNIT - Histry data/Clear

-2. Select HISTORY CLEAR, and back to TEST MODE menu:

NOTE:  When the freeze data is cleared, the information indicates "NOT CONFIRMED".

• DRIVER DOOR UNLOCK SWITCH
• DRIVER DOOR LOCK SWITCH
• FRONT PASSENGER DOOR UNLOCK SWITCH
• FRONT PASSENGER DOOR LOCK SWITCH

-3. Turn the vehicle to the OFF (LOCK) mode.

-4. Get out of the vehicle with the keyless remote, and touch the each door outer handle touch sensor and push the lock button.

-5. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter HISTORY DATA.

One-Push - KEYLESS ACCESS CONTROL UNIT - Histry data/Clear

-6. Recheck HISTORY DATA.

• DRIVER DOOR UNLOCK SWITCH
• DRIVER DOOR LOCK SWITCH
• FRONT PASSENGER DOOR UNLOCK SWITCH
• FRONT PASSENGER DOOR LOCK SWITCH

Is all the information OK?

YES

Intermittent failure, the system is OK at this time.

NO

Go to step 2.

-1. Disconnect the following connectors.

-2. Check for continuity between test points 1 and 2.

Driver's door

Test condition	Vehicle OFF (LOCK) mode Driver's door outer handle 8P connector: disconnected

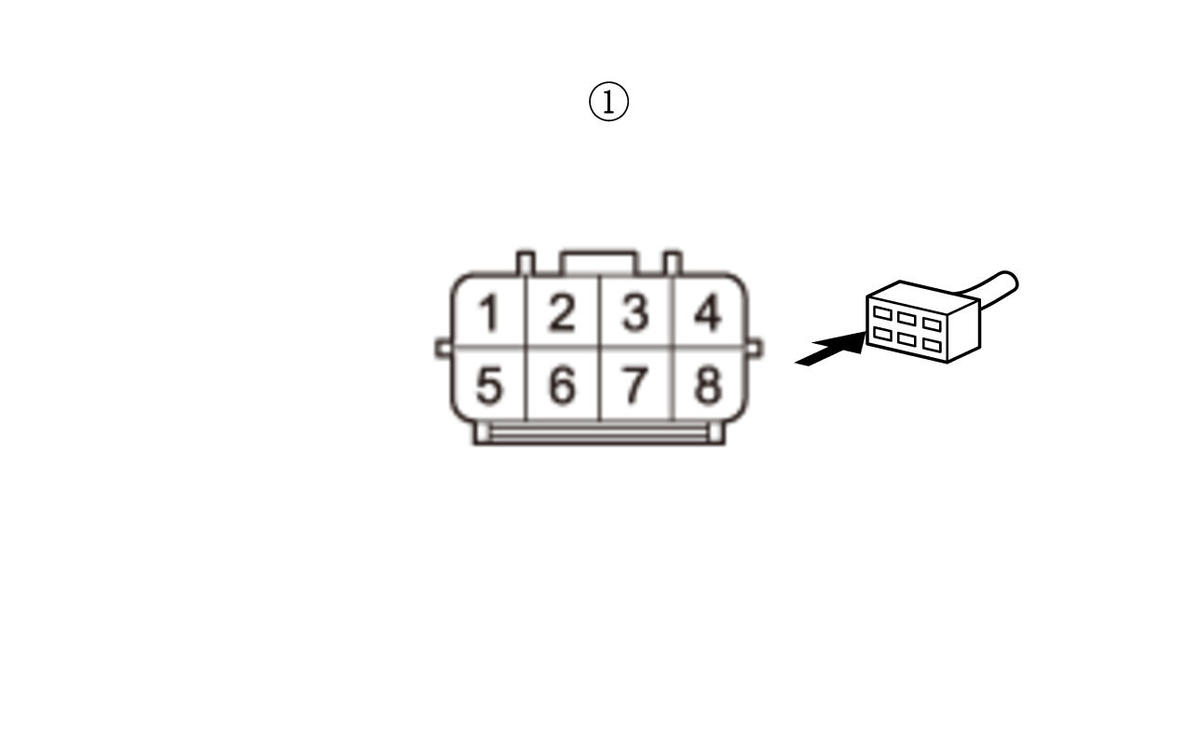

Test point 1	Driver's door outer handle 8P connector (female terminals) No. 8:
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Front passenger's door

Test condition	Vehicle OFF (LOCK) mode Front passenger's door outer handle 8P connector: disconnected
Test point 1	Front passenger's door outer handle 8P connector (female terminals) No. 8:
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

The GND wires are OK. Go to step 3.

NO

Repair an open or high resistance in the ground wire or poor ground (G401, G405).

-1. Measure the voltage between test points 1 and 2.

Driver's door

Test condition	Vehicle OFF (LOCK) mode Driver's door outer handle 8P connector: disconnected
Test point 1	Driver's door outer handle 8P connector (female terminals) No. 4:
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Front passenger's door

Test condition	Vehicle OFF (LOCK) mode Front passenger's door outer handle 8P connector: disconnected
Test point 1	Front passenger's door outer handle 8P connector (female terminals) No. 4:
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Is there battery voltage?

YES

Go to step 4.

NO

Go to step 7.

-1. Disconnect the following connector.

-2. Connect terminals A and B with jumper wires.

Driver's door

Terminal A	Driver's door outer handle 8P connector (female terminals) No. 3:
Terminal B	Body ground

Courtesy of HONDA, U.S.A., INC.

Front passenger's door

Terminal A	Front passenger's door outer handle 8P connector (female terminals) No. 3:
Terminal B	Body ground

Courtesy of HONDA, U.S.A., INC.

-3. Check for continuity between test points 1 and 2 individually.

Is there continuity?

YES

The TS FRDR and TS FRAS wires are not open. Go to step 5.

NO

Repair an open or high resistance in the wire.

-1. Remove the jumper wires from the door outer handle connectors.

-2. Check for continuity between test points 1 and 2.

Is there continuity?

YES

Repair a short to ground in the wire.

NO

The TS FRDR and TS FRAS wires are OK. Go to step 6.

-1. Substitute a known-good door outer handle touch sensor, and recheck.

Is the system OK?

YES

Faulty the original door outer handle touch sensor; replace the door outer handle .

NO

Replace the keyless access/TPMS control unit .

-1. Measure the voltage between test points 1 and 2.

Is there battery voltage?

YES

Repair an open or high resistance in the wire.

NO

The VOUT FRDR and VOUT FRAS wires are OK. Replace the keyless access/TPMS control unit .
