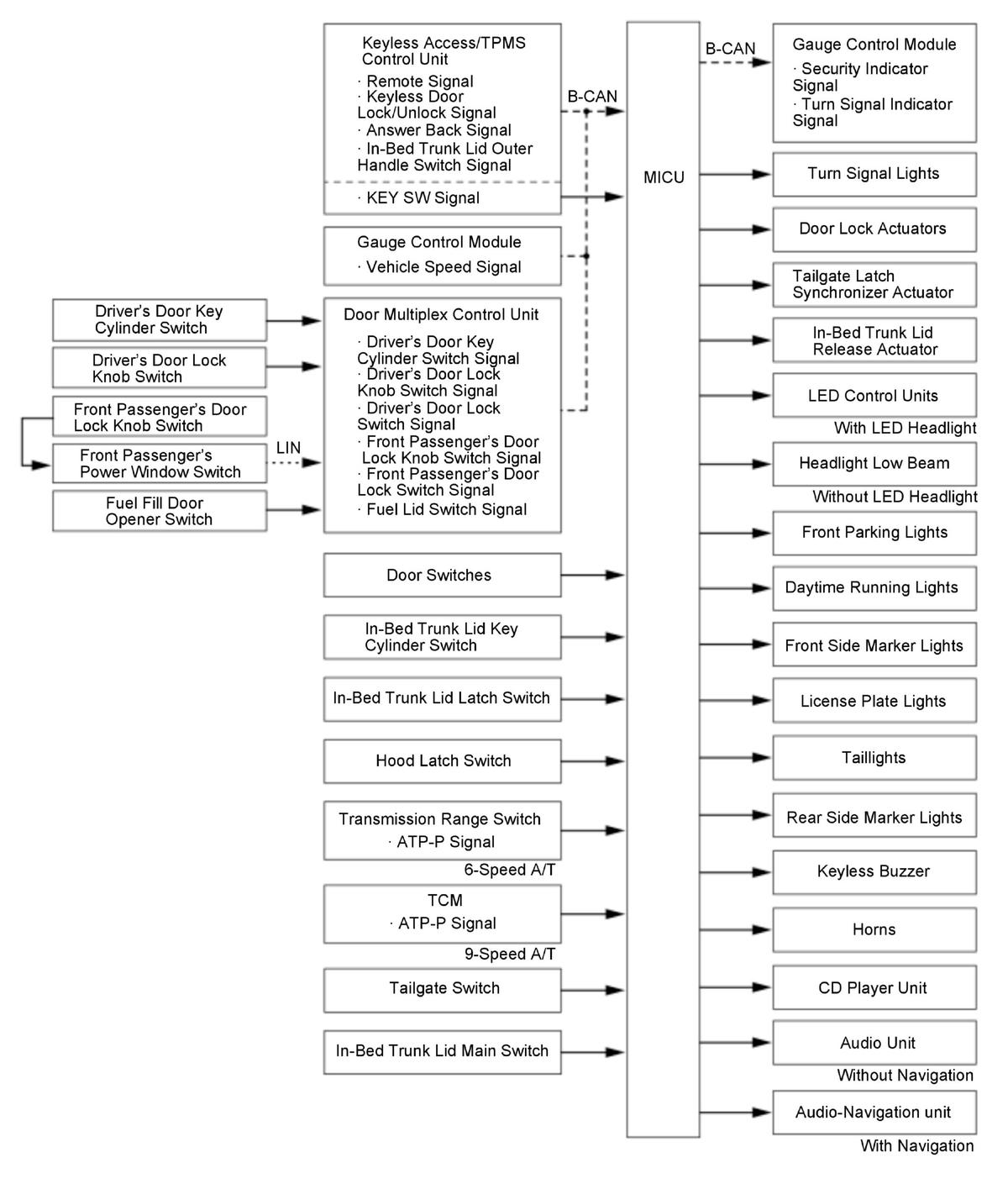

Keyless/Power Door Locks/Security System Description - System Diagram (2017 2018 2019 2020)

For locations of each component on the vehicle, refer to Component Location Index .

Courtesy of HONDA, U.S.A., INC.
