Keyless Access System - Testing & Troubleshooting
>>
Component Location Index
>>

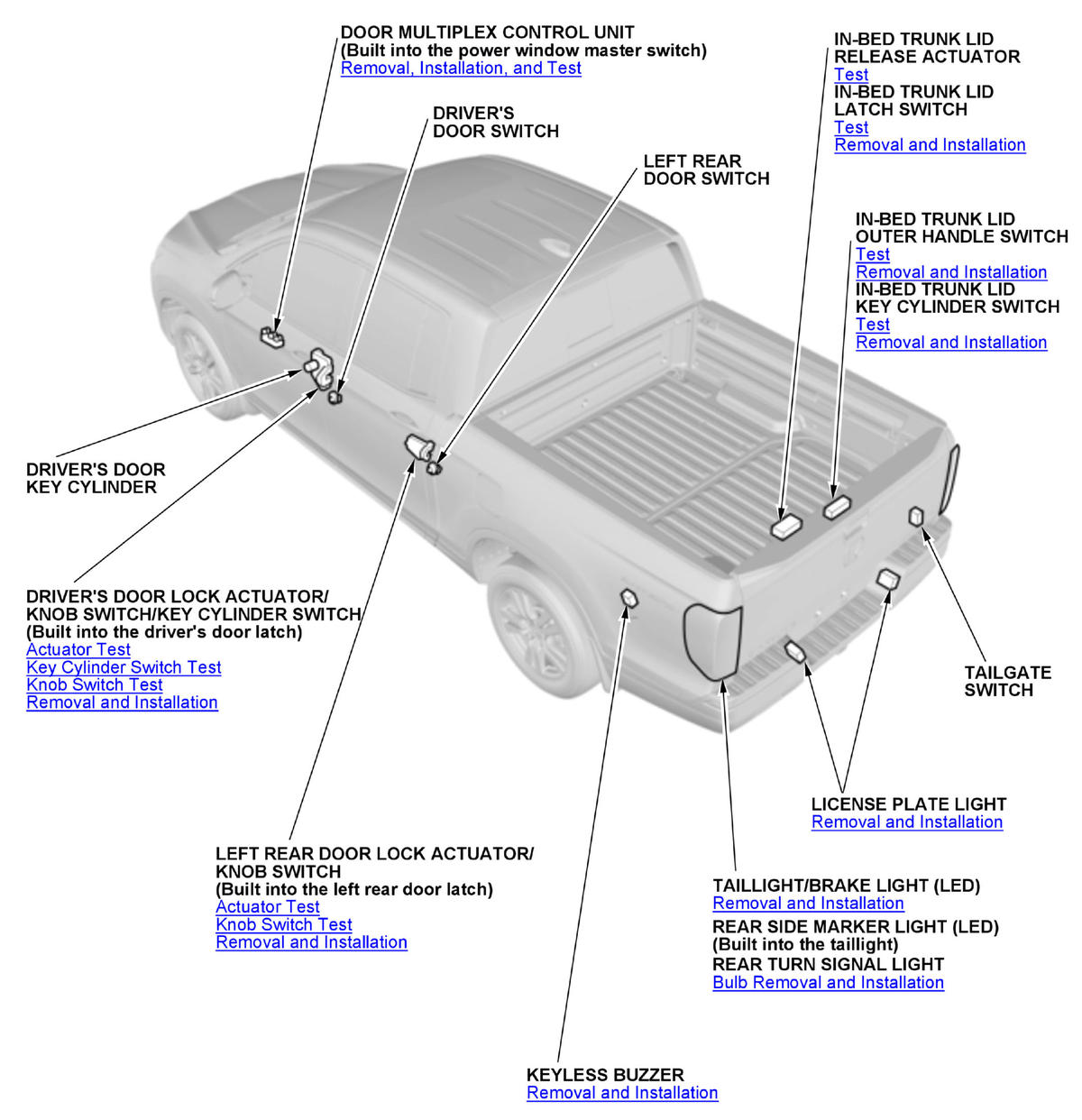

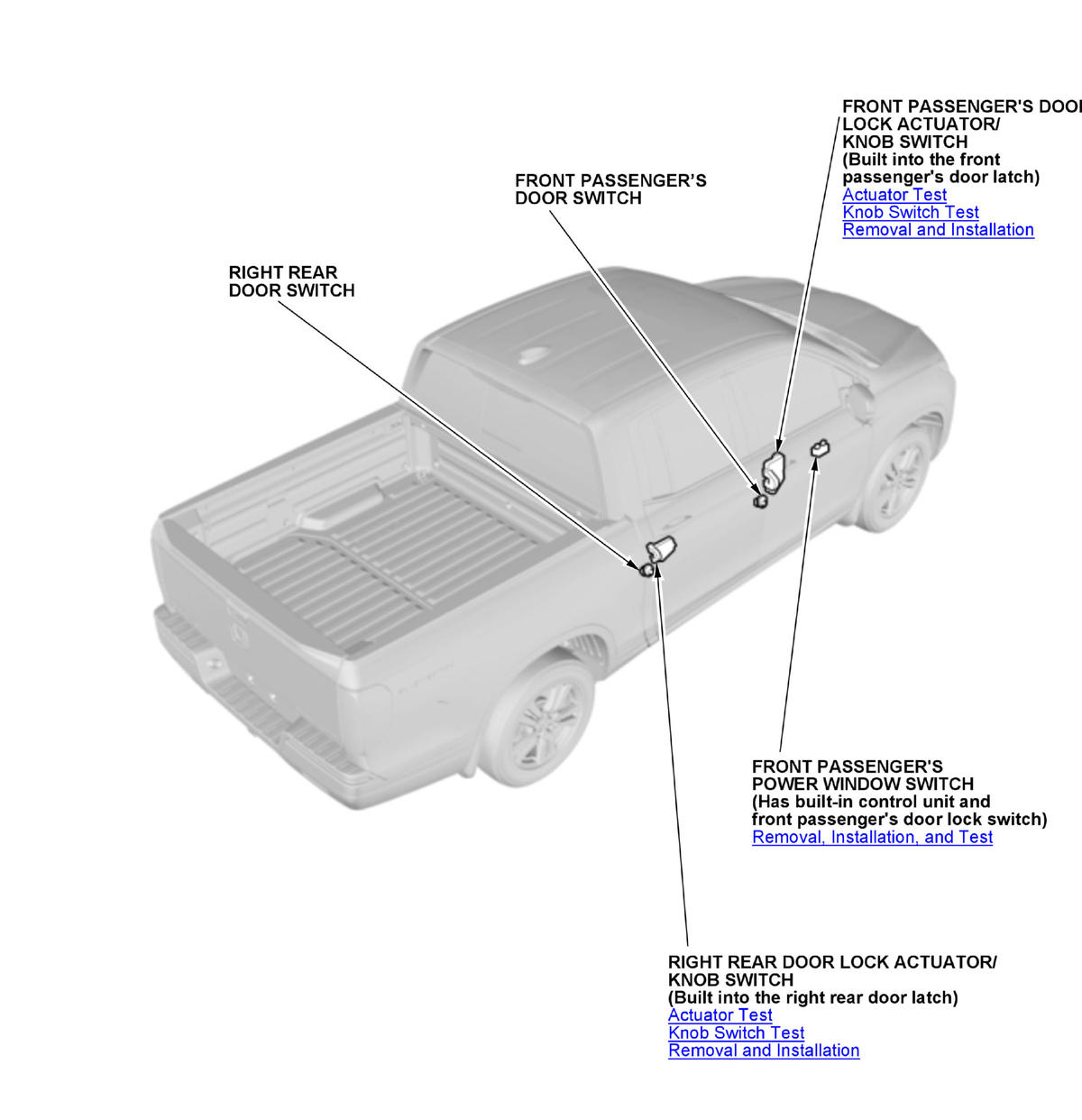

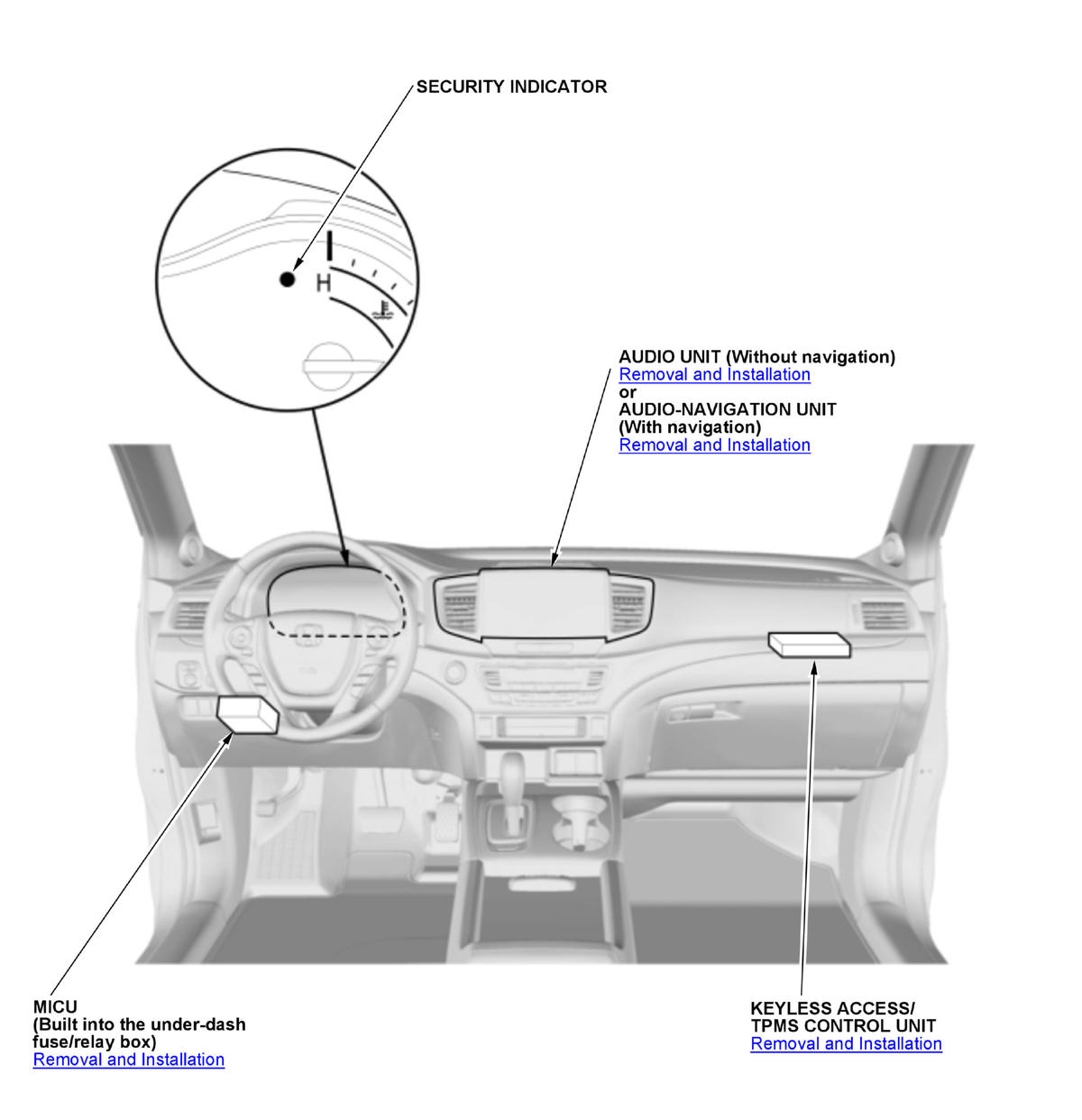

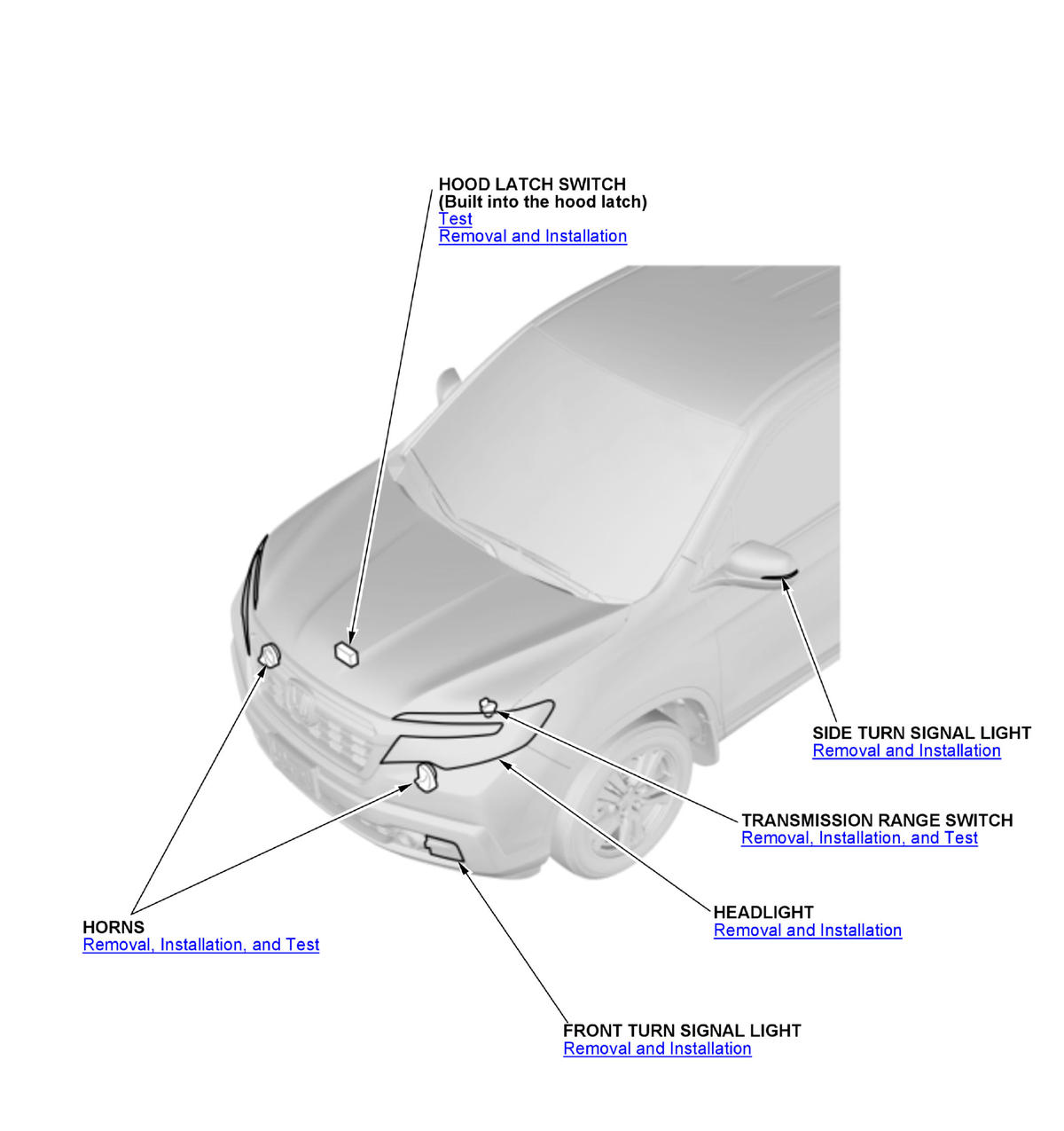

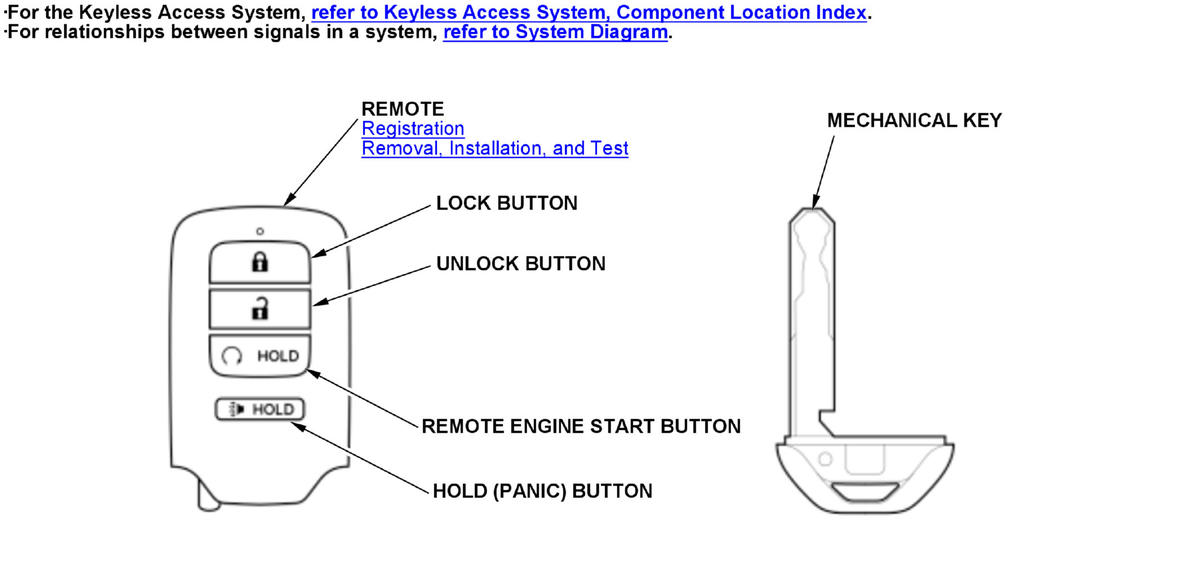

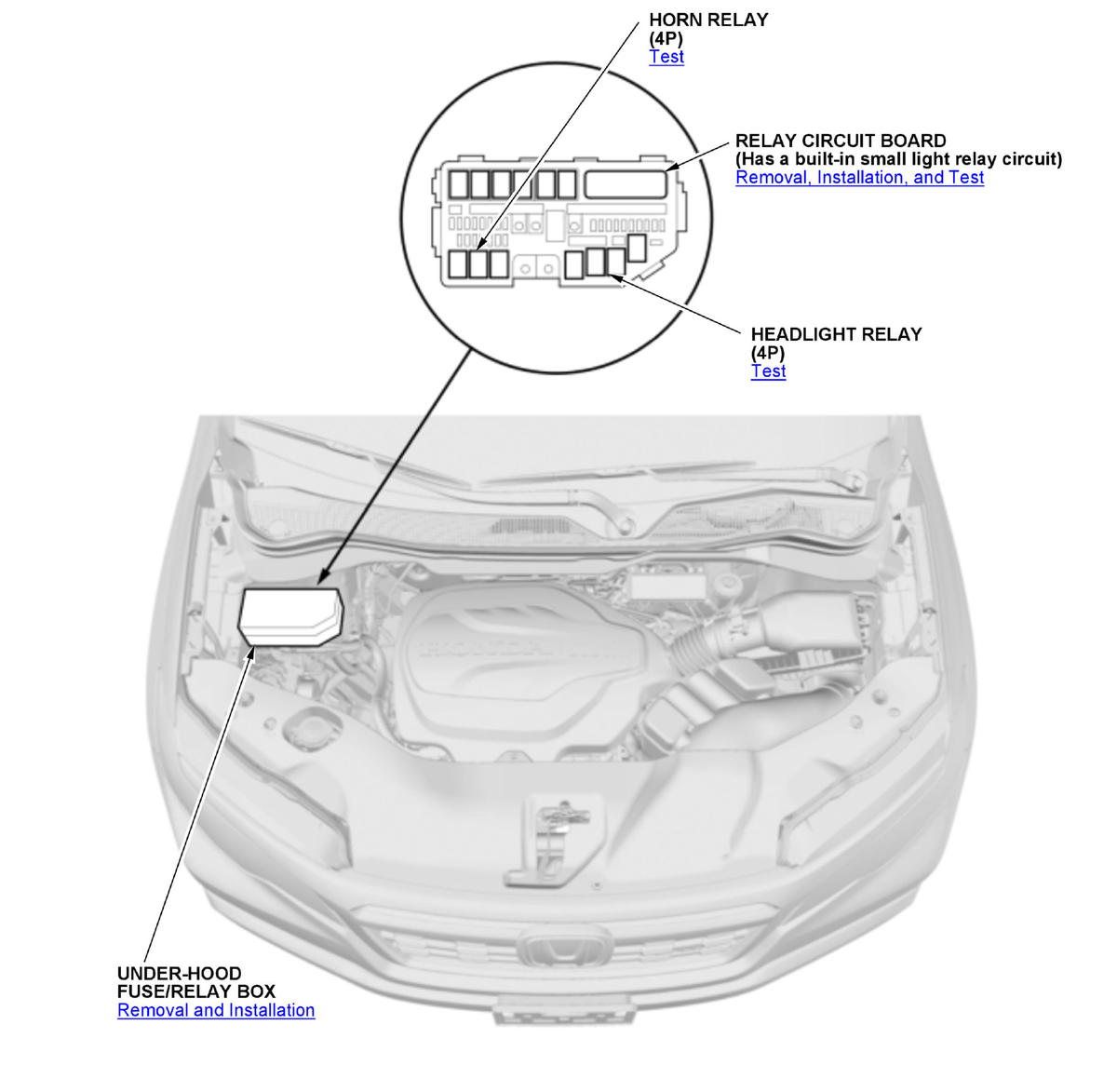

Keyless/Power Door Locks/Security System Component Location Index (2017 2018 2019)
Keyless/Power Door Locks/Security System Component Location Index (2017 2018 2019)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
