Body 6
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

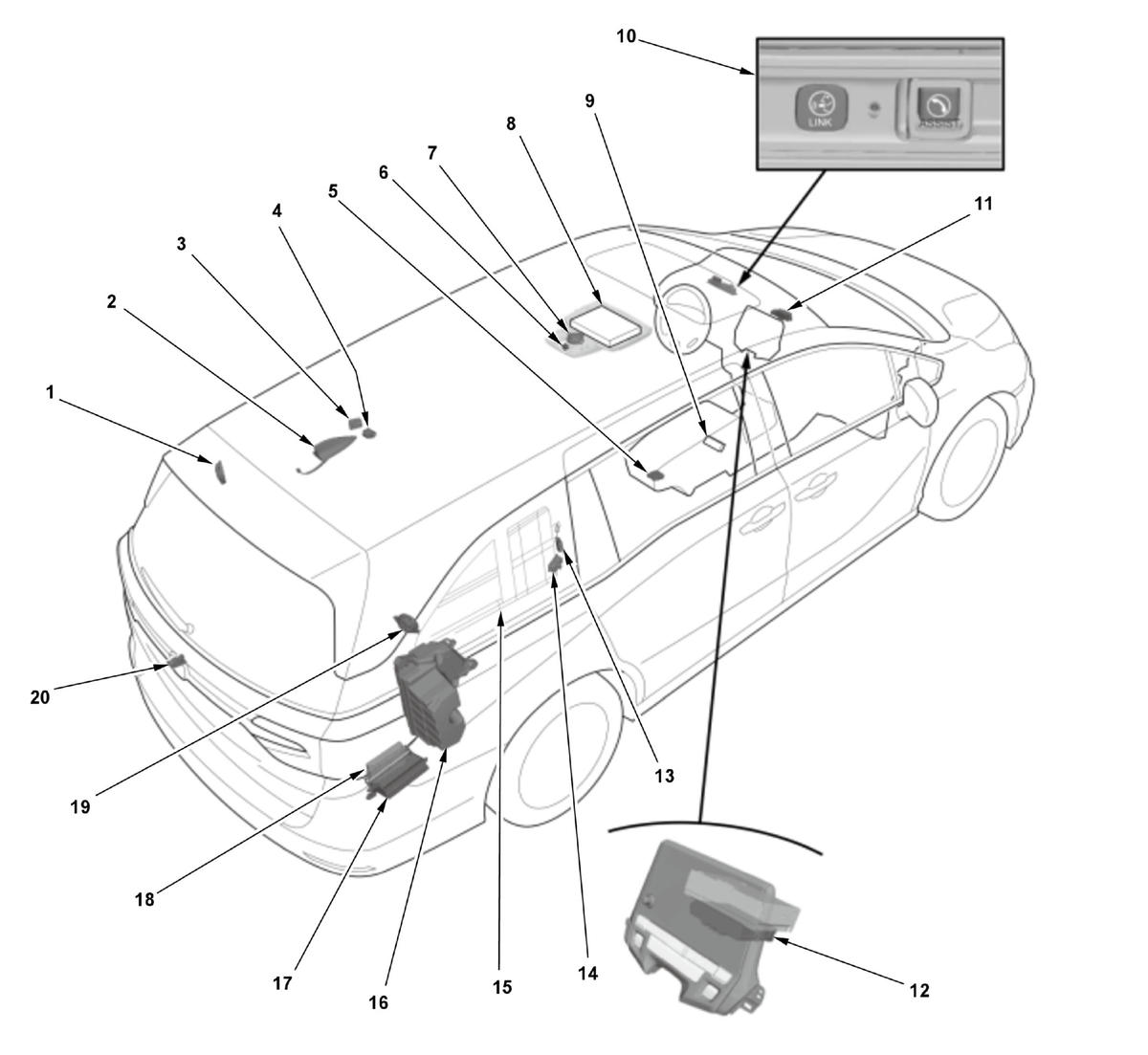

Body 6 Legend
| No. | Component | Related System |
|---|---|---|
| 1 | Left Satellite Speaker | Audio and Visual System |
| 2 | Roof Antenna | |
| 3 | Left RES Auxiliary Jack Assembly | Rear Entertainment System |
| 4 | Rear ANC/Active Sound Control Microphone | Audio and Visual System |
| 5 | USB Charger Unit | Audio and Visual System |
| 6 | Cabin Watch Camera | Rear Entertainment System |
| 7 | Center Roof Speaker | Audio and Visual System |
| 8 | RES Screen | Rear Entertainment System |
| 9 | USB Port A/Auxiliary Jack Assembly | Audio and Visual System |
| 10 | Telematics Switch Module | Telematics System |
| 11 | TEL Antenna | Telematics System |
| 12 | Telematics Control Unit | Telematics System |
| 13 | Window Antenna Amplifier (AM/FM) | Audio and Visual System |
| 14 | Right RES Auxiliary Jack Assembly | Rear Entertainment System |
| 15 | Window Antenna (AM/FM) | Audio and Visual System |
| 16 | Subwoofer | Audio and Visual System |
| 17 | Tuner-Amplifier Unit/Stereo Amplifier | |
| 18 | Tuner Unit | |
| 19 | Right Satellite Speaker | Audio and Visual System |
| 20 | Rearview Camera |
