Cross Traffic Monitor Component Location Index

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

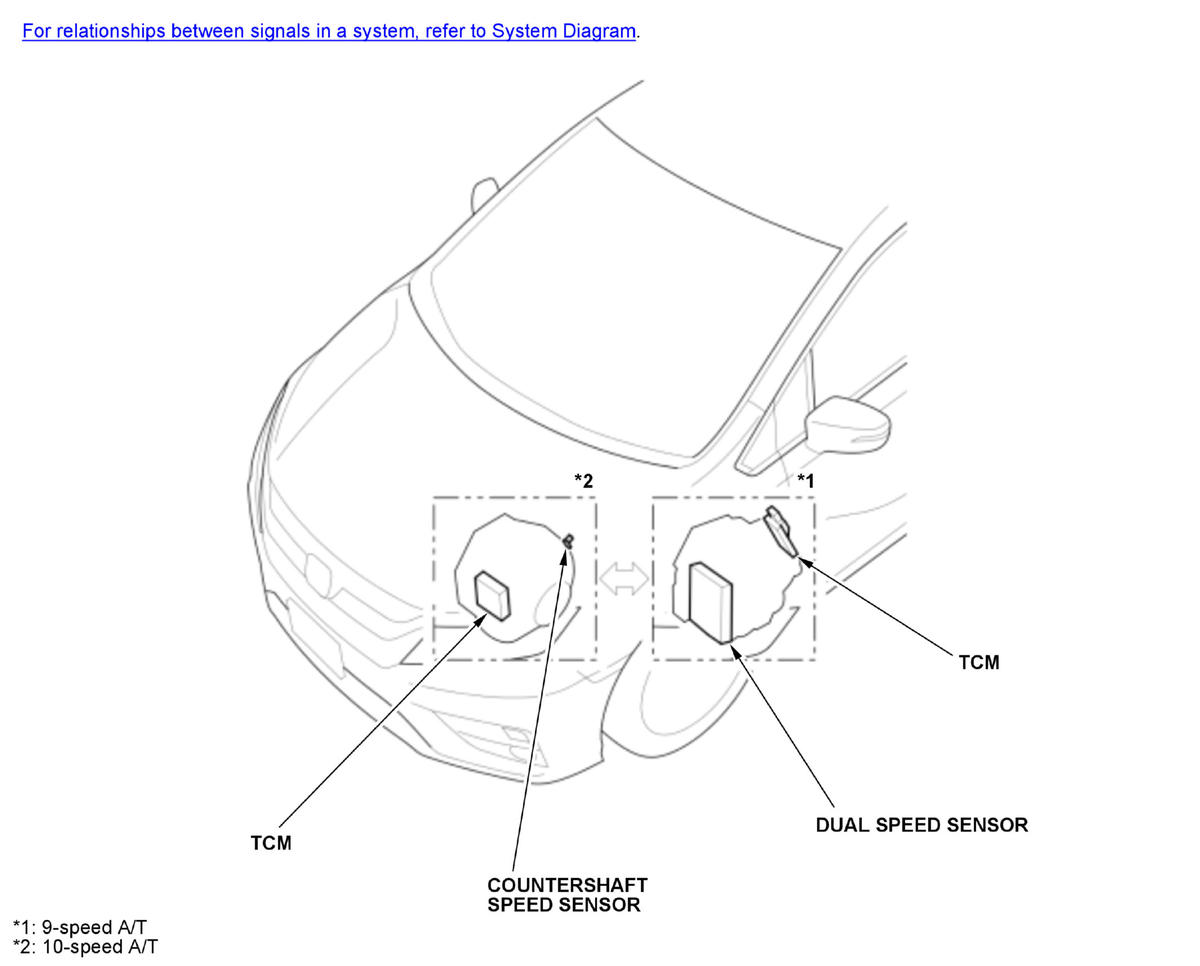

GHH447590Courtesy of HONDA, U.S.A., INC.

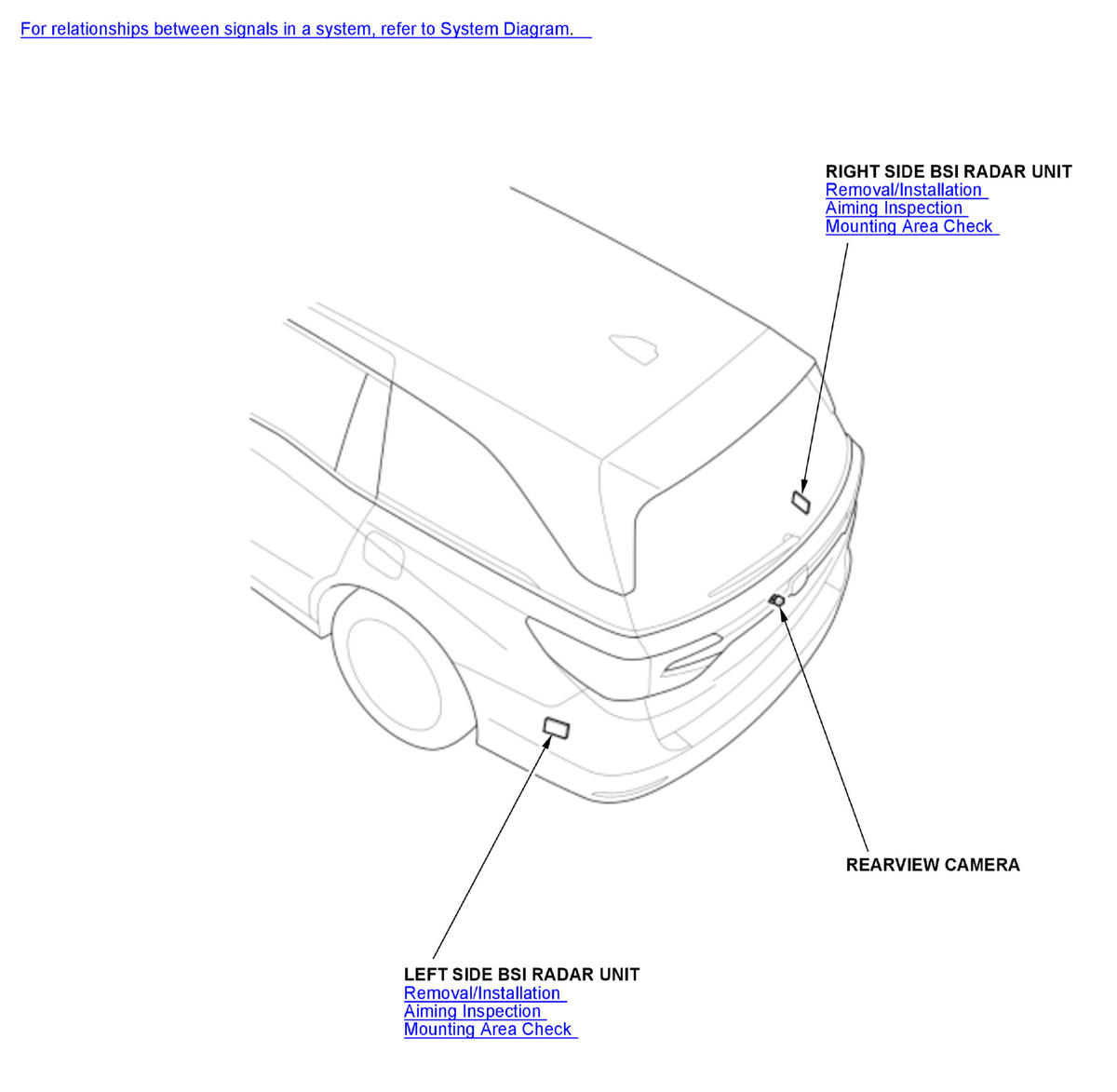

GHH447591Courtesy of HONDA, U.S.A., INC.

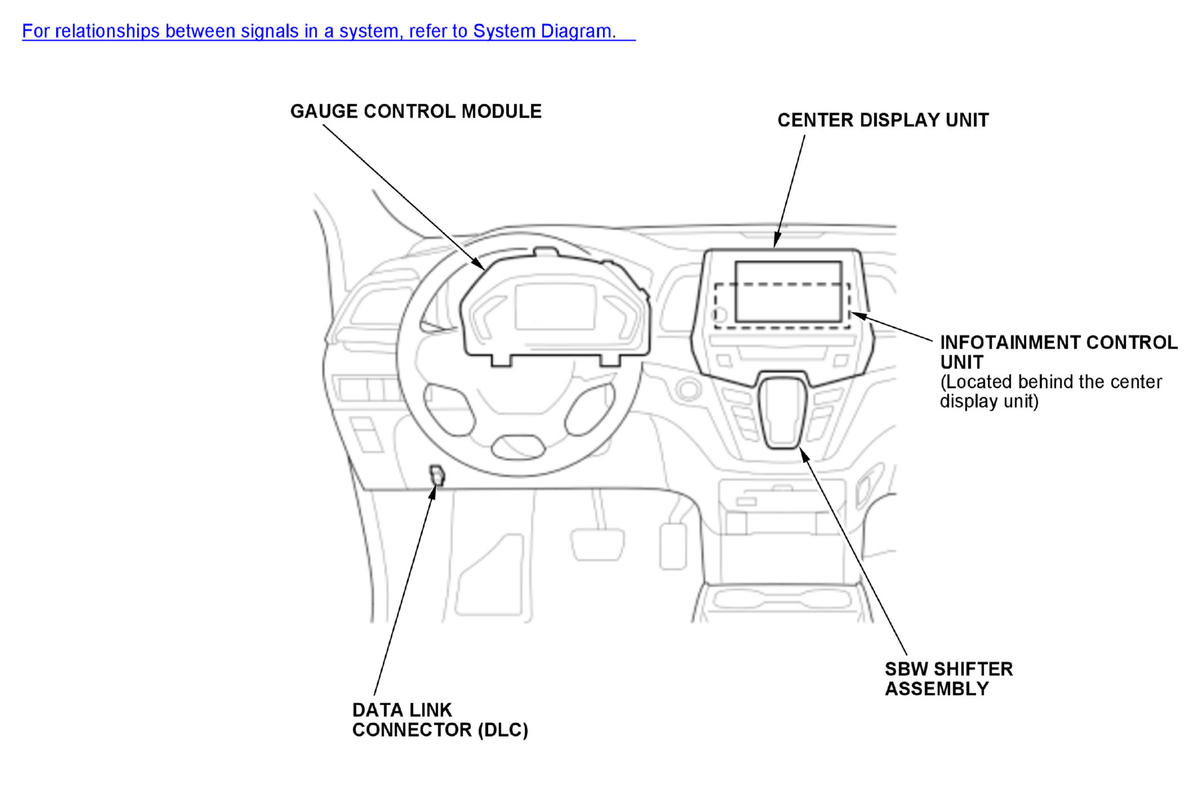

GHH447592Courtesy of HONDA, U.S.A., INC.
