Interior Light Switch Test/Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front individual map light (see FRONT INDIVIDUAL MAP LIGHT TEST/REPLACEMENT  ).
  2. Disconnect the interior light switch 12P connector (A) and the map light 3P connector (B).

    With moonroof

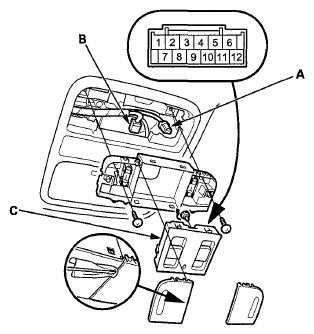

    Fig 1: Identifying Interior Light Switch 12P Connector With Moonroof
    G05966336Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Without moonroof

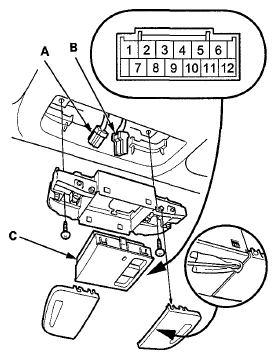

    Fig 2: Identifying Interior Light Switch 12P Connector Without Moonroof
    G05966337Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the interior light switch (C) from the map light housing.
  4. At the interior light switch 12P connector, check for continuity between the terminals in each interior light switch position according to the table below.

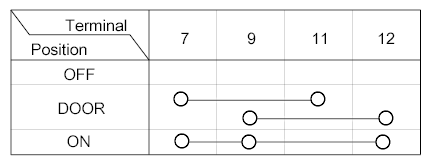

    Fig 3: Identifying Continuity Table
    G00509850Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the continuity is not as specified, replace the interior light switch assembly.
  6. Install the light in the reverse order of removal.
