Front Individual Map Light Test/Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Turn the map light switch OFF.
Carefully pry off the lens (A) with a small screwdriver.
Front Individual

Map Light: 8 W x 2

With moonroof

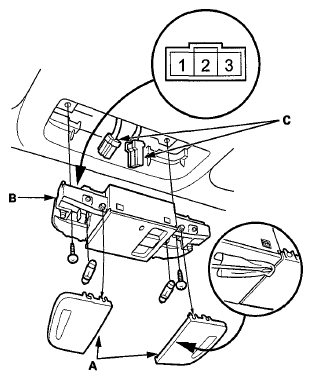

Fig 1: Identifying Connector With Moonroof
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without moonroof

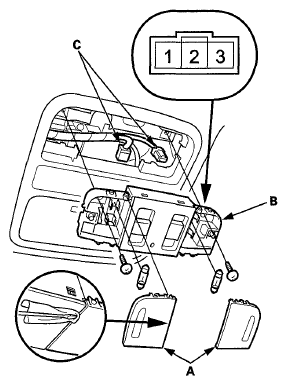

Fig 2: Identifying Connector Without Moonroof
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two mounting screws, then remove the map lights (B).
Disconnect the connectors (C) from the map lights.
Check for continuity between the terminals.

Fig 3: Identifying Continuity Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, check the bulb(s). If the bulb(s) are OK, replace the map light.
Install the light in the reverse order of removal.
