Right Tailgate Upper Latch Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Put on gloves to protect your hands.

Open the tailgate.
NOTE: Opening the tailgate in either swing mode or drop-down mode will allow you to remove the right upper latch.
Remove the tailgate trim panel (see TAILGATE TRIM PANEL REMOVAL/INSTALLATION ).
Disconnect the right upper lock rod (A) from the latch synchronizer (B).

Fig 1: Identifying Right Upper Lock Rod And Latch Synchronizer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, and then remove the right tailgate upper latch (A) with the right upper lock rod (B).

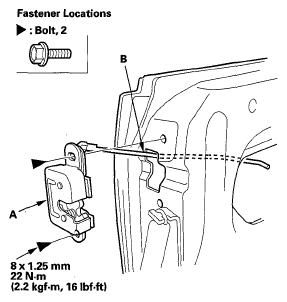

Fig 2: Right Tailgate Upper Latch And Right Upper Lock Rod With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the latch in the reverse order of removal, and note these items:
- Make sure the rod is connected securely.
- The right tailgate upper latch (A) must be synchronized to lock with the right tailgate lower latch (in swing mode) or the left tailgate upper latch (in drop-down mode). If the latch is not synchronized, adjust the latch forward or rearward as needed, using alignment lines (B) on the tailgate as guides.
- Make sure the tailgate opens in drop-down mode by pulling on the upper handle.
- Make sure the tailgate opens in swing mode by pulling on the lower handle.
Fig 3: Identifying Right Tailgate Upper Latch And Alignment Lines
Courtesy of AMERICAN HONDA MOTOR CO., INC.
