Left Tailgate Upper Latch Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Put on gloves to protect your hands.
- Open the tailgate in drop-down mode.
- Remove the tailgate trim panel (see TAILGATE TRIM PANEL REMOVAL/INSTALLATION ).
- Disconnect the left upper lock rod (A), and left upper sensor rod (B) from the latch synchronizer (C).
- Detach the rod clips (D).

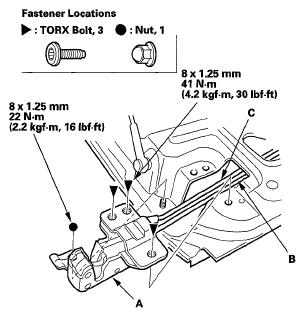

- Remove the bolts securing the left tailgate upper latch (A) using a TORX T50 bit, and remove the mounting nut, then remove the latch with the left upper lock rod (B) and the left upper sensor rod (C).
- Disconnect the left upper lock rod (A) and the left upper sensor rod (B) from the left tailgate upper latch (C).NOTE: Mark the rods to make sure you reinstall them in the correct positions.
- Install the latch in the reverse order of removal, and note these items:
- Make sure each rod is connected securely.
- Apply medium strength liquid thread lock to the mounting nut before installation.
- Before securing the left tailgate upper latch (A), lightly loosen the bolts and nut. While holding the upper handle out, push the tailgate against the body to align the latch opening to the left tailgate upper striker (B) on the body. Tighten the bolts and nut, and recheck.
- Make sure the tailgate lock operates properly.
- Make sure the tailgate opens in drop-down mode by pulling on the upper handle.
- Make sure the lower handle doesn't function with the tailgate opened in drop-down mode.
- Make sure the tailgate swings smoothly. If necessary, do the tailgate position adjustment (see TAILGATE INSTALLATION/ADJUSTMENT ).
