Front Rocker Arm Oil Control Valve Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front rocker arm assembly (see FRONT  ).
  2. Remove the front rocker arm oil control valve (A).

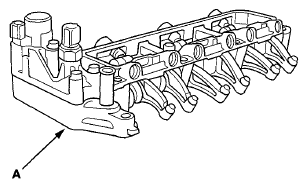

    Fig 1: Identifying Front Rocker Arm Oil Control Valve
    G05961056Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the front rocker arm oil control valve in the reverse order of removal.
