Rocker Arm Assembly Removal: Front

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL  ).
  2. Loosen the locknuts and adjusting screws (A).

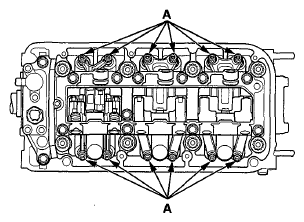

    Fig 1: Identifying Front Rocker Arm Locknuts & Adjusting Screws
    G05960991Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the rocker shaft bridge mounting bolts, the rocker shaft holder mounting bolts, and the rocker arm assembly.
    1. Loosen the rocker shaft bridge mounting bolts and the rocker shaft holder mounting bolts in sequence two turns at a time, to prevent damaging the valves or the rocker arm assembly.
    2. When removing the rocker arm assembly, do not remove the rocker shaft bridge mounting bolts and the rocker shaft holder mounting bolts. The bolts will keep the rocker arms on the shafts.

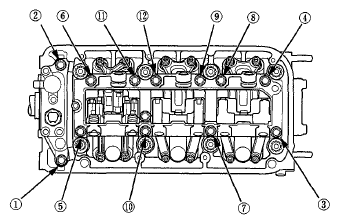

    Fig 2: Identifying Rocker Shaft Holder Mounting Bolt Tightening Sequence
    G05960992Courtesy of AMERICAN HONDA MOTOR CO., INC.
