A/C Condenser Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant with a recovery/recycling charging station (see REFRIGERANT RECOVERY ).
Remove the front grille, (see FRONT BULKHEAD COVER REPLACEMENT ).

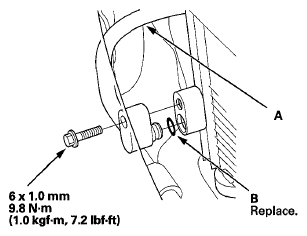

Remove the bolt, then disconnect the discharge hose (A) from the A/C condenser. Remove the O-ring (B).

Fig 1: Discharge Hose & O-Ring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

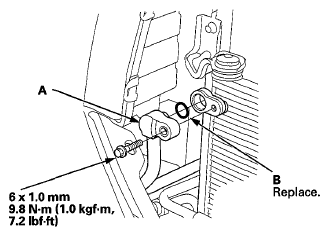

Remove the bolt, then disconnect the front receiver line (A) from the A/C condenser. Remove the O-ring (B).

Fig 2: Front Receiver Line & O-Ring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

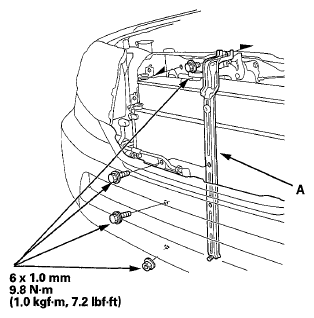

Remove the bolts, nut, and the ATF cooler bracket (A).

Fig 3: ATF Cooler Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

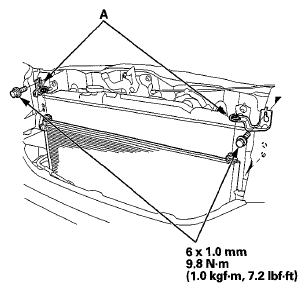

Loosen the bolts, then remove the A/C condenser upper mount brackets (A).

Fig 4: A/C Condenser Upper Mount Brackets Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the A/C condenser (A) by lifting it up. Be careful not to damage the radiator and A/C condenser fins when removing the A/C condenser.

Fig 5: Identifying A/C Condenser
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the A/C condenser in the reverse order of removal, and note these items:
- If you're installing a new A/C condenser, add refrigerant oil (DENSO ND-OIL 8) (see A/C SERVICE TIPS AND PRECAUTIONS ).
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
- Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
- Be careful not to damage the radiator or the A/C condenser fins when installing the A/C condenser.
- Charge the system (see SYSTEM CHARGING ).
