Front Bulkhead Cover Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Take care not to scratch the front bumper and the body.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the clips, then remove the air intake duct (A).

Fig 1: Identifying Air Intake Duct & Clips

Courtesy of AMERICAN HONDA MOTOR CO., INC.

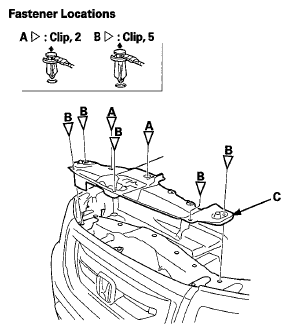

Remove the clips (A, B), then remove the front bulkhead cover (C).

Fig 2: Identifying Front Bulkhead Cover Clips

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Install the cover in the reverse order of removal, and note these items:

If the clips are damaged or stress-whitened, replace them with new ones.
Push the clips into place securely.
