Over-Run Alternator Decoupler (OAD) Pulley Removal and Installation: Installation

Loosely tighten the OAD pulley (A), then insert the alternator OAD pulley holder (B) into the OAD pulley.

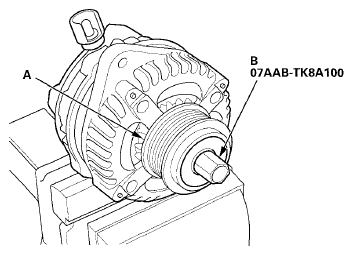

Fig 1: Identifying OAD Pulley And Alternator OAD Pulley Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Place a 10 mm deep socket wrench (A) through center of the alternator OAD pulley holder (B), onto the hex on the end of the alternator shaft.

Fig 2: Holding Alternator OAD Pulley Holder Using Wrench
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Hold the alternator OAD pulley holder with a 17 mm wrench (C), then tighten the alternator shaft counterclockwise to the specified torque.
Specified Torque:

80 N.m (8.2 kgf.m, 59 lbf.ft)
Install the new OAD pulley seal cap (A).
NOTE:
- When installing do not distort the OAD pulley seal cap.
- Make sure to check that the cap is installed securely.

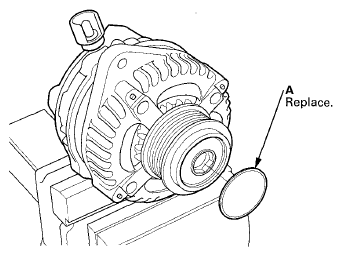

  Fig 3: Identifying OAD Pulley Seal Cap
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the alternator (see INSTALLATION ).
