Alternator Removal and Installation: Installation

Install the alternator (A), then tighten the mounting bolt (B) and the alternator bracket mounting bolt (C).

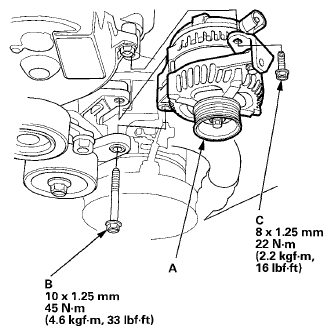

Fig 1: Alternator, Mounting Bolt And Alternator Bracket Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the bolt (A) securing the harness holder.

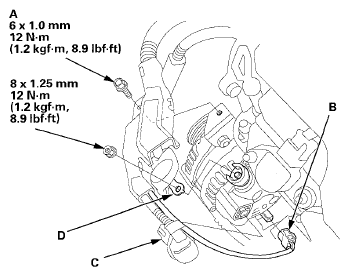

Fig 2: Bolt, A/C Compressor Clutch Connector, Alternator Connector And Alternator Cable With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the A/C compressor clutch connector (B) to the A/C compressor.
Connect the alternator connector (C) and the positive alternator cable (D) to the alternator. Make sure the crimped it side of the ring terminal faces away from the alternator when you connect it.
Install the drive belt (see DRIVE BELT REPLACEMENT ).
Install the holder bracket (A), then install the coolant reservoir (B) and the power steering fluid reservoir (C).

Fig 3: Holder Bracket, Coolant Reservoir And Power Steering Fluid Reservoir With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the engine cover (see step 7 under INSTALLATION ).
Do the battery terminal reconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
Install the air intake duct (see FRONT BULKHEAD COVER REPLACEMENT ).
