Transmission Range Control Module (TRCM): Installation

WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

1.

Install the TRCM and tighten the bolts.
Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

2.

Attach the selector lever cable to the selector lever cable bracket and install the retaining clip bolt.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

3.

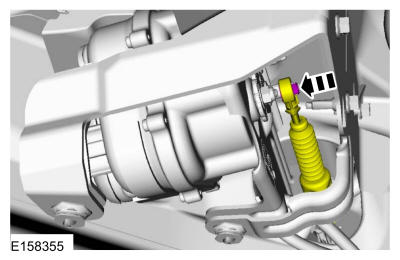

Connect the selector lever cable to the TRCM lever.

Courtesy of FORD MOTOR COMPANY

4.

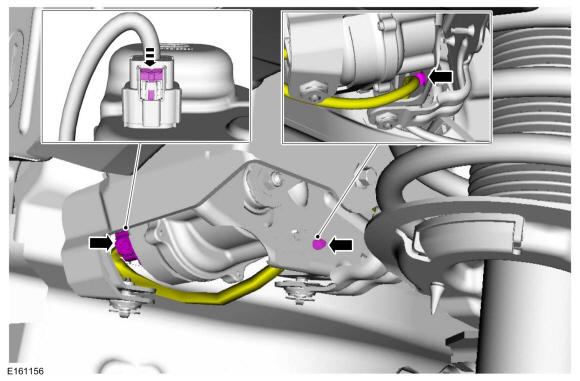

Attach the wiring harness retainer and connect the TRCM electrical connector.

Courtesy of FORD MOTOR COMPANY

5.

Install the RH fender splash shield. Refer to: Fender Splash Shield .

6.

Adjust the selector lever cable.
