Front Engine Mount Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radiator (see RADIATOR AND FAN REPLACEMENT ).
Support the engine with a jack and a wood block under the engine/transmission.
Disconnect the front engine mount actuator connector (A).

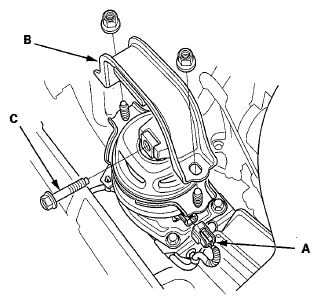

Fig 1: Identifying Front Engine Mount Actuator Connector, Engine Mount Stop & Mount Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the front engine mount stop (B), then remove the front engine mount bolt (C).
Remove the front engine mount (A).

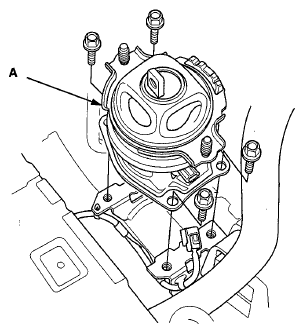

Fig 2: Identifying Front Engine Mount & Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
