Radiator and Fan Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Use fender covers to avoid damaging painted surfaces.
  • To avoid damaging the wiring and terminals, unplug the wiring connectors carefully while holding the connector portion.
  • Mark all wiring and hoses to avoid misconnection. Also, be sure that they do not contact any other wiring or hoses, or interfere with any other parts.
  1. Remove the front grille (see FRONT BULKHEAD COVER REPLACEMENT ).
  2. Raise the vehicle on the lift.
  3. Drain the engine coolant (see COOLANT CHECK  ).
  4. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
  5. Remove the harness clamp (A) from the radiator fan shroud.

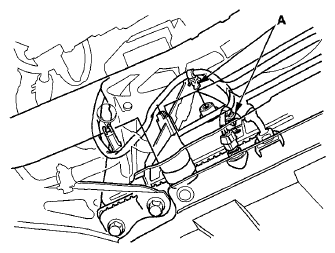

    Fig 1: Identifying Harness Clamp & Radiator Fan
    G05961192Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Unclamp the ATF cooler hose clamps (A) and loosen the A/C condenser fan shroud mounting bolts (B).

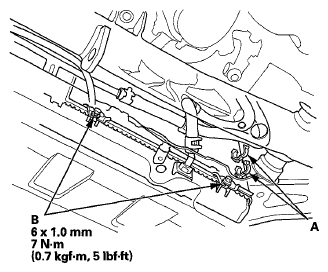

    Fig 2: ATF Cooler Hose Clamps & A/C Condenser Fan Shroud Mounting Bolts With Torque Specifications
    G05961193Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Lower the vehicle on the lift.
  8. Disconnect the radiator fan motor connector (A) and the radiator upper hose (B), then remove the harness clamps (C).

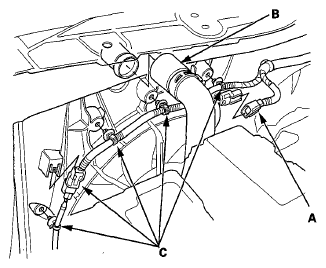

    Fig 3: Identifying Radiator Fan Motor Connector, Radiator Upper Hose & Harness Clamps
    G05961194Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Disconnect the A/C condenser fan motor connector (A) and the coolant reservoir hose (B), then remove the harness clamps (C).

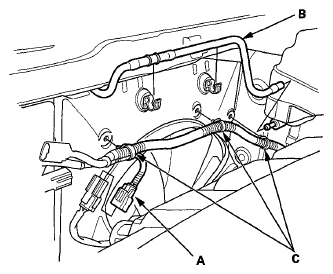

    Fig 4: Identifying A/C Condenser Fan Motor Connector, Coolant Reservoir Hose & Harness Clamps
    G05961195Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Remove the bulkhead bracket mounting bolt/nut (A) and the upper brackets/cushions (B), then disconnect the coolant reservoir hose (C).

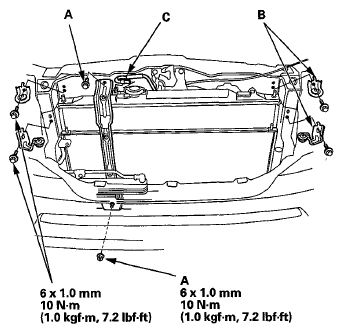

    Fig 5: Bulkhead Bracket Mounting Bolt/Nut, Upper Brackets/Cushions & Coolant Reservoir Hose With Torque Specifications
    G05961196Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Remove the A/C condenser fan shroud assembly (A), then remove the radiator fan shroud assembly (B).
    NOTE: Move the radiator fan shroud assembly toward the A/C compressor side of the vehicle to allow for enough space to lift it up and away from the A/C condenser fan shroud assembly.

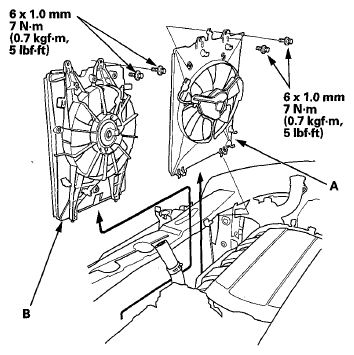

    Fig 6: A/C Condenser Fan Shroud Assembly & Radiator Fan Shroud Assembly With Torque Specifications
    G05961197Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Disassemble the fan shrouds.

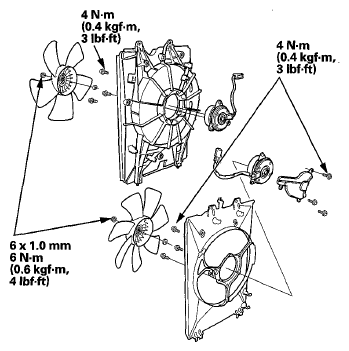

    Fig 7: Fan Shrouds With Torque Specifications
    G05961198Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Raise the vehicle on the lift.
  14. Disconnect the engine coolant temperature (ECT) sensor 2 connector (A), the ATF cooler hoses (B), the lower radiator hose (C) and remove the ATF cooler hose brackets (D).

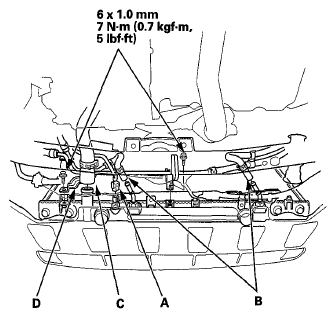

    Fig 8: ECT Sensor 2 Connector, ATF Cooler Hoses, Bracket & Radiator Hose With Torque Specifications
    G05961199Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Lower the vehicle on the lift.
  16. Pull up the radiator assembly (A), then remove the lower mounting cushions (B).

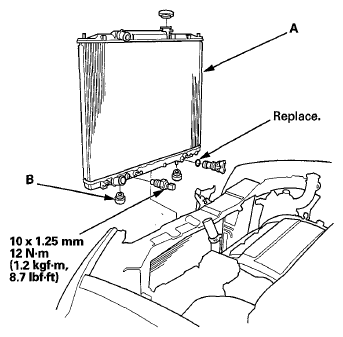

    Fig 9: Radiator Assembly & Lower Mounting Cushions With Torque Specifications
    G05961200Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Remove the related parts from the radiator.
  18. Install the radiator in the reverse order of removal. Make sure the upper and lower mounting cushions are set securely.
  19. Fill the radiator with engine coolant, and bleed the air from the cooling system with the heater valve open (see step 11 on COOLANT REPLACEMENT  ).
  20. Clean up any spilled engine coolant.
  21. Inspect for engine coolant leaks.
